Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD8350-330-RFIXED IND 33UH 1.4A 125 MOHM SMD |
1,145 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.4 A | 2.2A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
|
SD8350-3R9-RFIXED IND 3.9UH 4.5A 19 MOHM SMD |
1,747 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 4.5 A | 6.3A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
33100CFIXED IND 10UH 7.6A 20 MOHM TH |
4,303 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 10 µH | ±15% | 7.6 A | - | Unshielded | 20mOhm Max | 3.4 @ 1MHz | 68MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33221CFIXED IND 220UH 1.6A 102 MOHM TH |
3,271 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 220 µH | ±15% | 1.6 A | - | Unshielded | 102mOhm Max | 3.2 @ 800kHz | 2MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33330CFIXED IND 33UH 4.2A 40 MOHM TH |
2,448 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 33 µH | ±15% | 4.2 A | - | Unshielded | 40mOhm Max | 3.5 @ 1MHz | 24MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33681CFIXED IND 680UH 920MA 183MOHM TH |
1,428 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 680 µH | ±15% | 920 mA | - | Unshielded | 183mOhm Max | 0.64 @ 800kHz | 900kHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
27682CFIXED IND 6.8UH 1.4A 130MOHM SMD |
2,798 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.4 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27103CFIXED IND 10UH 1.1A 150 MOHM SMD |
4,706 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27153CFIXED IND 15UH 900MA 230MOHM SMD |
2,138 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 900 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27223CFIXED IND 22UH 750MA 300MOHM SMD |
3,570 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 750 mA | - | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27333CFIXED IND 33UH 600MA 450MOHM SMD |
2,439 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 600 mA | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27473CFIXED IND 47UH 500MA 700MOHM SMD |
4,484 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 500 mA | - | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27683CFIXED IND 68UH 420MA 900MOHM SMD |
2,103 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 420 mA | - | Unshielded | 900mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27104CFIXED IND 100UH 350MA 1.3OHM SMD |
4,064 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 350 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27154CFIXED IND 150UH 280MA 2 OHM SMD |
1,011 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 280 mA | - | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27224CFIXED IND 220UH 240MA 3 OHM SMD |
3,864 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 240 mA | - | Unshielded | 3Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27334CFIXED IND 330UH 190MA 4.5OHM SMD |
3,289 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 190 mA | - | Unshielded | 4.5Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27474CFIXED IND 470UH 160MA 6.5OHM SMD |
3,854 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 160 mA | - | Unshielded | 6.5Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|
|
27684CFIXED IND 680UH 140MA 8.5OHM SMD |
4,401 |
|
Datasheet |
2700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 140 mA | - | Unshielded | 8.5Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.354" L x 0.303" W (9.00mm x 7.70mm) | 0.065" (1.65mm) |
|

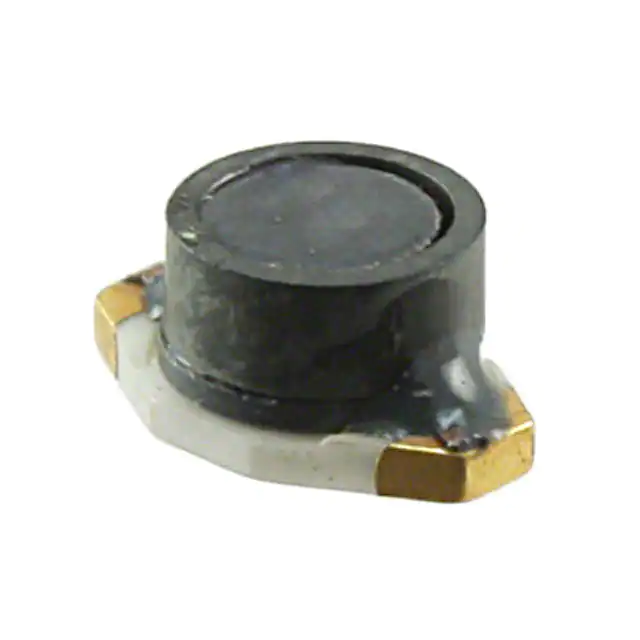

LMXS0704M100DTASFIXED IND 10UH 1A 75 MOHM SMD |
1,442 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
