Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRF0805-221GMIL CERAMIC CHIP INDUCTOR |
4,609 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 2.2 µH | ±2% | 140 mA | - | Unshielded | 5Ohm Max | 15 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-181GMIL CERAMIC CHIP INDUCTOR |
2,064 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 1.8 µH | ±2% | 150 mA | - | Unshielded | 4.5Ohm Max | 15 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-018GMIL CERAMIC CHIP INDUCTOR |
3,492 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 18 nH | ±2% | 750 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-100GMIL CERAMIC CHIP INDUCTOR |
2,270 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 100 nH | ±2% | 490 mA | - | Unshielded | 460mOhm Max | 55 @ 500MHz | 1.25GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-101GMIL CERAMIC CHIP INDUCTOR |
3,875 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 1 µH | ±2% | 195 mA | - | Unshielded | 3Ohm Max | 15 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-120GMIL CERAMIC CHIP INDUCTOR |
3,565 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±2% | 470 mA | - | Unshielded | 510mOhm Max | 45 @ 250MHz | 1.1GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-180GMIL CERAMIC CHIP INDUCTOR |
1,199 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 180 nH | ±2% | 370 mA | - | Unshielded | 800mOhm Max | 45 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-082GMIL CERAMIC CHIP INDUCTOR |
2,301 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 82 nH | ±2% | 520 mA | - | Unshielded | 420mOhm Max | 55 @ 500MHz | 1.33GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-390GMIL CERAMIC CHIP INDUCTOR |
2,911 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 390 nH | ±2% | 230 mA | - | Unshielded | 2Ohm Max | 40 @ 200MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-039GMIL CERAMIC CHIP INDUCTOR |
2,650 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 39 nH | ±2% | 625 mA | - | Unshielded | 290mOhm Max | 60 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-022GMIL CERAMIC CHIP INDUCTOR |
3,519 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 22 nH | ±2% | 720 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-068GMIL CERAMIC CHIP INDUCTOR |
4,644 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 68 nH | ±2% | 540 mA | - | Unshielded | 380mOhm Max | 50 @ 500MHz | 1.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-820GMIL CERAMIC CHIP INDUCTOR |
3,666 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 820 nH | ±2% | 210 mA | - | Unshielded | 2.5Ohm Max | 15 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-150GMIL CERAMIC CHIP INDUCTOR |
3,396 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 700mOhm Max | 45 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-012GMIL CERAMIC CHIP INDUCTOR |
4,984 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 12 nH | ±2% | 870 mA | - | Unshielded | 150mOhm Max | 65 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
10M221KMOLDED UNSHIELDED RF COILS AXIAL |
1,732 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 2.2 µH | ±10% | 395 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M221KLFMOLDED UNSHIELDED RF COILS AXIAL |
4,708 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 2.2 µH | ±10% | 395 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

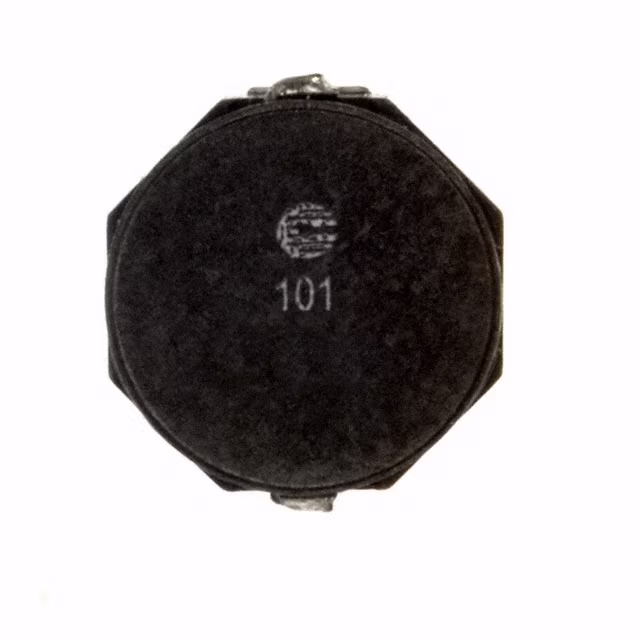

SD8350-101-RFIXED IND 100UH 800MA 360MOHM SM |
1,346 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 800 mA | 1.3A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
|
SD8350-150-RFIXED IND 15UH 2.3A 53 MOHM SMD |
3,606 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.3 A | 2.9A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
|
SD8350-1R8-RFIXED IND 1.8UH 5.5A 14 MOHM SMD |
4,993 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 5.5 A | 9.1A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
