Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812BN821JFIXED IND 820UH 30MA 35 OHM SMD |
4,465 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB102JFIXED IND 1MH 30MA 40 OHM SMD |
1,308 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB391JFIXED IND 390UH 80MA 16 OHM SMD |
4,143 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 80 mA | - | Unshielded | 16Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB471JFIXED IND 470UH 62MA 26 OHM SMD |
3,793 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB561JFIXED IND 560UH 50MA 30 OHM SMD |
1,534 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB681JFIXED IND 680UH 50MA 30 OHM SMD |
3,294 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB821JFIXED IND 820UH 30MA 35 OHM SMD |
2,867 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

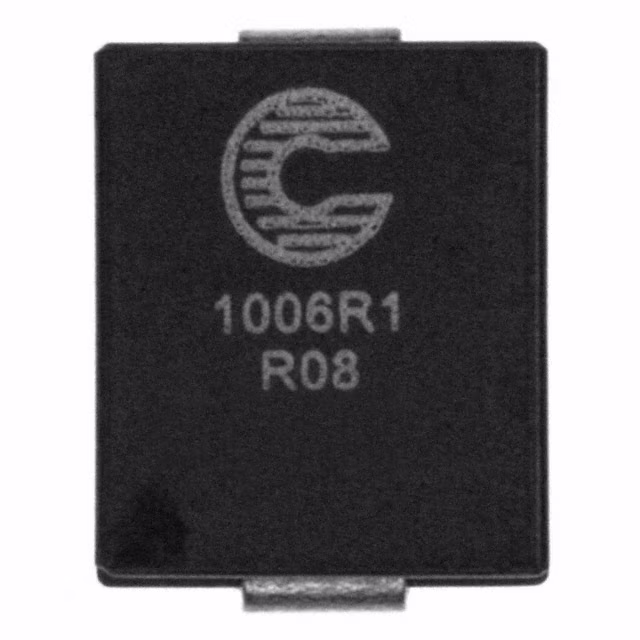

FP1006R1-R08-RFIXED IND 85NH 53A 0.27 MOHM SMD |
3,453 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±10% | 53 A | 100A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.236" (6.00mm) |
|

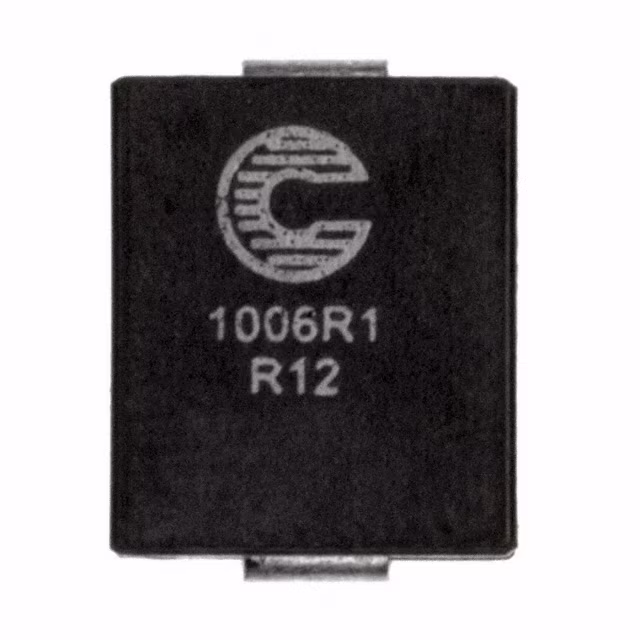

FP1006R1-R12-RFIXED IND 120NH 53A 0.27MOHM SMD |
3,665 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 53 A | 71A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.236" (6.00mm) |
|

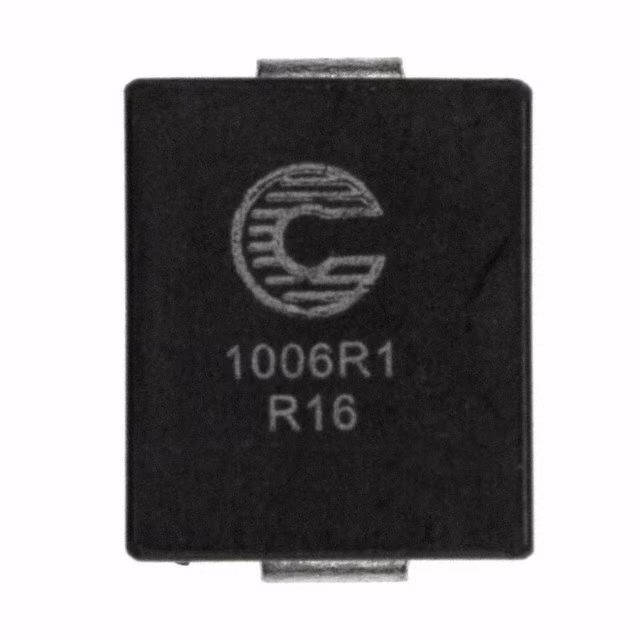

FP1006R1-R16-RFIXED IND 160NH 53A 0.27MOHM SMD |
2,967 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 53 A | 55A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.236" (6.00mm) |
|
FP1006R2-R08-RFIXED IND 85NH 45A 0.36 MOHM SMD |
2,842 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±10% | 45 A | 100A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|

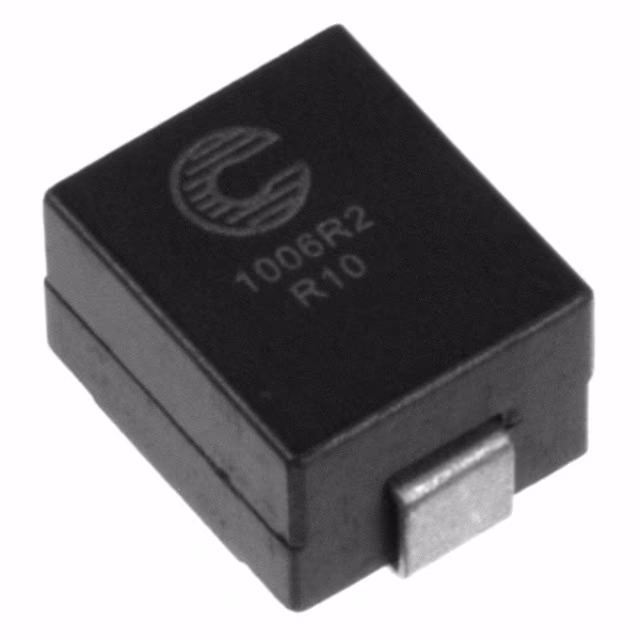

FP1006R2-R10-RFIXED IND 100NH 45A 0.36MOHM SMD |
4,307 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 45 A | 85A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP1006R2-R12-RFIXED IND 120NH 45A 0.36MOHM SMD |
4,010 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 45 A | 71A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|

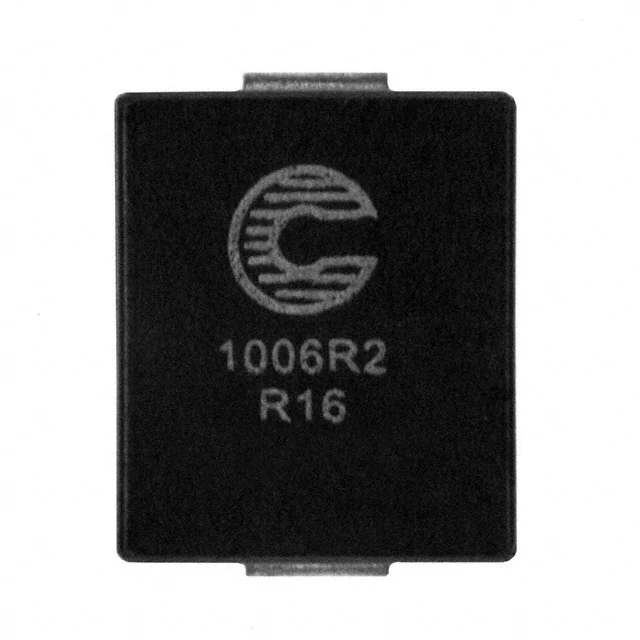

FP1006R2-R16-RFIXED IND 160NH 45A 0.36MOHM SMD |
2,129 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 45 A | 55A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP1006R2-R22-RFIXED IND 220NH 45A 0.36MOHM SMD |
1,617 |
|
Datasheet |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 45 A | 38A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
6306FIXED IND 10MH 100MA 31 OHM TH |
4,698 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 100 mA | - | Unshielded | 31Ohm Max | 95 @ 79.6kHz | 710kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
|
6302FIXED IND 2.5MH 160MA 9 OHM TH |
1,639 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±5% | 160 mA | - | Unshielded | 9Ohm Max | 95 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - |
|
|
6310FIXED IND 50MH 65MA 127 OHM TH |
1,100 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 65 mA | - | Unshielded | 127Ohm Max | 100 @ 79.6kHz | 330kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.630" Dia x 0.875" L (16.00mm x 22.22mm) | - |
|
|
1026R-02KFIXED IND 27NH 2.2A 30 MOHM TH |
3,586 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 27 nH | ±10% | 2.2 A | - | Unshielded | 30mOhm Max | 40 @ 25MHz | 875MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-04KFIXED IND 33NH 2A 35 MOHM TH |
1,628 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 33 nH | ±10% | 2 A | - | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
