Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP1367-2R2MFIXED IND 2.2UH 20A 4.2 MOHM SMD |
2,843 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 20 A | 33A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
SCIHP1367-4R7MFIXED IND 4.7UH 13.5A 11.2 MOHM |
2,693 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 13.5 A | 25A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
SCIHP1367-5R6MFIXED IND 5.6UH 12A 11.5 MOHM |
3,936 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 12 A | 24A | Shielded | 11.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
SCIHP1367-6R8MFIXED IND 6.8UH 11.5A 14.9 MOHM |
2,601 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 11.5 A | 16.5A | Shielded | 14.9mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
SCIHP1367-8R2MFIXED IND 8.2UH 10.5A 16.6 MOHM |
4,200 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 10.5 A | 16A | Shielded | 16.6mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
TMPA 1707SP-1R0MN-D1.0 UH SHIELDED MOLDED INDUCTOR |
4,198 |
|
Datasheet |
TMPA1707SP-D | Nonstandard | Active | Molded | Metal | 1 µH | ±20% | 46 A | 50A | Shielded | 1.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) | |
|
|
TMPA 1707SP-3R3MN-D3.3 UH SHIELDED MOLDED INDUCTOR |
3,389 |
|
Datasheet |
TMPA1707SP-D | Nonstandard | Active | Molded | Metal | 3.3 µH | ±20% | 30 A | 32A | Shielded | 3.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) | |
|
AISR-01-682JFIXED IND 6.8MH 35MA 9.7 OHM TH |
3,353 |
|
Datasheet |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 35 mA | - | Shielded | 9.7Ohm Max | 100 @ 50kHz | 320kHz | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
IMS05STR18KFIXED IND 180NH 1.3A 47 MOHM TH |
1,599 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Phenolic | 180 nH | ±10% | 1.3 A | - | Shielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
PM12651S-R50M-RCFIXED IND 500NH 36A 1.5 MOHM SMD |
4,935 |
|
Datasheet |
PM12651S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 500 nH | ±20% | 36 A | 55A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

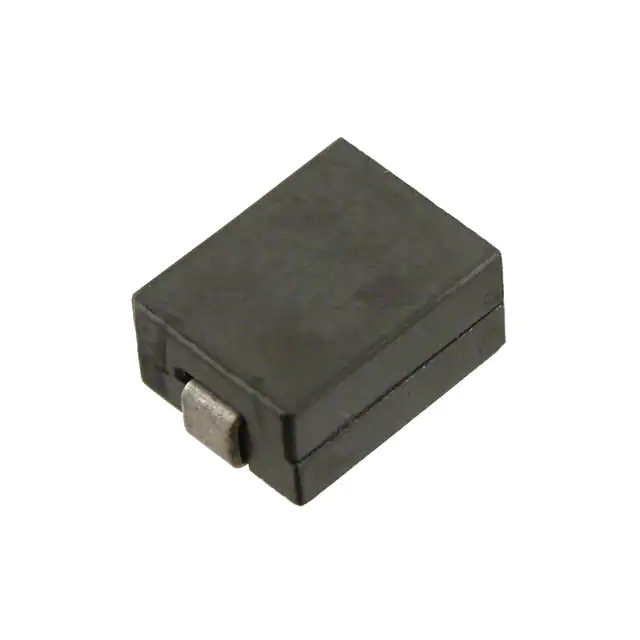

FP1105R1-R20-RFIXED IND 192NH 46A 0.35MOHM SMD |
2,877 |
|
Datasheet |
FLAT-PAC, FP1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 192 nH | ±10% | 46 A | 42A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.193" (4.90mm) |
|
SD52-100-RFIXED IND 10UH 1.11A 121.5 MOHM |
2,581 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.11 A | 1.11A | Shielded | 121.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-1R2-RFIXED IND 1.2UH 2.33A 27.9 MOHM |
3,277 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 2.33 A | 3.14A | Shielded | 27.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-220-RFIXED IND 22UH 860MA 204.2 MOHM |
3,641 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 860 mA | 730mA | Shielded | 204.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-270-RFIXED IND 27UH 730MA 286.4 MOHM |
3,373 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 730 mA | 650mA | Shielded | 286.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-330-RFIXED IND 33UH 700MA 307.4 MOHM |
4,943 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 700 mA | 610mA | Shielded | 307.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-3R5-RFIXED IND 3.5UH 1.73A 50.3 MOHM |
1,598 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 1.73 A | 1.82A | Shielded | 50.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-470-RFIXED IND 47UH 580MA 446.5 MOHM |
4,161 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 580 mA | 500mA | Shielded | 446.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-680-RFIXED IND 68UH 470MA 682.9 MOHM |
3,012 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 470 mA | 420mA | Shielded | 682.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SD52-6R8-RFIXED IND 6.8UH 1.39A 77.7 MOHM |
1,577 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.39 A | 1.28A | Shielded | 77.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
