Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP1B-151FIXED IND 150UH 400MA 1.61OHM SM |
4,077 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 400 mA | 460mA | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
VLF5012ST-3R3M1R7FIXED IND 3.3UH 1.7A 120MOHM SMD |
4,523 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 2A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|

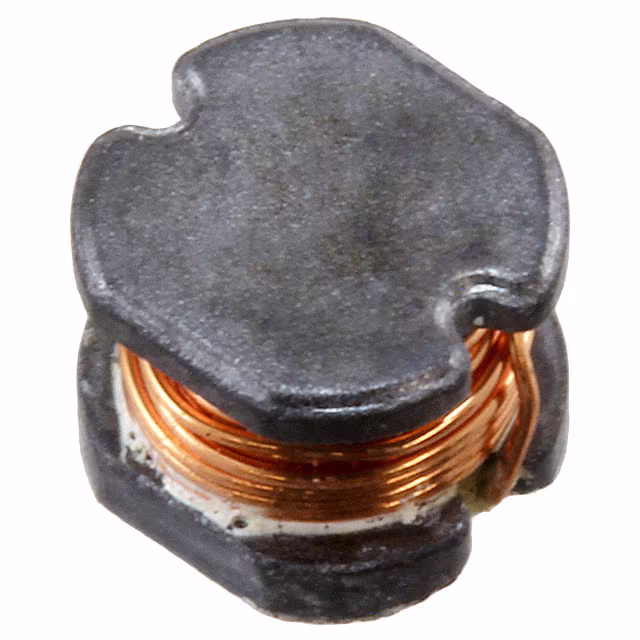

LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD |
1,386 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD |
4,360 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

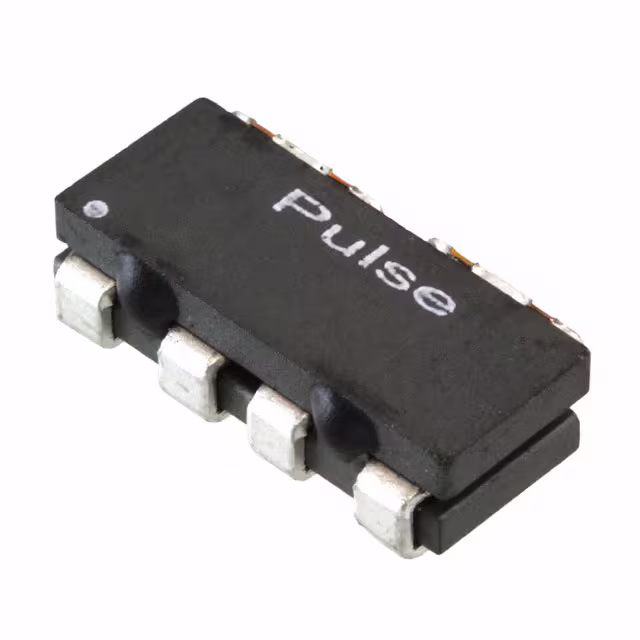

PA1312NLTFIXED IND 310NH 40A 0.5 MOHM SMD |
4,643 |
|
Datasheet |
PA1312NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 310 nH | ±20% | 40 A | - | Shielded | 0.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.720" L x 0.354" W (18.29mm x 9.00mm) | 0.205" (5.20mm) |
|
CLF7045T-471M-CAFIXED IND 470UH 370MA 1.704 OHM |
1,134 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 430mA | Shielded | 1.704Ohm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
IHLP1616BZETR10N01FIXED IND 100NH 16A 5 MOHM SMD |
2,742 |
|
Datasheet |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±30% | 16 A | 35A | Shielded | 5mOhm Max | - | 327MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZETR22N01FIXED IND 220NH 13A 8.6MOHM SMD |
1,311 |
|
Datasheet |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±30% | 13 A | 24A | Shielded | 8.6mOhm Max | - | 151MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZETR47M01FIXED IND 470NH 5.6A 18MOHM SMD |
1,326 |
|
Datasheet |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 5.6 A | 11.5A | Shielded | 18mOhm Max | - | 97MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZET1R0M01FIXED IND 1UH 3.75A 37 MOHM SMD |
1,699 |
|
Datasheet |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 3.75 A | 8.5A | Shielded | 37mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZETR10N11FIXED IND 100NH 12A 4.5MOHM SMD |
3,519 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±20% | 12 A | 12A | Shielded | 4.5mOhm Max | - | 299MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZETR22M11FIXED IND 220NH 9A 7 MOHM SMD |
3,496 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 9 A | 9A | Shielded | 7mOhm Max | - | 158MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZETR47M11FIXED IND 470NH 7A 16 MOHM SMD |
1,924 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 7 A | 7A | Shielded | 16mOhm Max | - | 97MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZET1R0M11FIXED IND 1UH 4.5A 27 MOHM SMD |
2,132 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 4.5 A | 5A | Shielded | 27mOhm Max | - | 64MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZET2R2M11FIXED IND 2.2UH 3.25A 68MOHM SMD |
3,890 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 3.25 A | 3.25A | Shielded | 48mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZET4R7M11FIXED IND 4.7UH 1.7A 105MOHM SMD |
4,056 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 1.7 A | 1.75A | Shielded | 105mOhm Max | - | 29MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRP7028C-R10MFIXED IND 100NH 37.5A 1.7MOHM SM |
3,607 |
|
Datasheet |
SRP7028C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 100 nH | ±20% | 37.5 A | 60A | Shielded | 1.7mOhm Max | 5 @ 100kHz | 196MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028C-R15MFIXED IND 150NH 27A 1.9 MOHM SMD |
4,870 |
|
Datasheet |
SRP7028C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 150 nH | ±20% | 27 A | 50A | Shielded | 1.9mOhm Max | 5 @ 100kHz | 190MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028C-R24MFIXED IND 240NH 23A 3.1 MOHM SMD |
4,530 |
|
Datasheet |
SRP7028C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 240 nH | ±30% | 23 A | 39A | Shielded | 3.1mOhm Max | 10 @ 100kHz | 118MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028C-R25MFIXED IND 250NH 23A 3.1 MOHM SMD |
3,041 |
|
Datasheet |
SRP7028C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 250 nH | ±20% | 23 A | 39A | Shielded | 3.1mOhm Max | 10 @ 100kHz | 118MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
