Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APCI001212804R7T80INDUCTOR POWER |
3,999 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 6.8 A | 11.5A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI001212806R8TY0INDUCTOR POWER |
1,783 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 6.3 A | 6.3A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280561KY0INDUCTOR POWER |
3,921 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 730 mA | 730mA | Shielded | 1.07Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280820M80INDUCTOR POWER |
1,256 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.95 A | 2.7A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280561M80INDUCTOR POWER |
1,519 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 750 mA | 1.05A | Shielded | 1.03Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI001212806R8T80INDUCTOR POWER |
2,826 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 6.6 A | 9.5A | Shielded | 17.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

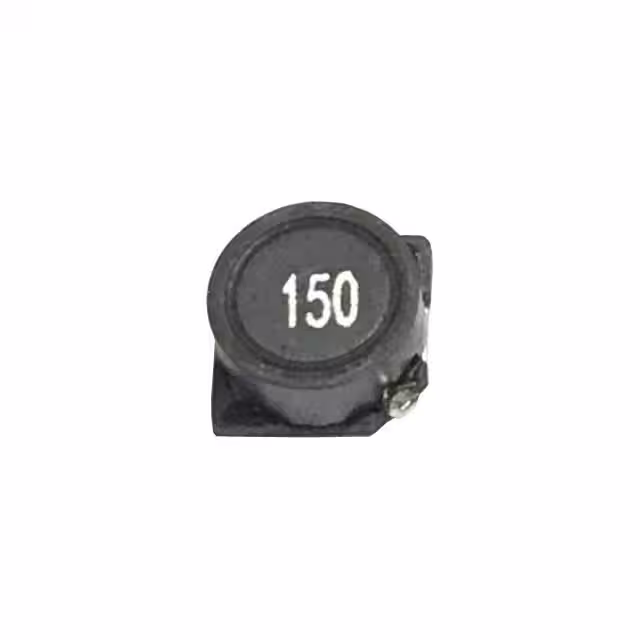

APCF001313756R8T00INDUCTOR POWER |
4,574 |
|
Datasheet |
APCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 5.9 A | 7.2A | Shielded | 13.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
APCI00121280680TY0INDUCTOR POWER |
1,392 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 2.1 A | 2.1A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280681M80INDUCTOR POWER |
4,238 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 700 mA | 1A | Shielded | 1.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280622M80INDUCTOR POWER |
4,013 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 mH | ±20% | 300 mA | 330mA | Shielded | 7.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280561MY0INDUCTOR POWER |
2,354 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 730 mA | 730mA | Shielded | 1.07Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280820TY0INDUCTOR POWER |
2,729 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.95 A | 1.95A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280392M80INDUCTOR POWER |
1,586 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±20% | 370 mA | 450mA | Shielded | 4.7Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280801M80INDUCTOR POWER |
2,745 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 µH | ±20% | 670 mA | 900mA | Shielded | 1.29Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI001212805R6TY0INDUCTOR POWER |
3,964 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.6 A | 6.6A | Shielded | 17.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280622K80INDUCTOR POWER |
2,587 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 mH | ±10% | 300 mA | 330mA | Shielded | 7.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280391M80INDUCTOR POWER |
4,043 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 880 mA | 1.3A | Shielded | 700mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280390T80INDUCTOR POWER |
3,455 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 2.8 A | 4.1A | Shielded | 71mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280332MY0INDUCTOR POWER |
4,148 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 350 mA | 350mA | Shielded | 5.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280391T80INDUCTOR POWER |
1,375 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±30% | 880 mA | 1.3A | Shielded | 700mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
