Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1210EB82NJFIXED IND 82NH 450MA 400MOHM SMD |
2,194 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Wirewound | Non-Magnetic | 82 nH | ±5% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 50MHz | 900MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR10JFIXED IND 100NH 450MA 440MOHM SM |
1,484 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Wirewound | Non-Magnetic | 100 nH | ±5% | 450 mA | - | Unshielded | 440mOhm Max | 30 @ 50MHz | 700MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR12JFIXED IND 120NH 584MA 220MOHM SM |
3,836 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 120 nH | ±5% | 584 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 500MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR15JFIXED IND 150NH 548MA 250MOHM SM |
1,727 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±5% | 548 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 450MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR18JFIXED IND 180NH 518MA 280MOHM SM |
4,130 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 180 nH | ±5% | 518 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 400MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR22JFIXED IND 220NH 484MA 320MOHM SM |
2,467 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±5% | 484 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR27JFIXED IND 270NH 456MA 360MOHM SM |
2,947 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 270 nH | ±5% | 456 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR33JFIXED IND 330NH 453MA 400MOHM SM |
2,333 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±5% | 453 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR39JFIXED IND 390NH 450MA 450MOHM SM |
1,824 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±5% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 250MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR47JFIXED IND 470NH 450MA 500MOHM SM |
1,122 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±5% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 220MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR56JFIXED IND 560NH 450MA 550MOHM SM |
3,140 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±5% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR68JFIXED IND 680NH 450MA 600MOHM SM |
3,334 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±5% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EBR82JFIXED IND 820NH 450MA 670MOHM SM |
2,252 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±5% | 450 mA | - | Unshielded | 670mOhm Max | 30 @ 25.2MHz | 140MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
8230-94-RCFIXED IND 100NH 1.1A 70 MOHM TH |
4,259 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 100 nH | ±10% | 1.1 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 690MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-04-RCFIXED IND 220NH 935MA 140MOHM TH |
1,536 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 220 nH | ±10% | 935 mA | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-18-RCFIXED IND 820NH 380MA 850MOHM TH |
1,906 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 820 nH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-36-RCFIXED IND 4.7UH 320MA 1.2 OHM TH |
3,921 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH |
4,889 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-54-RCFIXED IND 27UH 185MA 3.5 OHM TH |
3,683 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 185 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

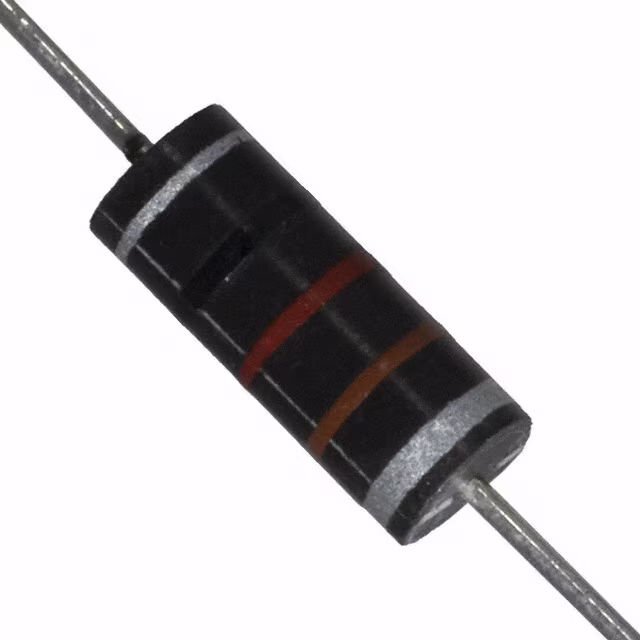

9250A-123-RCFIXED IND 12UH 200MA 2 OHM TH |
2,749 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 12 µH | ±10% | 200 mA | 200mA | Shielded | 2Ohm Max | 55 @ 2.5MHz | 44MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
