Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

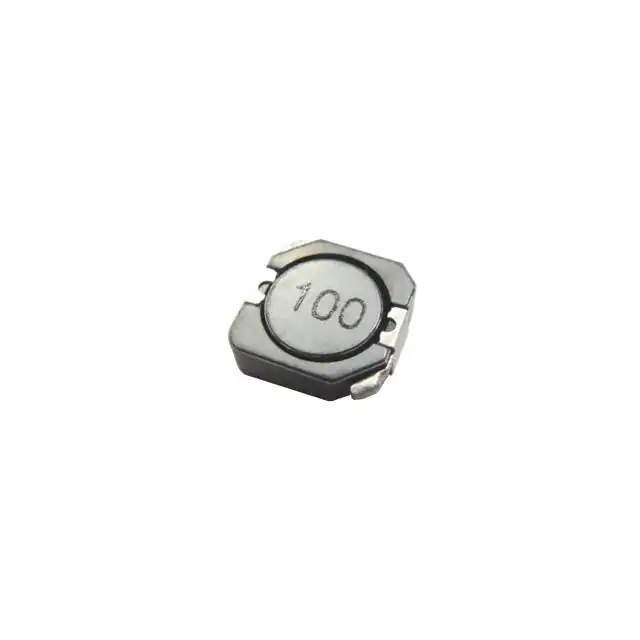

APSA000707584R7T00INDUCTOR POWER |
4,374 |
|
Datasheet |
APSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.6A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.228" (5.80mm) |
|
|
APSA000707581R5T00INDUCTOR POWER |
4,007 |
|
Datasheet |
APSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4 A | 6.2A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.228" (5.80mm) |
|
|
APSA00070758150M00INDUCTOR POWER |
1,913 |
|
Datasheet |
APSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.1A | Shielded | 60.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.228" (5.80mm) |
|
MGV12071R2M-10FIXED IND 1.2UH 30A 2.5 MOHM SMD |
4,544 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1.2 µH | ±20% | 30 A | 48A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MGV1207R10M-10FIXED IND 100NH 60A 0.5 MOHM SMD |
3,983 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±20% | 60 A | 120A | Shielded | 0.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
MPI4020V2-R10-RFIXED IND 100NH 13A 4 MOHM SMD |
1,283 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 nH | ±20% | 13 A | 22A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
|
MPI4020V2-R56-RFIXED IND 560NH 7A 16 MOHM SMD |
1,465 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 7 A | 10A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
|
MPI4020V2-R68-RFIXED IND 680NH 7A 18 MOHM SMD |
2,476 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 7 A | 9A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
|
MPI4020V2-R47-RFIXED IND 470NH 7.5A 14 MOHM SMD |
2,986 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 7.5 A | 9.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
SRP1270-1R8MFIXED IND 1.8UH 24A 3.2 MOHM SMD |
2,505 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.8 µH | ±20% | 24 A | 41A | Shielded | 3.2mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP1270-R32MFIXED IND 320NH 46A 0.9 MOHM SMD |
2,565 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 320 nH | ±20% | 46 A | 65A | Shielded | 0.9mOhm Max | - | 95MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
IMC1812ER101JFIXED IND 100UH 110MA 8 OHM SMD |
4,312 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER121JFIXED IND 120UH 110MA 8 OHM SMD |
4,864 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 120 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER560JFIXED IND 56UH 135MA 5.5 OHM SMD |
2,386 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 56 µH | ±5% | 135 mA | - | Unshielded | 5.5Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER680JFIXED IND 68UH 130MA 6 OHM SMD |
4,338 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±5% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER820JFIXED IND 82UH 120MA 7 OHM SMD |
1,534 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 82 µH | ±5% | 120 mA | - | Unshielded | 7Ohm Max | 50 @ 2.52MHz | 8MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV101JFIXED IND 100UH 110MA 8 OHM SMD |
1,654 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV121JFIXED IND 120UH 110MA 8 OHM SMD |
2,671 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 120 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV560JFIXED IND 56UH 135MA 5.5 OHM SMD |
3,394 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 56 µH | ±5% | 135 mA | - | Unshielded | 5.5Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV680JFIXED IND 68UH 130MA 6 OHM SMD |
3,958 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±5% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
