Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM74SB-121K-RCFIXED IND 120UH 490MA 680MOHM SM |
3,758 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 490 mA | 630mA | Shielded | 680mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-151K-RCFIXED IND 150UH 440MA 940MOHM SM |
3,678 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 440 mA | 560mA | Shielded | 940mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-180M-RCFIXED IND 18UH 1.29A 100MOHM SMD |
2,115 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.29 A | 1.55A | Shielded | 100mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-181K-RCFIXED IND 180UH 400MA 1 OHM SMD |
2,542 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 400 mA | 520mA | Shielded | 1Ohm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-220M-RCFIXED IND 22UH 1.12A 130MOHM SMD |
1,367 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.12 A | 1.47A | Shielded | 130mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-221K-RCFIXED IND 220UH 360MA 1.18OHM SM |
2,209 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 360 mA | 550mA | Shielded | 1.18Ohm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-270M-RCFIXED IND 27UH 1.06A 160MOHM SMD |
1,944 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.06 A | 1.35A | Shielded | 160mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-271K-RCFIXED IND 270UH 330MA 1.3OHM SMD |
2,093 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 330 mA | 530mA | Shielded | 1.3Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-330L-RCFIXED IND 33UH 970MA 180MOHM SMD |
3,633 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 970 mA | 1.16A | Shielded | 180mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-390L-RCFIXED IND 39UH 910MA 180MOHM SMD |
2,888 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 910 mA | 1.1A | Shielded | 180mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-470L-RCFIXED IND 47UH 800MA 270MOHM SMD |
2,541 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 800 mA | 950mA | Shielded | 270mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-820L-RCFIXED IND 82UH 620MA 430MOHM SMD |
3,040 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 620 mA | 720mA | Shielded | 430mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-560L-RCFIXED IND 56UH 760MA 290MOHM SMD |
2,578 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 760 mA | 890mA | Shielded | 290mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM74SB-680L-RCFIXED IND 68UH 680MA 330MOHM SMD |
2,772 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 680 mA | 760mA | Shielded | 330mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|

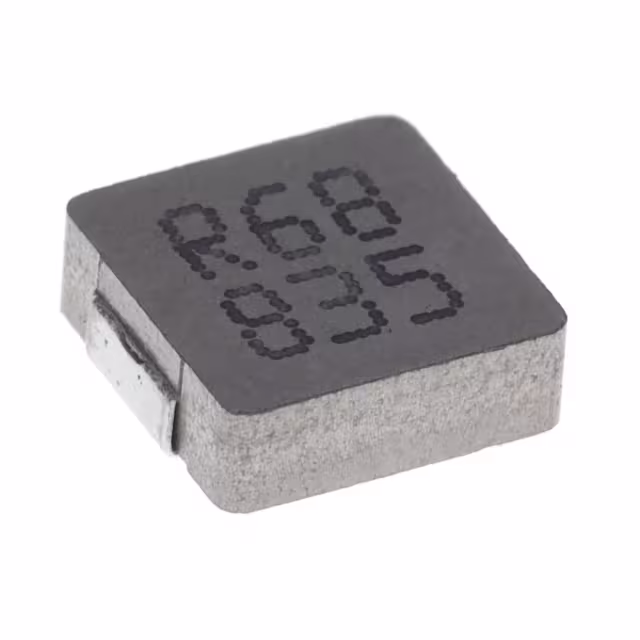

0624CDMCCDS-R68MCFIXED IND 680NH 15A 7 MOHM SMD |
2,182 |
|
Datasheet |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 15 A | 18.8A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
CTCH654F-330K33UH RADIAL LEAD FIXED INDUCTOR |
1,855 |
|
Datasheet |
CTCH654F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 33 µH | ±10% | - | 740mA | Unshielded | 270mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.197" (5.00mm) |
|
SRU3028-680YFIXED IND 68UH 240MA 1.4 OHM SMD |
1,071 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 240 mA | 280mA | Shielded | 1.4Ohm | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
CDRH6D28NP-8R6NCFIXED IND 8.6UH 1.85A 58MOHM SMD |
1,128 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.6 µH | ±30% | 1.85 A | - | Shielded | 58mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
LQH31HNR29J03LFIXED IND 290NH 420MA 221MOHM SM |
4,321 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±5% | 420 mA | - | Unshielded | 221mOhm Max | 60 @ 100MHz | 360MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR61J03LFIXED IND 610NH 250MA 624MOHM SM |
1,223 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 610 nH | ±5% | 250 mA | - | Unshielded | 624mOhm Max | 60 @ 100MHz | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
