Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDPH45D16FHF-120MCINDUCTOR |
2,652 |
|
Datasheet |
CDPH45D16F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.05 A | 1.2A | Shielded | 233mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.071" (1.80mm) |
|
|
CDPH45D16FHF-150MCINDUCTOR |
2,560 |
|
Datasheet |
CDPH45D16F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 900 mA | 1.1A | Shielded | 341mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.071" (1.80mm) |
|
|
CDPH45D16FHF-180MCINDUCTOR |
3,845 |
|
Datasheet |
CDPH45D16F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 900 mA | 900mA | Shielded | 375mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.071" (1.80mm) |
|
|
CDPH45D16FHF-8R2MCINDUCTOR |
2,543 |
|
Datasheet |
CDPH45D16F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.45 A | 1.35A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.071" (1.80mm) |
|
SPM5012T-1R0MTFIXED IND 1UH 4.1A 44 MOHM SMD |
4,181 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 5.9A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
|
SPM5012T-2R2MTFIXED IND 2.2UH 2.7A 78.8MOHM SM |
4,275 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 4.6A | Shielded | 78.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|

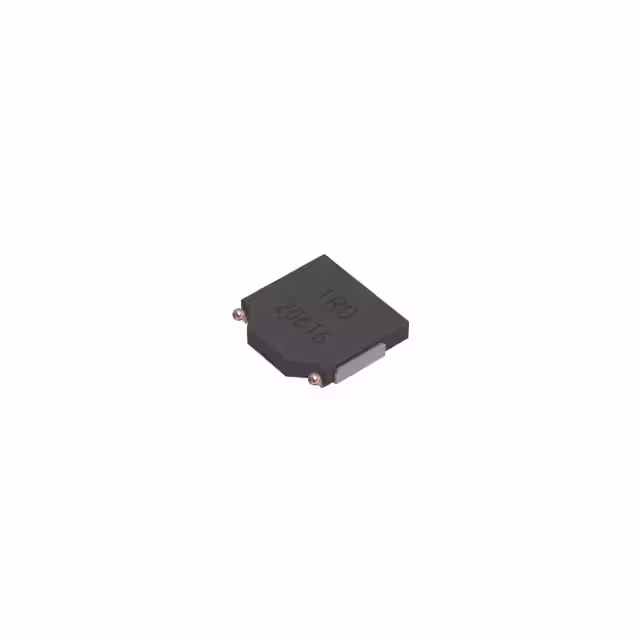

SPM5010T-6R8M-LRFIXED IND 6.8UH 1.3A 388.7 MOHM |
3,835 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.3 A | 2.2A | Shielded | 388.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
|
SPM5010T-R60M-LRFIXED IND 600NH 5A 33.5 MOHM SMD |
1,350 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 600 nH | ±20% | 5 A | 6.8A | Shielded | 33.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
|
SPM5010T-R47M-LRFIXED IND 470NH 5.3A 24.2MOHM SM |
2,244 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.3 A | 8A | Shielded | 24.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
.JPG)
|
B82442A1103J000FIXED IND 10UH 690MA 168MOHM SMD |
2,170 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 690 mA | - | Unshielded | 168mOhm Max | 10 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
N08DPA102JFIXED IND 1MH 340MA 3.1 OHM SMD |
3,119 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 mH | ±5% | 340 mA | - | Unshielded | 3.1Ohm Max | - | 1.8MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA120KFIXED IND 12UH 2.1A 77 MOHM SMD |
4,086 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±10% | 2.1 A | - | Unshielded | 77mOhm Max | - | 16MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA151KFIXED IND 150UH 800MA 550MOHM SM |
2,073 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 150 µH | ±10% | 800 mA | - | Unshielded | 550mOhm Max | - | 6MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA181KFIXED IND 180UH 760MA 620MOHM SM |
1,106 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 180 µH | ±10% | 760 mA | - | Unshielded | 620mOhm Max | - | 4.9MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA271KFIXED IND 270UH 630MA 900MOHM SM |
2,315 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 270 µH | ±10% | 630 mA | - | Unshielded | 900mOhm Max | - | 3.4MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA331KFIXED IND 330UH 590MA 1.1OHM SMD |
3,255 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | ±10% | 590 mA | - | Unshielded | 1.1Ohm Max | - | 3.2MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA471KFIXED IND 470UH 500MA 1.5OHM SMD |
4,329 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | ±10% | 500 mA | - | Unshielded | 1.5Ohm Max | - | 2.6MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA561KFIXED IND 560UH 450MA 1.7OHM SMD |
2,883 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 560 µH | ±10% | 450 mA | - | Unshielded | 1.7Ohm Max | - | 2.4MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA681KFIXED IND 680UH 380MA 2.4OHM SMD |
4,427 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | ±10% | 380 mA | - | Unshielded | 2.4Ohm Max | - | 2.2MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
|
|
N08DPA821KFIXED IND 820UH 360MA 2.6OHM SMD |
4,486 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 µH | ±10% | 360 mA | - | Unshielded | 2.6Ohm Max | - | 1.9MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.236" (6.00mm) |
