Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1267AY-220M=P3FIXED IND 22UH 2.3A 74.4MOHM SMD |
3,141 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | - | Shielded | 74.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-330M=P3FIXED IND 33UH 1.9A 120 MOHM SMD |
1,564 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | - | Shielded | 120mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-470M=P3FIXED IND 47UH 1.6A 168 MOHM SMD |
1,395 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | - | Shielded | 168mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-4R7N=P3FIXED IND 4.7UH 5.1A 20.4MOHM SM |
1,285 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.1 A | - | Shielded | 20.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-680M=P3FIXED IND 68UH 1.3A 240 MOHM SMD |
1,239 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | - | Shielded | 240mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
.jpg)
|
74479787222FIXED IND 2.2UH 1.5A 104MOHM SMD |
1,341 |
|
- |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 1.5 A | 700mA | Shielded | 104mOhm Max | 15 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

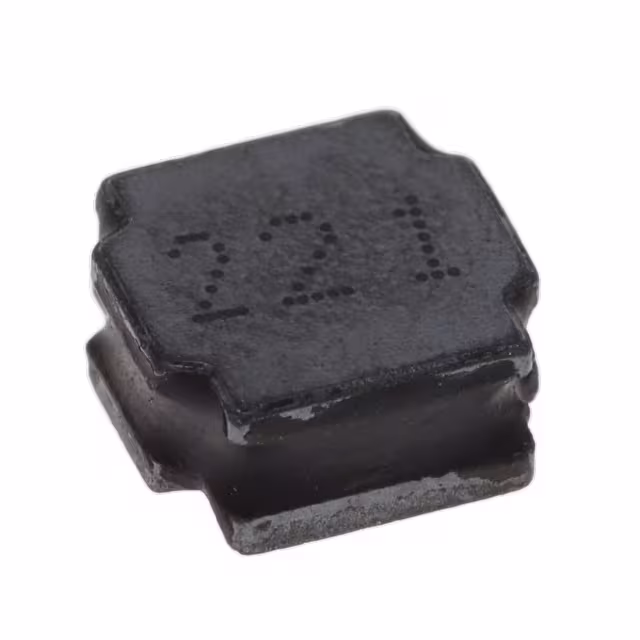

ASPI-0840-221M-TFIXED IND 220UH 750MA 819MOHM SM |
1,990 |
|
Datasheet |
ASPI-0840 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 750 mA | 750mA | Shielded | 819mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.169" (4.30mm) |
|
ASPI-0840-470M-TFIXED IND 47UH 1.6A 195 MOHM SMD |
4,925 |
|
Datasheet |
ASPI-0840 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | 1.6A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.169" (4.30mm) |
|
744766082FIXED IND 8.2UH 270MA 1.4OHM SMD |
1,655 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 270 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.96MHz | 30MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
IMC1812ER120KFIXED IND 12UH 225MA 2 OHM SMD |
4,501 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 12 µH | ±10% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 18MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER180KFIXED IND 18UH 190MA 2.8 OHM SMD |
4,542 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 18 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER270KFIXED IND 27UH 170MA 3.6 OHM SMD |
4,206 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 27 µH | ±10% | 170 mA | - | Unshielded | 3.6Ohm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ER390KFIXED IND 39UH 150MA 4.5 OHM SMD |
2,406 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 39 µH | ±10% | 150 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV150KFIXED IND 15UH 200MA 2.5 OHM SMD |
2,413 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.52MHz | 17MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV180KFIXED IND 18UH 190MA 2.8 OHM SMD |
3,846 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 18 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV220KFIXED IND 22UH 180MA 3.2 OHM SMD |
2,992 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV270KFIXED IND 27UH 170MA 3.6 OHM SMD |
2,423 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 27 µH | ±10% | 170 mA | - | Unshielded | 3.6Ohm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV330KFIXED IND 33UH 160MA 4 OHM SMD |
2,141 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV390KFIXED IND 39UH 150MA 4.5 OHM SMD |
2,433 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 39 µH | ±10% | 150 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV470KFIXED IND 47UH 140MA 5 OHM SMD |
4,744 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
