Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS10165T3R3NNV8FIXED IND 3.3UH 6.76A 10.4 MOHM |
3,759 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 6.76 A | 9.3A | Shielded | 10.4mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|

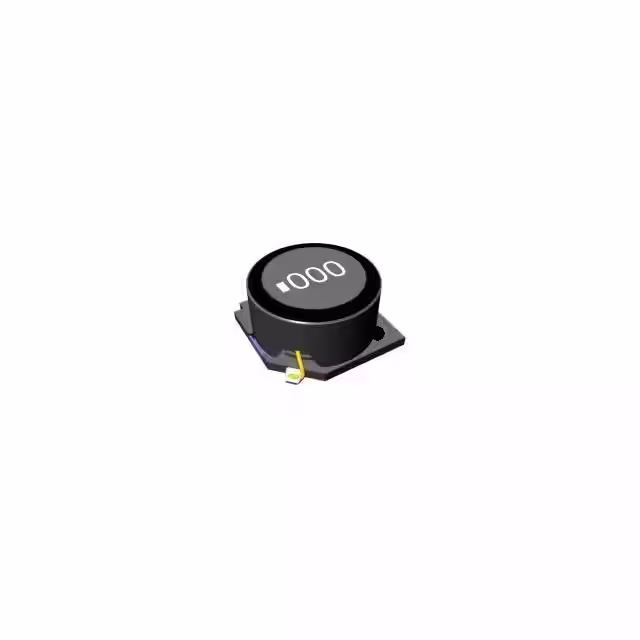

LBRNJ10165GL2R2NNFIXED IND 2.2UH 7.32A 8.9MOHM SM |
1,933 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 7.32 A | 10.8A | Shielded | 7.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
SD3812-100-RFIXED IND 10UH 662MA 441MOHM SMD |
1,390 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 662 mA | 778mA | Shielded | 441mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-101-RFIXED IND 100UH 217MA 4.099 OHM |
4,150 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 217 mA | 248mA | Shielded | 4.099Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-150-RFIXED IND 15UH 539MA 665MOHM SMD |
3,582 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 539 mA | 636mA | Shielded | 665mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-151-RFIXED IND 150UH 178MA 6.13OHM SM |
4,459 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±15% | 178 mA | 202mA | Shielded | 6.13Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-1R0-RFIXED IND 1UH 2A 48 MOHM SMD |
2,548 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 2 A | 2.69A | Shielded | 48mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-1R5-RFIXED IND 1.5UH 1.58A 78MOHM SMD |
2,367 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±15% | 1.58 A | 2.06A | Shielded | 78mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-220-RFIXED IND 22UH 499MA 776MOHM SMD |
3,189 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 499 mA | 538mA | Shielded | 776mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-3R3-RFIXED IND 3.3UH 1.1A 159MOHM SMD |
3,843 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±15% | 1.1 A | 1.4A | Shielded | 159mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-470-RFIXED IND 47UH 327MA 1.809OHM SM |
4,651 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 327 mA | 361mA | Shielded | 1.809Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-4R7-RFIXED IND 4.7UH 870MA 256MOHM SM |
2,725 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 870 mA | 1.13A | Shielded | 256mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-680-RFIXED IND 68UH 269MA 2.666OHM SM |
2,675 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 269 mA | 299mA | Shielded | 2.666Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-6R8-RFIXED IND 6.8UH 800MA 299MOHM SM |
4,198 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±15% | 800 mA | 950mA | Shielded | 299mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-820-RFIXED IND 82UH 259MA 2.885OHM SM |
3,966 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 259 mA | 276mA | Shielded | 2.885Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SD3812-R47-RFIXED IND 470NH 2.53A 30MOHM SMD |
2,235 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±15% | 2.53 A | 3.89A | Shielded | 30mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SDH3812-100-RFIXED IND 10UH 690MA 478MOHM SMD |
2,281 |
|
Datasheet |
SDH3812 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 690 mA | 880mA | Shielded | 478mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
SDH3812-101-RFIXED IND 100UH 250MA 3.65OHM SM |
3,698 |
|
Datasheet |
SDH3812 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 280mA | Shielded | 3.65Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
SDH3812-150-RFIXED IND 15UH 560MA 735MOHM SMD |
2,648 |
|
Datasheet |
SDH3812 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 560 mA | 720mA | Shielded | 735mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
SDH3812-151-RFIXED IND 150UH 200MA 5.45OHM SM |
1,145 |
|
Datasheet |
SDH3812 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 200 mA | 220mA | Shielded | 5.45Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
