Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPLA5030S-R20NTFIXED IND 200NH 16A 3.2 MOHM SMD |
1,355 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 200 nH | ±30% | 16 A | 25A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
AMPLA5030S-R56MTFIXED IND 560NH 10A 10 MOHM SMD |
2,341 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 560 nH | ±20% | 10 A | 15A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLA5030S-1R5MTFIXED IND 1.5UH 6A 25 MOHM SMD |
2,638 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLA5030S-R33MTFIXED IND 330NH 14A 5 MOHM SMD |
1,168 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 330 nH | ±20% | 14 A | 18A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
SPM4012T-1R0M TFIXED IND 1UH 4.3A 41.8MOHM SMD |
4,929 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.5A | Shielded | 41.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-1R5M TFIXED IND 1.5UH 3.5A 67.9MOHM SM |
4,139 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.5 A | 3.7A | Shielded | 67.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-2R2M TFIXED IND 2.2UH 2.9A 94.3MOHM SM |
4,909 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 94.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-3R3M TFIXED IND 3.3UH 2.4A 141.5 MOHM |
3,129 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.4 A | 2.6A | Shielded | 141.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-4R7MTFIXED IND 4.7UH 2A 204.7MOHM SMD |
3,918 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 2.1A | Shielded | 204.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-R47M TFIXED IND 470NH 5.6A 25.3MOHM SM |
1,202 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.6 A | 6A | Shielded | 25.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

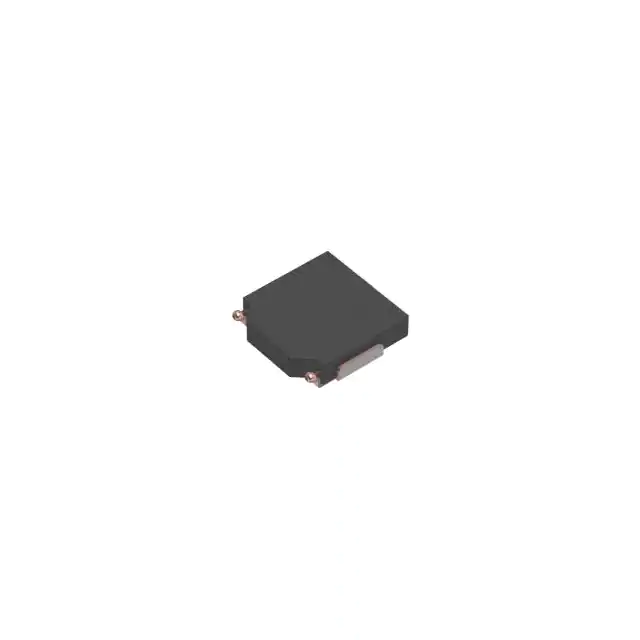

SPM4010T-100M-LRFIXED IND 10UH 1.1A 650.9MOHM SM |
1,258 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.1 A | 1.6A | Shielded | 650.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|
BPSF00131375150M00INDUCTOR POWER |
1,686 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 5 A | 4.7A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF001313751R2T00INDUCTOR POWER |
3,656 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±30% | 8.2 A | 13A | Shielded | 8.28mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375100M00INDUCTOR POWER |
4,221 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.4 A | 5.5A | Shielded | 15.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375220M00INDUCTOR POWER |
1,139 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 4 A | 4A | Shielded | 26.3mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375101M00INDUCTOR POWER |
4,033 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.9 A | 1.9A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375151M00INDUCTOR POWER |
3,746 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.6 A | 1.5A | Shielded | 175mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF001313754R7T00INDUCTOR POWER |
1,632 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.3 A | 7.8A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375330M00INDUCTOR POWER |
3,922 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 3.4 A | 3.2A | Shielded | 39.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
BPSF00131375470M00INDUCTOR POWER |
1,714 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 3 A | 2.7A | Shielded | 52.8mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
