Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74478611FIXED IND 10NH 600MA 450MOHM SMD |
1,579 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 3.7GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SMC1005R15MZF155NH POWER BEAD |
1,090 |
|
- |
SMC1005 | Nonstandard | Active | Molded | - | 155 nH | ±20% | 50 A | 40A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SMC1005R10MZF100NH POWER BEAD |
3,714 |
|
- |
SMC1005 | Nonstandard | Active | Molded | - | 100 nH | ±30% | 50 A | 70A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SMC1005R12MZF120NH POWER BEAD |
2,301 |
|
- |
SMC1005 | Nonstandard | Active | Molded | - | 120 nH | ±20% | 50 A | 52A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SMC1005R08MZF85NH POWER BEAD |
3,363 |
|
- |
SMC1005 | Nonstandard | Active | Molded | - | 85 nH | ±20% | 50 A | 70A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SMC1005R22MZF220NH POWER BEAD |
4,911 |
|
- |
SMC1005 | Nonstandard | Active | Molded | - | 220 nH | ±20% | 50 A | 33A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) | |
|

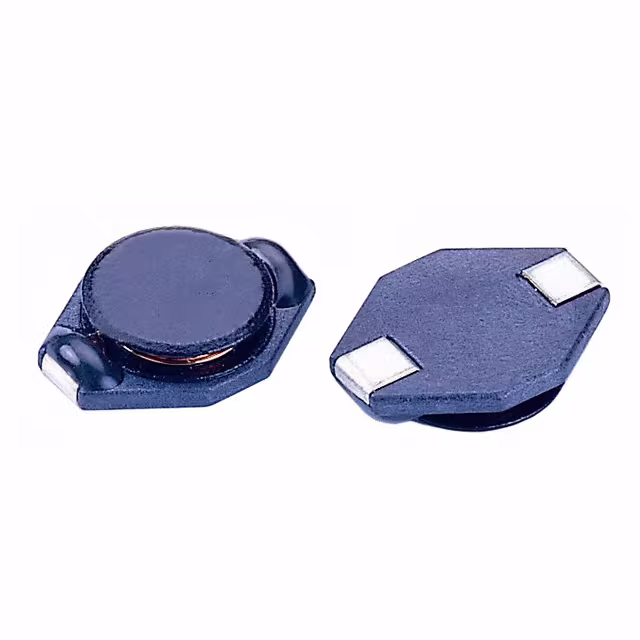

SC3308F-100FIXED IND 10UH 2.48A 110MOHM SMD |
1,470 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.48 A | 2.4A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-102FIXED IND 1MH 180MA 8.4 OHM SMD |
3,615 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 180 mA | 100mA | Unshielded | 8.4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-150FIXED IND 15UH 2.1A 150 MOHM SMD |
4,666 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.1 A | 2A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-220FIXED IND 22UH 1.64A 230MOHM SMD |
3,485 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.64 A | 1.6A | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-330FIXED IND 33UH 1.3A 300 MOHM SMD |
2,429 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.3 A | 1.4A | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-331FIXED IND 330UH 380MA 2.7OHM SMD |
4,689 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 380 mA | 400mA | Unshielded | 2.7Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-471FIXED IND 470UH 280MA 4 OHM SMD |
3,157 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 280 mA | 300mA | Unshielded | 4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-681FIXED IND 680UH 240MA 5.3OHM SMD |
4,720 |
|
Datasheet |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 240 mA | 200mA | Unshielded | 5.3Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
PA3790.151HLFIXED IND 150NH 57A 0.29MOHM SMD |
1,128 |
|
Datasheet |
PA3790.XXXHL | Nonstandard | Tray | Discontinued at Digi-Key | - | - | 150 nH | ±15% | 57 A | 98A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|

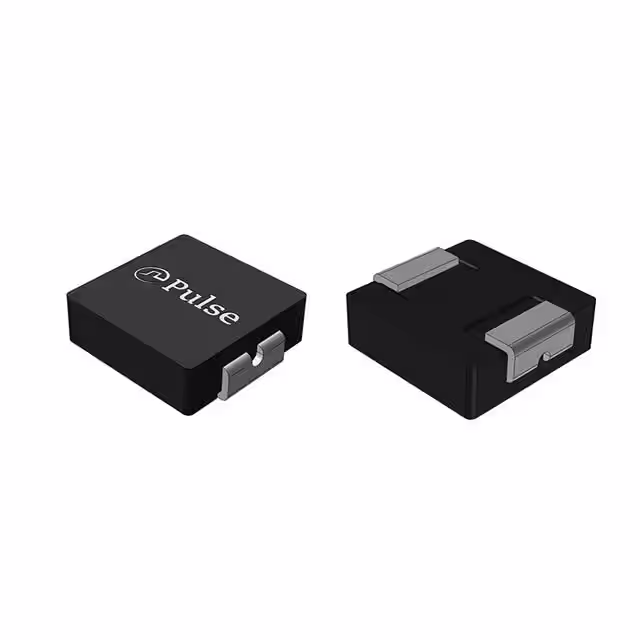

PA4546.251NLTIND MOLDED POWDER 4.7X4.31X1.2 |
2,483 |
|
Datasheet |
PA4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 250 nH | ±20% | 8.2 A | 16A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
PA4546.121NLTIND MOLDED POWDER 4.7X4.31X1.2 |
4,029 |
|
Datasheet |
PM4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 120 nH | ±20% | 10.5 A | 23A | Shielded | 6.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
PA4546.821NLTIND MOLDED POWDER 4.7X4.31X1.2 |
3,696 |
|
Datasheet |
PA4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 4.5 A | 6A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
SCNR4018-101INDUCTOR SMD 100UH 0.40A 2.20OH |
1,393 |
|
Datasheet |
SCNR4018 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 320 mA | 400mA | Unshielded | 2.22Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.063" (1.60mm) |
|
|
SLPPI04-02-R68M-TRHI POWER IND 0.68UH 13.3 MOHM 1 |
2,877 |
|
Datasheet |
SLPPI04 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7 A | 11A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
