Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-3FN1R8NFIXED IND 1.8UH 1.1A 110MOHM SMD |
1,149 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.8 µH | ±30% | 1.1 A | - | Unshielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN2R2NFIXED IND 2.2UH 1A 120 MOHM SMD |
4,176 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±30% | 1 A | - | Unshielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN2R7NFIXED IND 2.7UH 950MA 150MOHM SM |
4,435 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.7 µH | ±30% | 950 mA | - | Unshielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN4R7NFIXED IND 4.7UH 750MA 280MOHM SM |
4,645 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±30% | 750 mA | - | Unshielded | 280mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN6R8NFIXED IND 6.8UH 620MA 360MOHM SM |
4,923 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±30% | 620 mA | - | Unshielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN150MFIXED IND 15UH 370MA 1 OHM SMD |
1,681 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 370 mA | - | Unshielded | 1Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
ELL-5PS2R2NFIXED IND 2.2UH 2.1A 34 MOHM SMD |
4,636 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 2.1 A | 2.1A | Shielded | 34mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

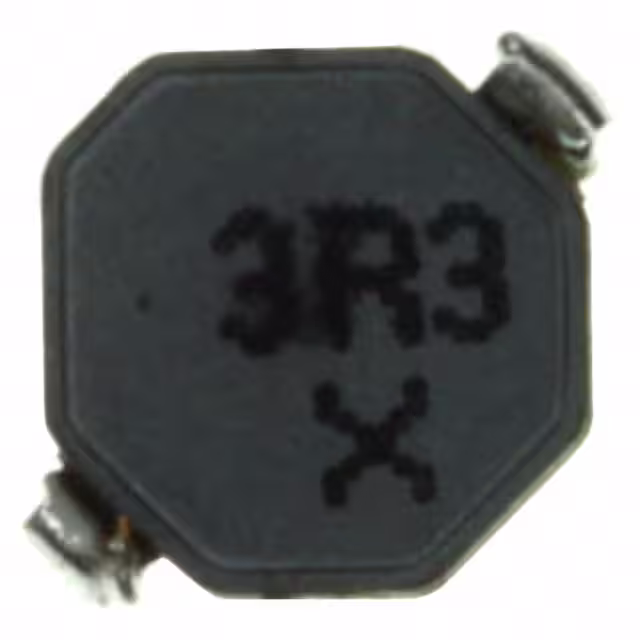

ELL-5PS3R3NFIXED IND 3.3UH 2A 46 MOHM SMD |
1,138 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2 A | 1.9A | Shielded | 46mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

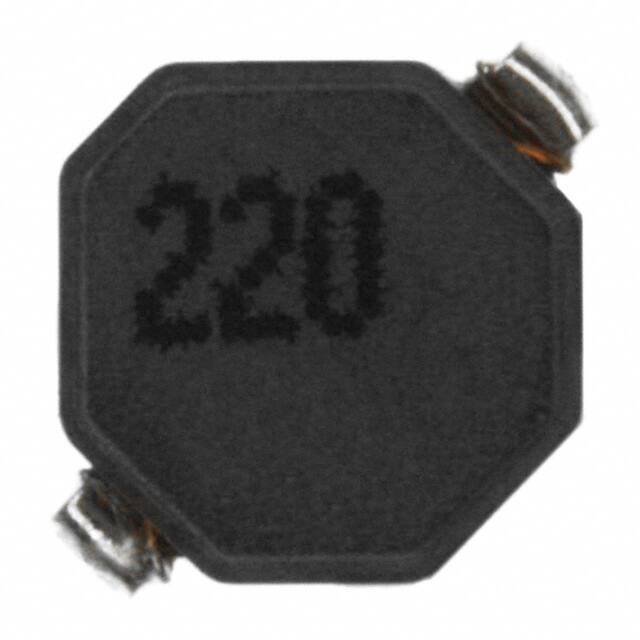

ELL-5PS220MFIXED IND 22UH 750MA 290MOHM SMD |
2,783 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 750 mA | 650mA | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

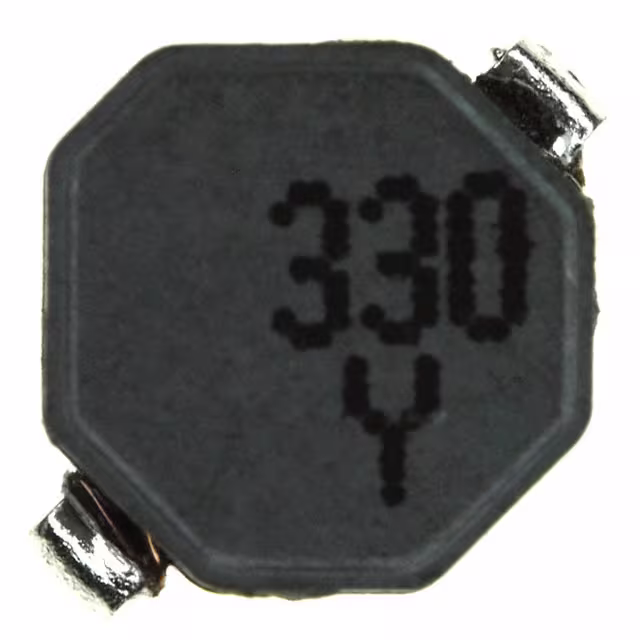

ELL-5PS330MFIXED IND 33UH 490MA 470MOHM SMD |
1,499 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 490 mA | 490mA | Shielded | 470mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

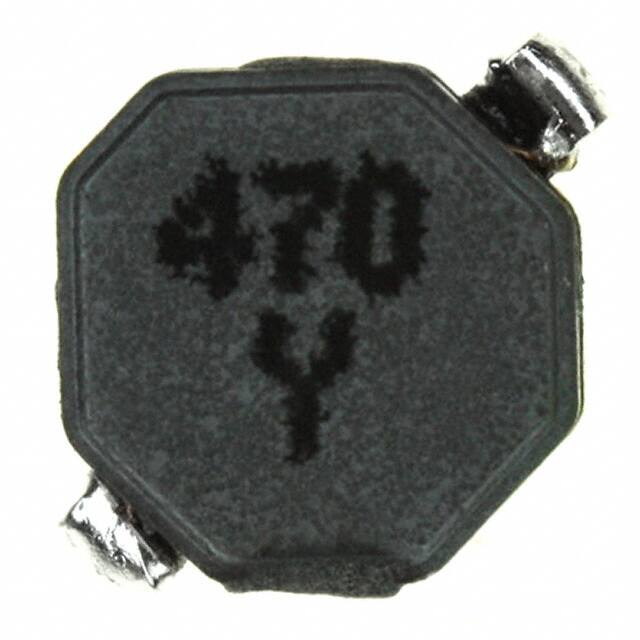

ELL-5PS470MFIXED IND 47UH 550MA 620MOHM SMD |
2,146 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 550 mA | 450mA | Shielded | 620mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

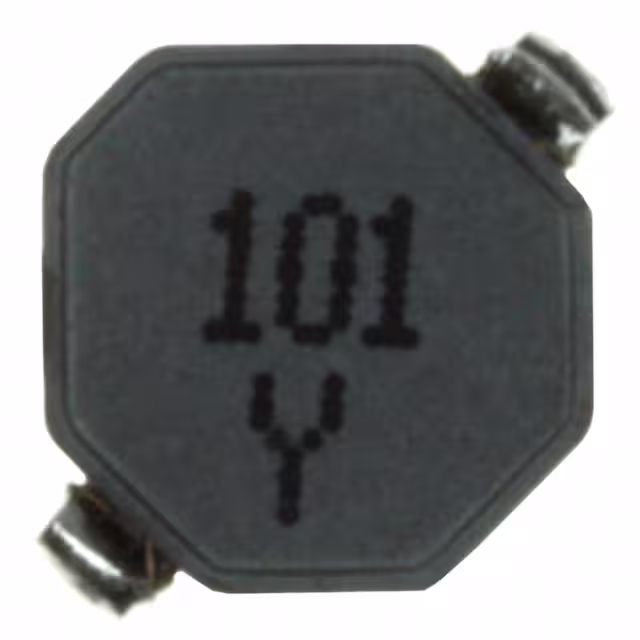

ELL-5PS101MFIXED IND 100UH 340MA 1.32OHM SM |
1,236 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 340 mA | 300mA | Shielded | 1.32Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
PA4330.102NLTFIXED IND 1UH 2.35A 90 MOHM SMD |
2,743 |
|
Datasheet |
PA4330.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.35 A | 3.35A | Shielded | 90mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.087" L x 0.071" W (2.20mm x 1.80mm) | 0.039" (1.00mm) |
|
|
PA4330.471NLTFIXED IND 470NH 3.1A 49 MOHM SMD |
1,008 |
|
Datasheet |
PA4330.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.1 A | 3.8A | Shielded | 49mOhm Max | - | 102MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.087" L x 0.071" W (2.20mm x 1.80mm) | 0.039" (1.00mm) |
|
|
PA4330.681NLTFIXED IND 680NH 2.8A 65 MOHM SMD |
3,811 |
|
Datasheet |
PA4330.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.8 A | 3.5A | Shielded | 65mOhm Max | - | 77MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.087" L x 0.071" W (2.20mm x 1.80mm) | 0.039" (1.00mm) |
|
1226AS-H-R47N=P2FIXED IND 470NH 3.9A 24 MOHM SMD |
3,033 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.9 A | 2.9A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
1226AS-H-2R7M=P2FIXED IND 2.7UH 2A 63 MOHM SMD |
2,731 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2 A | 1.3A | Shielded | 63mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
1226AS-H-4R7M=P2FIXED IND 4.7UH 1.6A 96 MOHM SMD |
3,556 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 950mA | Shielded | 96mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
1226AS-H-100M=P2FIXED IND 10UH 1A 216 MOHM SMD |
4,587 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 650mA | Shielded | 216mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
74479157FIXED IND 2.7UH 50MA 600MOHM SMD |
3,268 |
|
- |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Nickel Zinc Ferrite (NiZn) | 2.7 µH | ±10% | 50 mA | - | Unshielded | 600mOhm Max | 45 @ 10MHz | 52MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
