Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH6PPN680M43LFIXED IND 68UH 1A 289 MOHM SMD |
2,438 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1 A | 1.1A | Shielded | 289mOhm | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

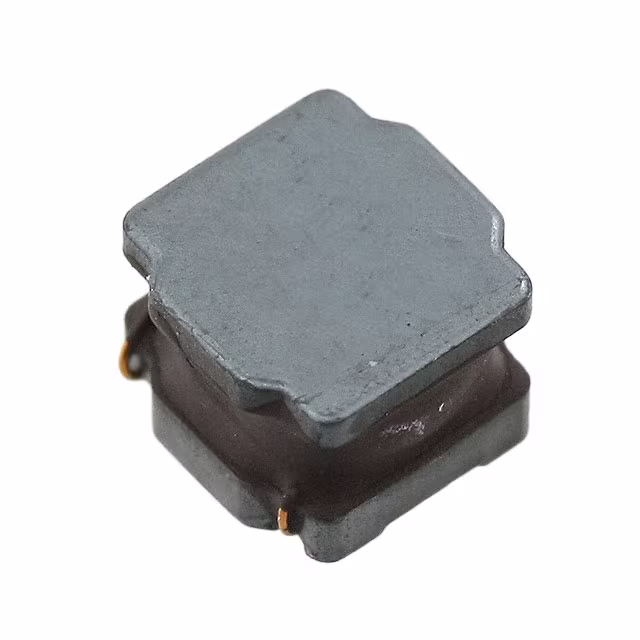

LQH6PPN101M43LFIXED IND 100UH 800MA 436MOHM SM |
2,449 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 800 mA | 920mA | Shielded | 436mOhm | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PE-0805CD470GTTFIXED IND 46.6NH 500MA 310 MOHM |
3,934 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 46.6 nH | ±2% | 500 mA | - | Unshielded | 310mOhm Max | 60 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CD151GTTFIXED IND 149.4NH 400MA 560 MOHM |
3,321 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 149.4 nH | ±2% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
ASPI-2515-100M-T2FIXED IND 10UH 750MA 445MOHM SMD |
3,804 |
|
Datasheet |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 750 mA | 800mA | Shielded | 445mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
HLC02100HTTRFIXED IND 10NH 290MA 1 OHM SMD |
4,056 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 10 nH | ±3% | 290 mA | - | Unshielded | 1Ohm Max | 30 @ 450MHz | 5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
LQW2BHNR22J03LFIXED IND 220NH 240MA 0.7OHM SMD |
3,871 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 35 @ 100MHz | 500MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
AISC-1206-R27J-TFIXED IND 270NH 630MA 560MOHM SM |
2,188 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 630 mA | - | Unshielded | 560mOhm Max | 50 @ 300MHz | 730MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
|
AISC-1210-R15J-TFIXED IND 150NH 750MA 250MOHM SM |
2,328 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 750 mA | - | Unshielded | 250mOhm Max | 60 @ 300MHz | 700MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
|
AISC-1210-R33J-TFIXED IND 330NH 590MA 580MOHM SM |
4,075 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 590 mA | - | Unshielded | 580mOhm Max | 45 @ 150MHz | 580MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
NRS4010T1R0NDGGVFIXED IND 1UH 1.9A 67.2 MOHM SMD |
4,393 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2A | Shielded | 67.2mOhm Max | - | 116MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
MLK1005S2N7STD25FIXED IND 2.7NH 500MA 200MOHM SM |
4,739 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 2.7 nH | ±0.3nH | 500 mA | - | Unshielded | 200mOhm Max | 6 @ 100MHz | 7.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S3N3STD25FIXED IND 3.3NH 400MA 220MOHM SM |
1,517 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 3.3 nH | ±0.3nH | 400 mA | - | Unshielded | 220mOhm Max | 7 @ 100MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQH2HPN1R2NJRLFIXED IND 1.2UH 1.24A 66MOHM SMD |
4,370 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 1.24 A | 2.45A | Shielded | 66mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPN1R5NJRLFIXED IND 1.5UH 1.08A 90MOHM SMD |
4,297 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.08 A | 2.2A | Shielded | 90mOhm Max | - | 95MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AISC-0402F-33NJ-TFIXED IND 33NH 1.3A 65 MOHM SMD |
3,376 |
|
Datasheet |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 1.3 A | - | Unshielded | 65mOhm Max | - | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-96NJ-TFIXED IND 96NH 730MA 160MOHM SMD |
2,990 |
|
Datasheet |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 96 nH | ±5% | 730 mA | - | Unshielded | 160mOhm Max | - | 1.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-R16J-TFIXED IND 160NH 480MA 330MOHM SM |
3,820 |
|
Datasheet |
AISC-0402F | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±5% | 480 mA | - | Unshielded | 330mOhm Max | - | 900MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
-Height-.80mm.jpg)
|
LQM2HPNR24MEHLFIXED IND 240NH 3A 34 MOHM SMD |
1,133 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 240 nH | ±20% | 3 A | 4.5A | Shielded | 34mOhm Max | - | 130MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
LQM2HPNR68MEHLFIXED IND 680NH 1.85A 94MOHM SMD |
1,206 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 680 nH | ±20% | 1.85 A | 2.1A | Shielded | 94mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
