Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-PE18NKFAFIXED IND 18NH 800MA 120MOHM SMD |
4,344 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 18 nH | ±10% | 800 mA | - | Unshielded | 120mOhm Max | 9 @ 100MHz | 2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE22NKFAFIXED IND 22NH 700MA 150MOHM SMD |
4,037 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 22 nH | ±10% | 700 mA | - | Unshielded | 150mOhm Max | 9 @ 100MHz | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|

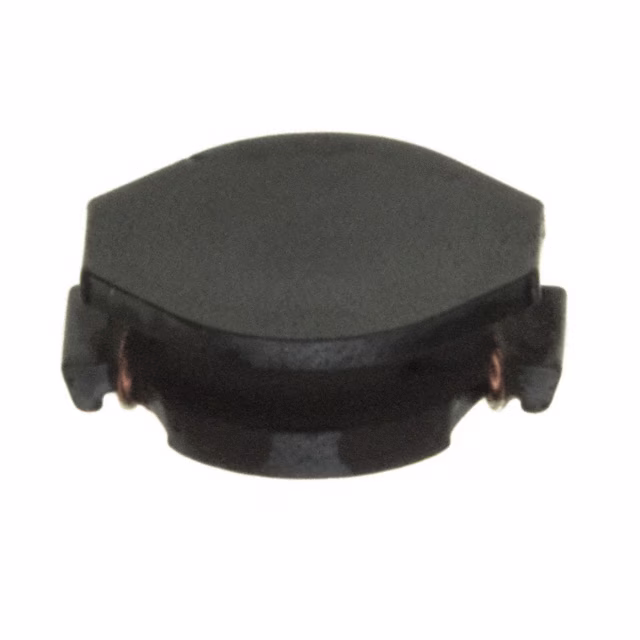

LQH55PN1R2NR0LFIXED IND 1.2UH 2.9A 21 MOHM SMD |
2,154 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 2.9 A | 2.6A | Shielded | 21mOhm | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN2R2NR0LFIXED IND 2.2UH 2.5A 31 MOHM SMD |
1,659 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 2.5 A | 2.1A | Shielded | 31mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.073" (1.85mm) |
|
|
LQH55PN2R7NR0LFIXED IND 2.7UH 2.15A 40 MOHM |
4,832 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.15 A | 2.07A | Shielded | 40mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN3R3NR0LFIXED IND 3.3UH 2A 44 MOHM SMD |
2,184 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2 A | 2A | Shielded | 44mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN4R7NR0LFIXED IND 4.7UH 1.75A 60 MOHM |
3,425 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.75 A | 1.4A | Shielded | 60mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN6R8NR0LFIXED IND 6.8UH 1.45A 87 MOHM |
1,575 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.45 A | 1.2A | Shielded | 87mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN100MR0LFIXED IND 10UH 1.25A 110 MOHM |
4,598 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.25 A | 1A | Shielded | 110mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN220MR0LFIXED IND 22UH 850MA 260 MOHM |
1,268 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 22 µH | ±20% | 850 mA | 670mA | Shielded | 260mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
LQH6PPN1R0N43LFIXED IND 1UH 4.3A 9 MOHM SMD |
3,547 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 4.3 A | 7.5A | Shielded | 9mOhm | - | 110MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN2R2N43LFIXED IND 2.2UH 4.1A 14 MOHM SMD |
4,931 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 4.1 A | 5.6A | Shielded | 14mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN3R3N43LFIXED IND 3.3UH 3.8A 16 MOHM SMD |
1,013 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 3.8 A | 4.5A | Shielded | 16mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN4R7M43LFIXED IND 4.7UH 3.2A 20 MOHM SMD |
1,275 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 20mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN6R8M43LFIXED IND 6.8UH 2.85A 28MOHM SMD |
2,336 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.85 A | 3.2A | Shielded | 28mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

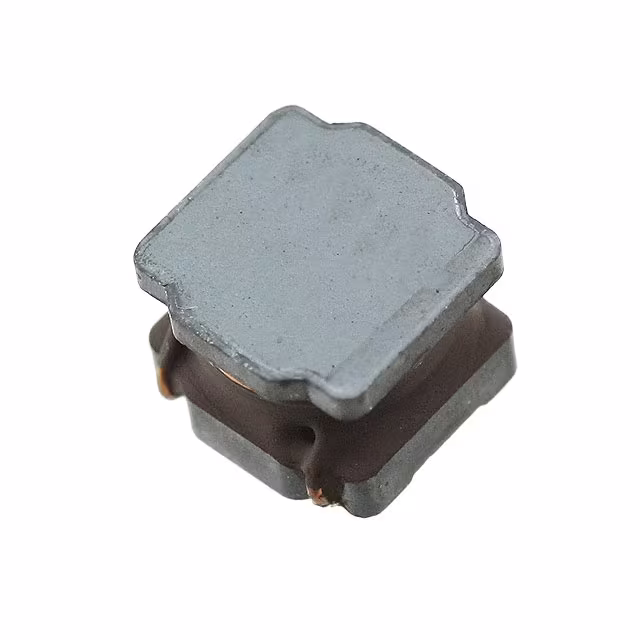

LQH6PPN100M43LFIXED IND 10UH 2.6A 44 MOHM SMD |
2,855 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.6 A | 2.6A | Shielded | 44mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN150M43LFIXED IND 15UH 2.2A 65 MOHM SMD |
2,266 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 65mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN220M43LFIXED IND 22UH 1.55A 108MOHM SMD |
1,769 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.55 A | 1.7A | Shielded | 108mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN330M43LFIXED IND 33UH 1.29A 137MOHM SMD |
1,044 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.29 A | 1.6A | Shielded | 137mOhm | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN470M43LFIXED IND 47UH 1.1A 230 MOHM SMD |
2,914 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.1 A | 1.25A | Shielded | 230mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
