Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-VGG470MFIXED IND 47UH 270MA 2.1 OHM SMD |
4,467 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 270 mA | 350mA | Shielded | 2.1Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

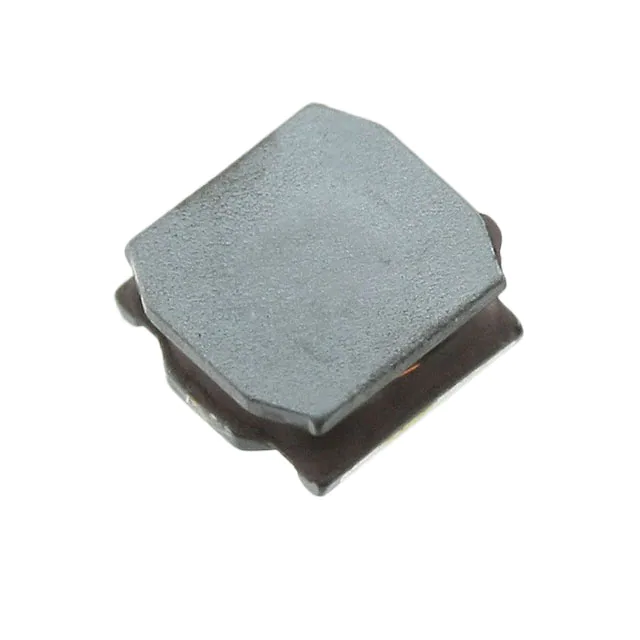

LQH44PN2R2MP0LFIXED IND 2.2UH 1.8A 58.8MOHM SM |
3,476 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 2.5A | Shielded | 58.8mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN3R3MP0LFIXED IND 3.3UH 1.77A 65MOHM SMD |
2,976 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.77 A | 2.1A | Shielded | 65mOhm | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN4R7MP0LFIXED IND 4.7UH 1.7A 96 MOHM SMD |
3,455 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 1.7A | Shielded | 96mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN100MP0LFIXED IND 10UH 1.17A 192MOHM SMD |
3,348 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.17 A | 1.15A | Shielded | 192mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN220MP0LFIXED IND 22UH 790MA 444MOHM SMD |
1,375 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 790 mA | 800mA | Shielded | 444mOhm Max | - | 17MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
.jpg)
|
ELJ-DA470JFFIXED IND 47UH 105MA 5.9 OHM SMD |
3,832 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±5% | 105 mA | - | Unshielded | 5.9Ohm Max | 21 @ 2.52MHz | 10MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA560JFFIXED IND 56UH 100MA 6.5 OHM SMD |
2,036 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±5% | 100 mA | - | Unshielded | 6.5Ohm Max | 21 @ 2.52MHz | 8.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA680JFFIXED IND 68UH 85MA 9 OHM SMD |
1,685 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±5% | 85 mA | - | Unshielded | 9Ohm Max | 21 @ 2.52MHz | 7.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA101JFFIXED IND 100UH 70MA 13 OHM SMD |
1,317 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±5% | 70 mA | - | Unshielded | 13Ohm Max | 24 @ 796kHz | 7MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AISC-1210H-1R0N-TFIXED IND 1UH 2.3A 63 MOHM SMD |
4,530 |
|
Datasheet |
AISC-1210H | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | - | Unshielded | 63mOhm Max | - | 100MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.138" L x 0.098" W (3.50mm x 2.50mm) | 0.098" (2.50mm) |
|
|
AISC-1210H-681K-TFIXED IND 680UH 40MA 40 OHM SMD |
1,699 |
|
Datasheet |
AISC-1210H | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 40 mA | - | Unshielded | 40Ohm Max | - | 3.2MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | 1210 | 0.138" L x 0.098" W (3.50mm x 2.50mm) | 0.098" (2.50mm) |
|
|
AISM-1210-R12M-TFIXED IND 120NH 450MA 220MOHM SM |
1,906 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 120 nH | ±20% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 500MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R15M-TFIXED IND 150NH 450MA 250MOHM SM |
3,435 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 150 nH | ±20% | 450 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 450MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R18M-TFIXED IND 180NH 450MA 280MOHM SM |
2,458 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 180 nH | ±20% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 400MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R33M-TFIXED IND 330NH 450MA 400MOHM SM |
4,985 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 330 nH | ±20% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R39M-TFIXED IND 390NH 450MA 450MOHM SM |
4,551 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 390 nH | ±20% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 250MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R68M-TFIXED IND 680NH 450MA 600MOHM SM |
2,801 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±20% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-R82M-TFIXED IND 820NH 450MA 650MOHM SM |
3,351 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 820 nH | ±20% | 450 mA | - | Unshielded | 650mOhm Max | 30 @ 25.2MHz | 140MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISM-1210-1R2K-TFIXED IND 1.2UH 390MA 750MOHM SM |
3,354 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 µH | ±10% | 390 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
