Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NL453232T-121J-PFFIXED IND 120UH 110MA 8 OHM SMD |
1,238 |
|
Datasheet |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-120J-PFFIXED IND 12UH 225MA 2 OHM SMD |
1,332 |
|
Datasheet |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±5% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-102J-PFFIXED IND 1MH 30MA 40 OHM SMD |
1,949 |
|
Datasheet |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 252kHz | 2.5MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-101J-PFFIXED IND 100UH 110MA 8 OHM SMD |
4,747 |
|
Datasheet |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-100J-PFFIXED IND 10UH 250MA 1.6 OHM SMD |
4,889 |
|
Datasheet |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NR4012T4R7MFIXED IND 4.7UH 960MA 168MOHM SM |
1,204 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 960 mA | 1.05A | Shielded | 168mOhm Max | - | 45MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
NR4012T330MFIXED IND 33UH 420MA 972MOHM SMD |
2,355 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 420 mA | 400mA | Shielded | 972mOhm Max | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
NR4012T3R3MFIXED IND 3.3UH 980MA 156MOHM SM |
3,165 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 980 mA | 1.2A | Shielded | 156mOhm Max | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
NR4012T6R8MFIXED IND 6.8UH 840MA 216MOHM SM |
3,758 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 840 mA | 900mA | Shielded | 216mOhm Max | - | 35MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
NR6045T1R3NFIXED IND 1.3UH 4A 20.8 MOHM SMD |
4,296 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.3 µH | ±30% | 4 A | 8A | Shielded | 20.8mOhm Max | - | 95MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ELL-VEG330MFIXED IND 33UH 290MA 2.3 OHM SMD |
1,206 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 290 mA | 260mA | Shielded | 2.3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
ELL-VGG1R0NFIXED IND 1UH 1.8A 52 MOHM SMD |
4,143 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.8 A | 2.2A | Shielded | 52mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG1R6NFIXED IND 1.6UH 1.55A 73MOHM SMD |
4,099 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.6 µH | ±30% | 1.55 A | 1.8A | Shielded | 73mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG2R2NFIXED IND 2.2UH 1.4A 92 MOHM SMD |
3,065 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.4 A | 1.6A | Shielded | 92mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

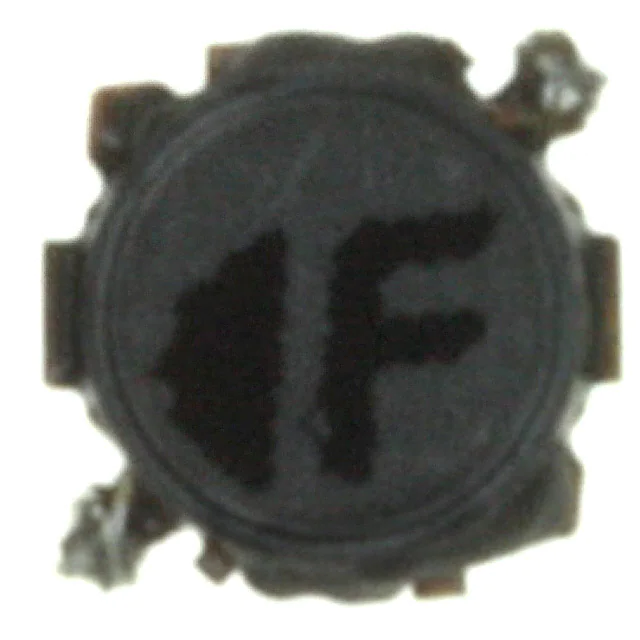

ELL-VGG3R9NFIXED IND 3.9UH 1A 150 MOHM SMD |
2,030 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±30% | 1 A | 1.3A | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG4R7NFIXED IND 4.7UH 980MA 170MOHM SM |
3,957 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 980 mA | 1.2A | Shielded | 170mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG6R8NFIXED IND 6.8UH 800MA 230MOHM SM |
4,692 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 800 mA | 1A | Shielded | 230mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG100MFIXED IND 10UH 730MA 280MOHM SMD |
2,591 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 730 mA | 800mA | Shielded | 280mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

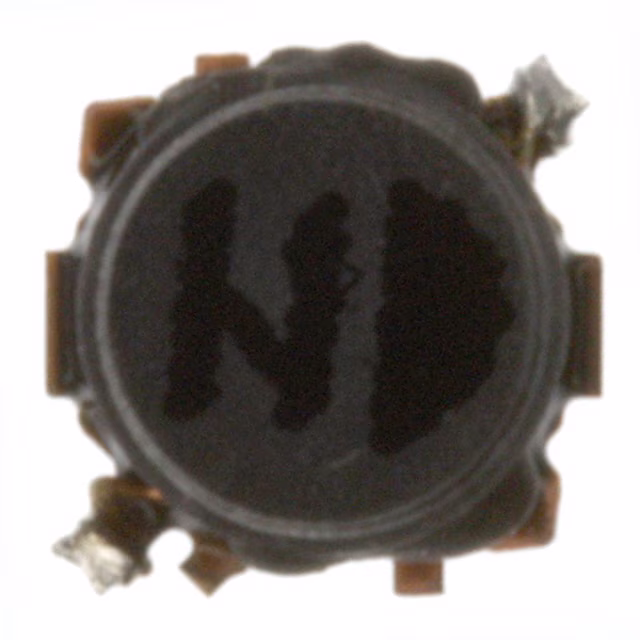

ELL-VGG120MFIXED IND 12UH 580MA 480MOHM SMD |
1,878 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 580 mA | 690mA | Shielded | 480mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG330MFIXED IND 33UH 340MA 1.33OHM SMD |
4,620 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 340 mA | 450mA | Shielded | 1.33Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
