Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCTI-820-2.6FIXED IND 820UH 2.6A 270 MOHM TH |
1,020 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 820 µH | ±15% | 2.6 A | - | Shielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
7447471068FIXED IND 6.8UH 6.4A 13.9MOHM TH |
1,009 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.4 A | 5A | Shielded | 13.9mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
MPXV1D1250L100FIXED IND 10UH 10.1A 20.6MOHM SM |
2,003 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 10.1 A | 13.5A | Shielded | 20.6mOhm Max | - | 8.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
1025R-32KFIXED IND 3.3UH 285MA 850MOHM TH |
4,986 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 3.3 µH | ±10% | 285 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
HCM1103-R36-RFIXED IND 360NH 23A 1.3 MOHM SMD |
4,904 |
|
Datasheet |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 360 nH | ±20% | 23 A | 28A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
|
MPXV1D1264LR33FIXED IND 330NH 45.6A 1.2MOHM SM |
4,560 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 45.6 A | 70A | Shielded | 1.2mOhm Max | - | 61MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|

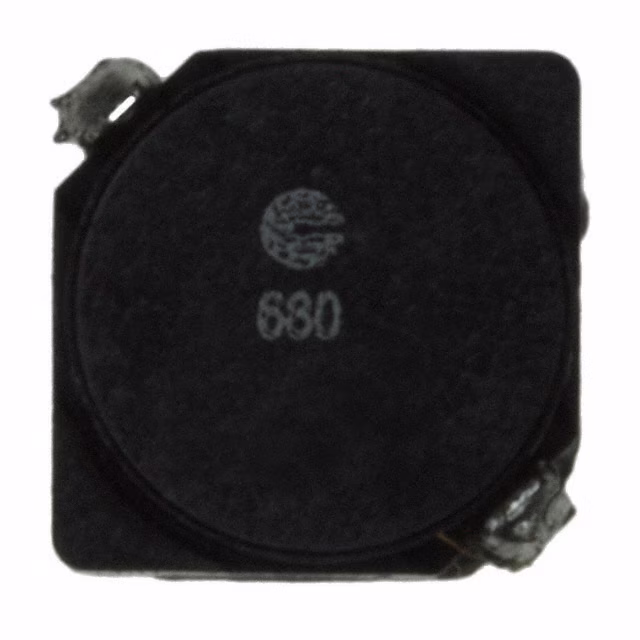

SD7030-680-RFIXED IND 66.6UH 850MA 304 MOHM |
3,091 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 66.6 µH | ±30% | 850 mA | 650mA | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
2106-V-RCFIXED IND 27UH 5.3A 26 MOHM TH |
4,086 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 27 µH | ±15% | 5.3 A | - | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
SRF1010DA-150MFIXED IND 15UH 4.6A 45.5MOHM SMD |
3,945 |
|
Datasheet |
SRF1010DA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 4.6 A | 5.5A | Shielded | 45.5mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.378" W (12.00mm x 9.60mm) | 0.457" (11.60mm) |
|
FP1008R4-R150-RFIXED IND 150NH SMD |
4,772 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
PG1083.472NLFIXED IND 4.7UH 26A 2.8 MOHM SMD |
2,689 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 26 A | 30A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PM2110-1R0M-RCFIXED IND 1UH 22.7A 2 MOHM SMD |
3,604 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 1 µH | ±20% | 22.7 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|
7843330820FIXED IND 8.2UH 7.2A 19.1MOHM SM |
1,591 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7.2 A | 12.8A | Shielded | 19.1mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
AIUR-15-331KFIXED IND 330UH 1.8A 260 MOHM TH |
4,640 |
|
Datasheet |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.8 A | - | Unshielded | 260mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
|
DRA125-6R8-RFIXED IND 6.8UH 6.81A 12MOHM SMD |
1,427 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.81 A | 8.74A | Shielded | 12mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SBC8-103-251FIXED IND 10MH 250MA 6.9 OHM TH |
4,215 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 250 mA | 360mA | Unshielded | 6.9Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|

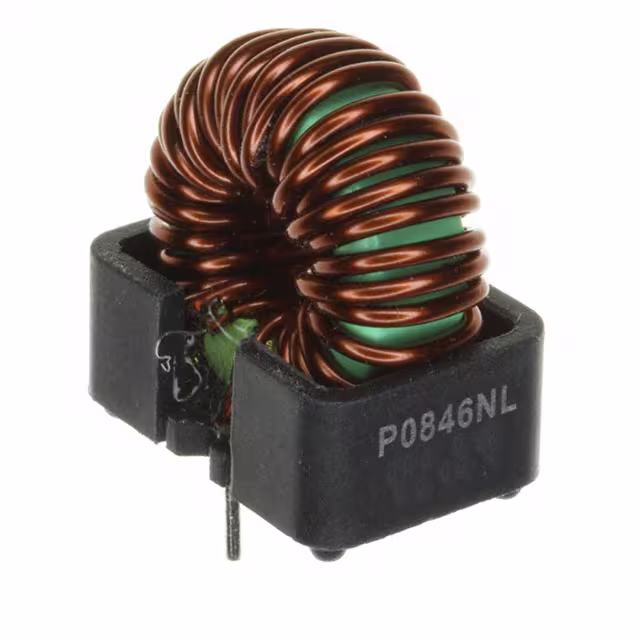

P0846NLFIXED IND 14.8UH 5A 23 MOHM TH |
3,795 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.670" L x 0.460" W (17.02mm x 11.69mm) | 0.750" (19.05mm) |
|
DRA127-820-RFIXED IND 82UH 2.008A 155MOHM SM |
1,329 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 2.008 A | 3.84A | Shielded | 155mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA124-151-RFIXED IND 150UH 967MA 454MOHM SM |
2,260 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 967 mA | 1.621A | Shielded | 454mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
2108-V-RCFIXED IND 39UH 4.8A 32 MOHM TH |
2,277 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 39 µH | ±15% | 4.8 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
