Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA74-681-RFIXED IND 680UH 315MA 2.86OHM SM |
3,248 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 315 mA | 352mA | Shielded | 2.86Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

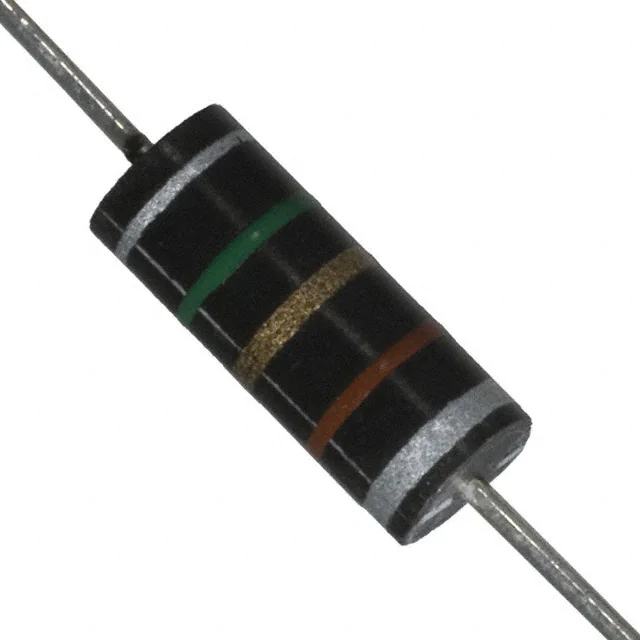

9250A-152-RCFIXED IND 1.5UH 815MA 120MOHM TH |
1,554 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.5 µH | ±10% | 815 mA | 815mA | Shielded | 120mOhm Max | 44 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

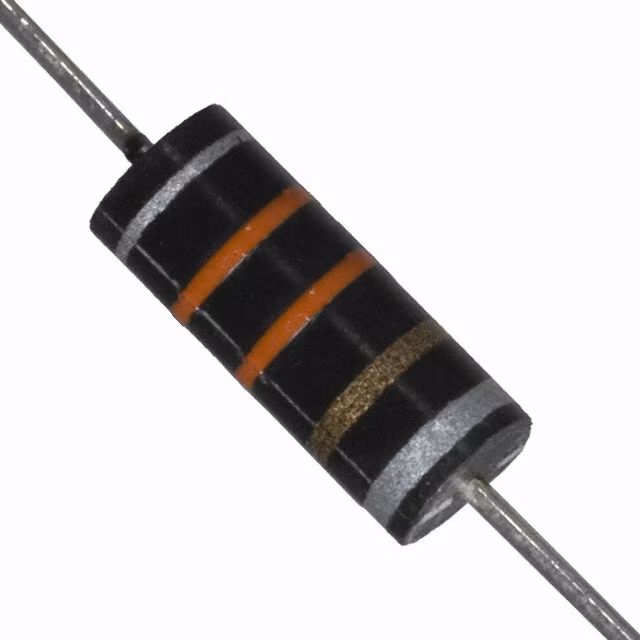

9250A-331-RCFIXED IND 330NH 780MA 130MOHM TH |
2,285 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 330 nH | ±10% | 780 mA | 780mA | Shielded | 130mOhm Max | 46 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

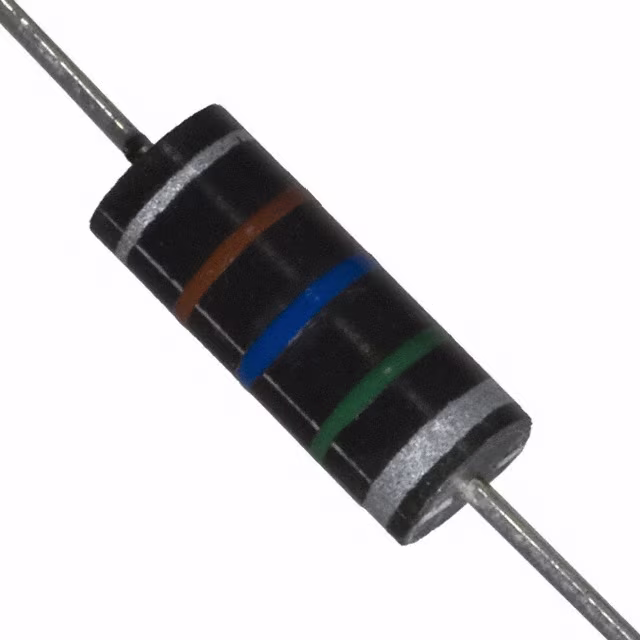

9250A-564-RCFIXED IND 560UH 90MA 10.5 OHM TH |
3,863 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 560 µH | ±10% | 90 mA | 55mA | Shielded | 10.5Ohm Max | 60 @ 790kHz | 4.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
UP1B-221-RFIXED IND 220UH 360MA 1.96OHM SM |
3,461 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 360 mA | 380mA | Unshielded | 1.96Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
MPLC0730LR75FIXED IND 750NH SMD |
4,716 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 750 nH | ±20% | - | - | Shielded | - | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|
MPLC0730L1R5FIXED IND 1.5UH 8.6A 15 MOHM SMD |
4,197 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 8.6 A | 8.8A | Shielded | 15mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|
PD0120.532NLFIXED IND 5.7UH 10.4A 8.5MOHM SM |
4,012 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 5.7 µH | ±10% | 10.4 A | 13.6A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
SBCP-87HY150HFIXED IND 15UH 2.1A 60 MOHM TH |
1,838 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.1 A | 2.2A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
MDH12577C-100MA=P3FIXED IND 10UH 4.7A 14 MOHM SMD |
3,598 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.7 A | 7.7A | Unshielded | 14mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-101MA=P3FIXED IND 100UH 1.6A 108MOHM SMD |
3,479 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.6 A | 2.3A | Unshielded | 108mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-150MA=P3FIXED IND 15UH 3.6A 22 MOHM SMD |
1,602 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.6 A | 5.7A | Unshielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-220MA=P3FIXED IND 22UH 3A 33 MOHM SMD |
4,572 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 4.9A | Unshielded | 33mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-470MA=P3FIXED IND 47UH 2.1A 66 MOHM SMD |
1,055 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.1 A | 3.4A | Unshielded | 66mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-471MA=P3FIXED IND 470UH 700MA 540MOHM SM |
2,561 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 700 mA | 1A | Unshielded | 540mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MDH12577C-680MA=P3FIXED IND 68UH 1.8A 90 MOHM SMD |
4,638 |
|
Datasheet |
MDH12577C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | 2.8A | Unshielded | 90mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|

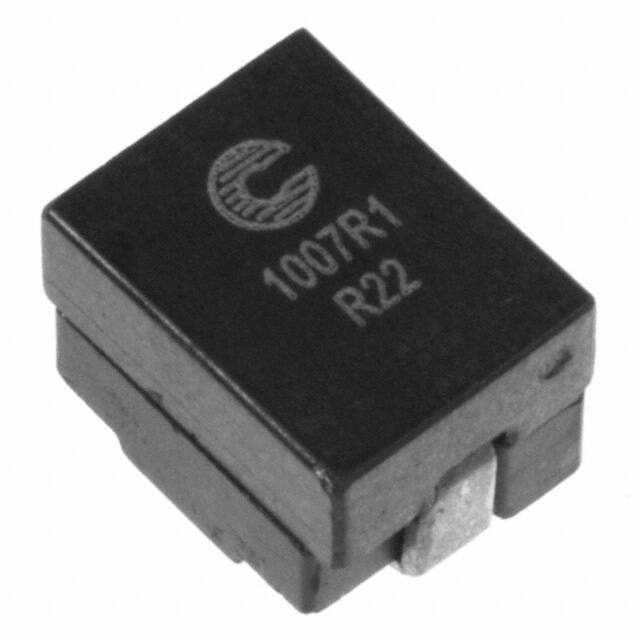

FP1007R1-R22-RFIXED IND 215NH 60A 0.29MOHM SMD |
1,009 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 215 nH | ±10% | 60 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
74437356010FIXED IND 1UH 12.5A 0.00835OHM |
2,510 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 12.5 A | 34.2A | Shielded | 8.35mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.118" (3.00mm) |
|
|
744373560022FIXED IND 220NH 20A 0.00161OHM |
1,637 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 20 A | 63.4A | Shielded | 1.61mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|
744750420047FIXED IND 4.7UH 8.7A 8.5MOHM TH |
3,656 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.7 A | 13.5A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
