Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW03AW1N1C00DFIXED IND 1.1NH 660MA 60MOHM SMD |
4,247 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.1 nH | ±0.2nH | 660 mA | - | Unshielded | 60mOhm Max | 41 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW1N9C00DFIXED IND 1.9NH 620MA 80MOHM SMD |
2,821 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.9 nH | ±0.2nH | 620 mA | - | Unshielded | 80mOhm Max | 41 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW2N0C00DFIXED IND 2NH 490MA 100MOHM SMD |
4,362 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2 nH | ±0.2nH | 490 mA | - | Unshielded | 100mOhm Max | 42 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW2N1C00DFIXED IND 2.1NH 400MA 160MOHM SM |
4,349 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.1 nH | ±0.2nH | 400 mA | - | Unshielded | 160mOhm Max | 35 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
1227AS-H-R47N=P2FIXED IND 470NH 4.7A 20 MOHM SMD |
3,659 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 4.7 A | 3.3A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|
|
1227AS-H-6R8M=P2FIXED IND 6.8UH 1.3A 146MOHM SMD |
4,249 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Shielded | 146mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|
P0250.102NLFIXED IND 1UH 8.6A 9 MOHM SMD |
4,158 |
|
Datasheet |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±15% | 8.6 A | 20A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
SBC4-331-591FIXED IND 330UH 590MA 670MOHM TH |
1,267 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 590 mA | 810mA | Unshielded | 670mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
CDRH2D11NP-3R3NCFIXED IND 3.3UH 1.02A 123MOHM SM |
2,033 |
|
Datasheet |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.02 A | 600mA | Shielded | 123mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

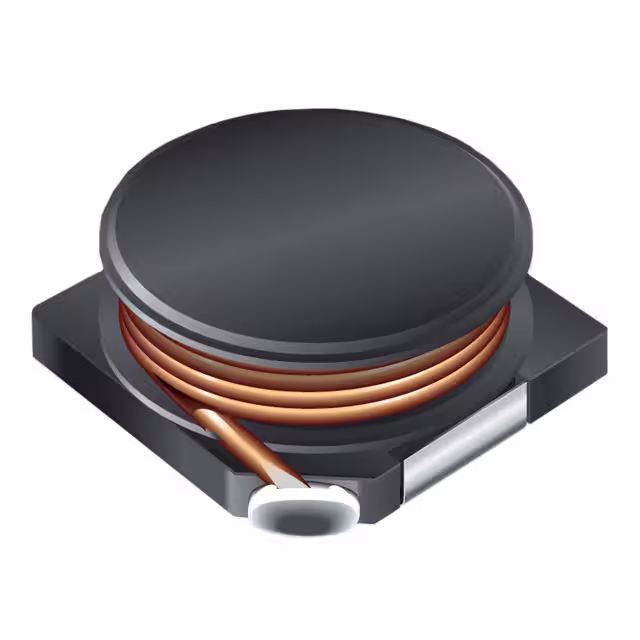

SDR7030-471KFIXED IND 470UH 220MA 2.8OHM SMD |
4,590 |
|
Datasheet |
SDR7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 220 mA | 230mA | Unshielded | 2.8Ohm Max | 30 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.130" (3.30mm) |
|
CDRH3D28/LDNP-150NCFIXED IND 15UH 1.44A 115MOHM SMD |
2,149 |
|
Datasheet |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.44 A | 400mA | Shielded | 115mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
49100CFIXED IND 10UH 4.5A 41 MOHM SMD |
3,973 |
|
Datasheet |
4900 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 4.5 A | - | Shielded | 41mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
49151CFIXED IND 150UH 1.15A 529MOHM SM |
4,422 |
|
Datasheet |
4900 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | - | 1.15 A | - | Shielded | 529mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SRU3014-2R0YFIXED IND 2UH 1.1A 95 MOHM SMD |
1,223 |
|
Datasheet |
SRU3014 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 1.1 A | 1.3A | Shielded | 95mOhm Max | 10 @ 7.96MHz | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.063" (1.60mm) |
|
SDR1005-2R2MLFIXED IND 2.2UH 6.1A 12 MOHM SMD |
2,296 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 12mOhm Max | 51 @ 2.47MHz | 65MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
SDR1006-3R3MLFIXED IND 3.3UH 5A 24 MOHM SMD |
1,191 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5 A | 10A | Unshielded | 24mOhm Max | 34 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-6R8MLFIXED IND 6.8UH 3.4A 44 MOHM SMD |
3,687 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 5.9A | Unshielded | 44mOhm Max | 33 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SBC1-331-341FIXED IND 330UH 340MA 1.9 OHM TH |
3,300 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 340 mA | 260mA | Unshielded | 1.9Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
|
SRR4528A-150MFIXED IND 15UH 1.42A 119MOHM SMD |
2,247 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.42 A | 900mA | Shielded | 119mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4528A-151MFIXED IND 150UH 480MA 905MOHM SM |
1,864 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 480 mA | 290mA | Shielded | 905mOhm Max | - | 8.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
