Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS8030T3R3MJGJVFIXED IND 3.3UH 4.3A 24.7MOHM SM |
2,384 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.3 A | 4.2A | Shielded | 24.7mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T150MJGJVFIXED IND 15UH 2.2A 78 MOHM SMD |
3,672 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2A | Shielded | 78mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
NRS8040T1R4NJGJVFIXED IND 1.4UH 7A 9.1 MOHM SMD |
2,210 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 10A | Shielded | 9.1mOhm Max | - | 63MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
1226AS-H-3R3M=P2FIXED IND 3.3UH 1.9A 68 MOHM SMD |
3,035 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.9 A | 1.1A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
1226AS-H-6R8M=P2FIXED IND 6.8UH 1.2A 156MOHM SMD |
3,547 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 800mA | Shielded | 156mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
1226AS-H-150M=P2FIXED IND 15UH 800MA 324MOHM SMD |
3,627 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 500mA | Shielded | 324mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
SBC2-680-871FIXED IND 68UH 870MA 260 MOHM TH |
2,583 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 870 mA | 810mA | Unshielded | 260mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
48100CFIXED IND 10UH 3.9A 61.4MOHM SMD |
2,495 |
|
Datasheet |
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 3.9 A | - | Shielded | 61.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
48101CFIXED IND 100UH 1.23A 503MOHM SM |
4,597 |
|
Datasheet |
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | - | 1.23 A | - | Shielded | 503mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
48680CFIXED IND 68UH 1.5A 409MOHM SMD |
2,499 |
|
Datasheet |
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | - | 1.5 A | - | Shielded | 409mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|

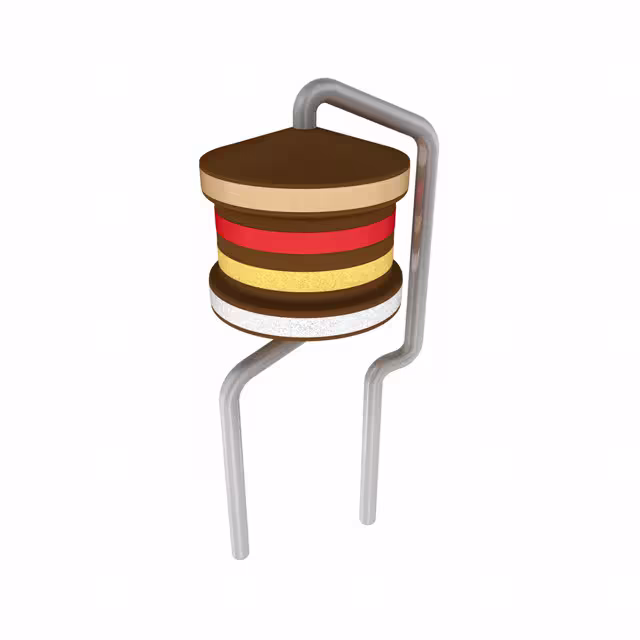

B82144B2122K000FIXED IND 1.2UH 4.25A 44 MOHM TH |
1,705 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 4.25 A | 7.4A | Unshielded | 44mOhm Max | 60 @ 2.52MHz | 190MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
MDMK2020T4R7MMVFIXED IND 4.7UH 242 MOHM SMD |
2,945 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | - | - | Shielded | 242mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
RLB0913-270KFIXED IND 27UH 2.5A 80 MOHM TH |
1,433 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 2.5 A | 1.7A | Unshielded | 80mOhm | 30 @ 2.52MHz | 8.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
74405020047FIXED IND 4.7UH 800MA 444MOHM SM |
4,030 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 800 mA | 1.5A | Shielded | 444mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SBC9-101-122FIXED IND 100UH 1.2A 210 MOHM TH |
2,034 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.2 A | 3A | Unshielded | 210mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
RLB1314-150MLFIXED IND 15UH 2.6A 19 MOHM TH |
1,080 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.6 A | - | Unshielded | 19mOhm Max | 120 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
RLB1314-331KLFIXED IND 330UH 550MA 420MOHM TH |
2,297 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 550 mA | - | Unshielded | 420mOhm Max | 40 @ 796kHz | 2.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
.jpg)
|
B82422H1332J000FIXED IND 3.3UH 770MA 180MOHM SM |
3,247 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 770 mA | - | Unshielded | 180mOhm Max | 10 @ 2.52MHz | 70MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
P0770.103NLFIXED IND 10UH 1.1A 160 MOHM SMD |
3,346 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
36501E6N8JTDGFIXED IND 6.8NH 680MA 83MOHM SMD |
4,343 |
|
Datasheet |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.8 nH | ±5% | 680 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
