Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744765090AFIXED IND 9NH 680MA 100 MOHM SMD |
1,531 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9 nH | ±0.2nH | 680 mA | - | Unshielded | 100mOhm Max | 25 @ 200MHz | 4.16GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
VLS252010ET-6R8MFIXED IND 6.8UH 680MA 532MOHM SM |
2,518 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 680 mA | 680mA | Shielded | 532mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NRS4010T100MDGGVFIXED IND 10UH 750MA 360MOHM SMD |
2,997 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 750 mA | 620mA | Shielded | 360mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
NRS4010T2R2MDGGVFIXED IND 2.2UH 1.5A 102MOHM SMD |
2,431 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.2A | Shielded | 102mOhm Max | - | 73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|

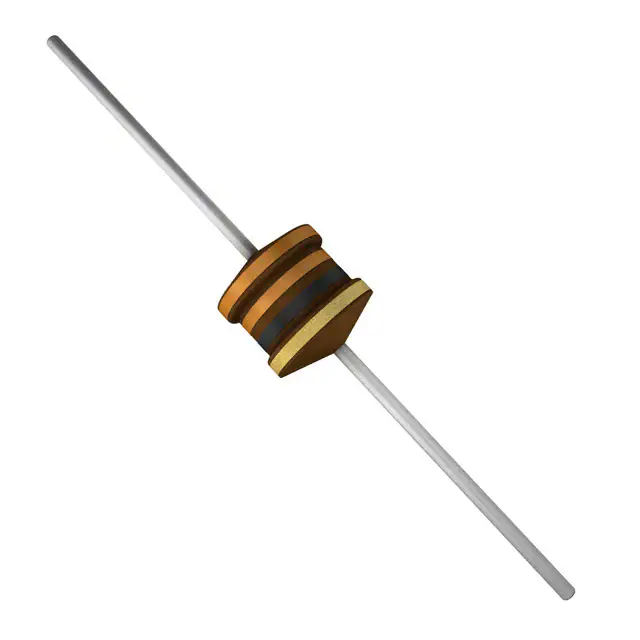

B78108E1333J000FIXED IND 33UH 1.05A 550 MOHM TH |
2,163 |
|
Datasheet |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.05 A | 1A | Unshielded | 550mOhm Max | 50 @ 796kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
SBC3-151-791FIXED IND 150UH 790MA 360MOHM TH |
2,523 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 790 mA | 810mA | Unshielded | 360mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
PE-0603CD390GTTFIXED IND 39NH 600MA 250MOHM SMD |
1,129 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 35 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
NRS6028T1R5NMGJVFIXED IND 1.5UH 4.2A 20.8MOHM SM |
1,074 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 5.1A | Shielded | 20.8mOhm Max | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
VLS5045EX-8R2MFIXED IND 8.2UH 2.8A 55 MOHM SMD |
4,984 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.8 A | - | Shielded | 55mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
NRV2010T1R0NGFVFIXED IND 1UH 1.6A 96 MOHM SMD |
4,699 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.6 A | 1.55A | Shielded | 96mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
MEKK2016T2R2MFIXED IND 2.2UH 1.9A 150MOHM SMD |
3,545 |
|
Datasheet |
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2.4A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
B82422T1153K000FIXED IND 15UH 130MA 2.8 OHM SMD |
4,311 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 130 mA | - | Unshielded | 2.8Ohm Max | 27 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
MEKK2520TR33MFIXED IND 330NH 5.1A 22 MOHM SMD |
4,420 |
|
Datasheet |
MCOIL™, ME | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 5.1 A | 6.4A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRN3010TA-1R0YFIXED IND 1UH 2.1A 55 MOHM SMD |
1,949 |
|
Datasheet |
SRN3010TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 1.8A | Shielded | 55mOhm | 10 @ 1MHz | 170MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
-Height-.80mm.jpg)
|
LQM2HPN1R5MEHLFIXED IND 1.5UH 1.45A 150MOHM SM |
2,626 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.45 A | 1.2A | Shielded | 150mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SWPA4018S4R7MTFIXED IND 4.7UH 1.2A 117MOHM SMD |
1,496 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 2.2A | Shielded | 117mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SWPA4018S100MTFIXED IND 10UH 840MA 234MOHM SMD |
2,603 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 840 mA | 1.6A | Shielded | 234mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SWPA4030S2R2NTFIXED IND 2.2UH 2.95A 39MOHM SMD |
3,528 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.95 A | 5.8A | Shielded | 39mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
WPN201610H4R7MTFIXED IND 4.7UH 900MA 425MOHM SM |
4,833 |
|
Datasheet |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | 1.5A | Shielded | 425mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDCH1V6045-100M-RIND 10 UH 4.50A SMT |
4,579 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.4 A | 4.5A | Shielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
