Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDJE2020T100MMFIXED IND 10UH 600MA 1.04OHM SMD |
4,756 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 600 mA | 700mA | Shielded | 1.04Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.037" (0.95mm) |
|
SRN4012TA-6R8MFIXED IND 6.8UH 1.3A 125MOHM SMD |
3,334 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Shielded | 125mOhm | 6 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
7447629220FIXED IND 22UH 265MA 3 OHM SMD |
4,209 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±10% | 265 mA | - | Unshielded | 3.36Ohm Max | 30 @ 2.52MHz | 29MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
SRN4012TA-150MFIXED IND 15UH 750MA 260MOHM SMD |
1,038 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 750 mA | 650mA | Shielded | 260mOhm | 10 @ 100kHz | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
RLB0608-2R2MLFIXED IND 2.2UH 830MA 240MOHM TH |
4,803 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 830 mA | - | Unshielded | 240mOhm Max | 60 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
LQW04AN1N3C00DFIXED IND 1.3NH 1.5A 30MOHM SMD |
2,151 |
|
Datasheet |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 1.3 nH | ±0.2nH | 1.5 A | - | Unshielded | 30mOhm Max | 15 @ 250MHz | 20GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
|
SRN4012TA-R47MFIXED IND 470NH 3.2A 25 MOHM SMD |
4,629 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.2 A | 4A | Shielded | 25mOhm | 6 @ 100kHz | 140MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
7447629010FIXED IND 1UH 850MA 400 MOHM SMD |
3,627 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 850 mA | - | Unshielded | 408mOhm Max | 20 @ 7.96MHz | 290MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
SRN4012TA-220MFIXED IND 22UH 620MA 400MOHM SMD |
3,623 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 620 mA | 500mA | Shielded | 400mOhm | 10 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS252010CX-150M-1FIXED IND 15UH 560MA 914MOHM SMD |
2,048 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 560 mA | 560mA | Shielded | 914mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-Height-1.00mm.jpg)
|
1276AS-H-R47M=P2FIXED IND 470NH 3.3A 38 MOHM SMD |
2,971 |
|
Datasheet |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 3.3 A | 3.8A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
1276AS-H-R68M=P2FIXED IND 680NH 2.9A 45 MOHM SMD |
3,710 |
|
Datasheet |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 2.9 A | 3.5A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
7447629100FIXED IND 10UH 340MA 1.975OHM SM |
4,637 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 340 mA | - | Unshielded | 2.028Ohm Max | 30 @ 2.52MHz | 44MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
7447669168FIXED IND 68UH 350MA 2.25OHM SMD |
3,056 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±10% | 350 mA | - | Unshielded | 2.6Ohm Max | 30 @ 2.52MHz | 10.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN4012TA-1R5MFIXED IND 1.5UH 2A 50 MOHM SMD |
4,370 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2 A | 2.2A | Shielded | 50mOhm | 6 @ 100kHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LQW04AN14NH00DFIXED IND 14NH 280MA 340MOHM SMD |
3,682 |
|
Datasheet |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 14 nH | ±3% | 280 mA | - | Unshielded | 340mOhm Max | 15 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
AISC-1210-R47J-TFIXED IND 470NH 490MA 800MOHM SM |
4,175 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 490 mA | - | Unshielded | 800mOhm Max | 45 @ 150MHz | 480MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|

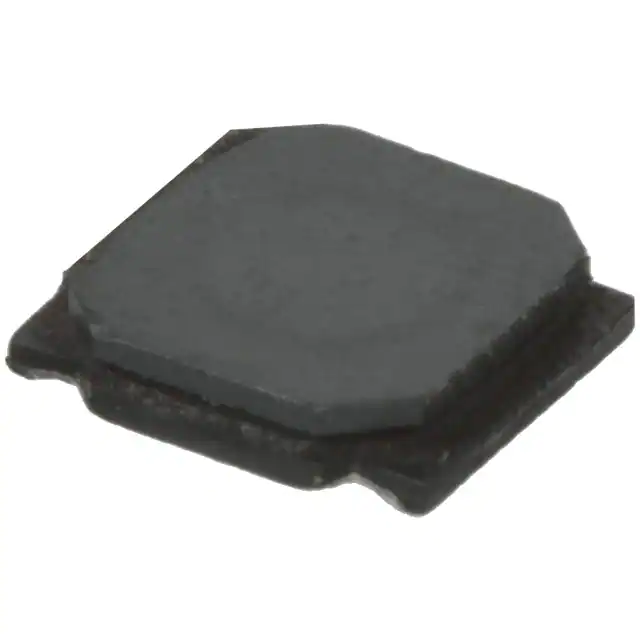

NR4010T4R7MFIXED IND 4.7UH 750MA 252MOHM SM |
4,300 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 900mA | Shielded | 252mOhm Max | - | 47MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
-Height-1.20mm.jpg)
|
1277AS-H-R68M=P2FIXED IND 680NH 3.5A 35 MOHM SMD |
1,456 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 3.5 A | 4.2A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SPH252010H1R0MTFIXED IND 1UH 1.8A 80 MOHM SMD |
1,380 |
|
Datasheet |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.8 A | 2.45A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
