Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2BHN2N7D13LFIXED IND 2.7NH 1.9A 0.02OHM SMD |
3,365 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 2.7 nH | ±0.5nH | 1.9 A | - | Unshielded | 20mOhm Max | 20 @ 250MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
|
LQW2BHN47NJ03LFIXED IND 47NH 450MA 0.23OHM SMD |
1,458 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±5% | 450 mA | - | Unshielded | 230mOhm Max | 40 @ 200MHz | 1.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
|
LQW2BHN56NJ03LFIXED IND 56NH 430MA 0.26OHM SMD |
4,195 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 56 nH | ±5% | 430 mA | - | Unshielded | 260mOhm Max | 40 @ 200MHz | 1.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
|
LQW2BHNR47J03LFIXED IND 470NH 160MA 2.8OHM SMD |
3,602 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 470 nH | ±5% | 160 mA | - | Unshielded | 2.8Ohm Max | 15 @ 25.2MHz | 350MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
SWPA4030S3R3MTFIXED IND 3.3UH 2.4A 52MOHM SMD |
4,426 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.4 A | 3.6A | Shielded | 52mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
NRS6028T680MMGJVFIXED IND 68UH 770MA 546MOHM SMD |
100 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 800mA | Shielded | 546mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
DFE21CCNR33MELLFIXED IND 0.33UH 5.4A |
2,323 |
|
Datasheet |
DFE21CCN_EL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 4.6 A | 5.4A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
VLS201612ET-100MFIXED IND 10UH 470MA 1.026OHM SM |
1,337 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 470 mA | 470mA | Shielded | 1.026Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
VLS2010ET-2R2M-CAFIXED IND 2.2UH 1.05A 228MOHM SM |
2,716 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.05 A | 1A | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LMLP07A7M1R0DTASFIXED IND 1UH 11A 10 MOHM SMD |
4,572 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 11 A | 20A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SWPA4030S100MTFIXED IND 10UH 1.5A 130MOHM SMD |
1,710 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 2.4A | Shielded | 130mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SWPA4020S4R7MTFIXED IND 4.7UH 1.34A 98MOHM SMD |
1,837 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.34 A | 2.5A | Shielded | 98mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
WPN252012H2R2MTFIXED IND 2.2UH 1.9A 120MOHM SMD |
3,053 |
|
Datasheet |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 3A | Shielded | 120mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
WPN201610U2R2MTY01FIXED IND 2.2UH 2A 138 MOHM SMD |
4,755 |
|
Datasheet |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 2.6A | Shielded | 138mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
WPN201610M2R2MTFIXED IND 2.2UH 1.6A 160MOHM SMD |
1,617 |
|
Datasheet |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.6 A | 2A | Shielded | 160mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

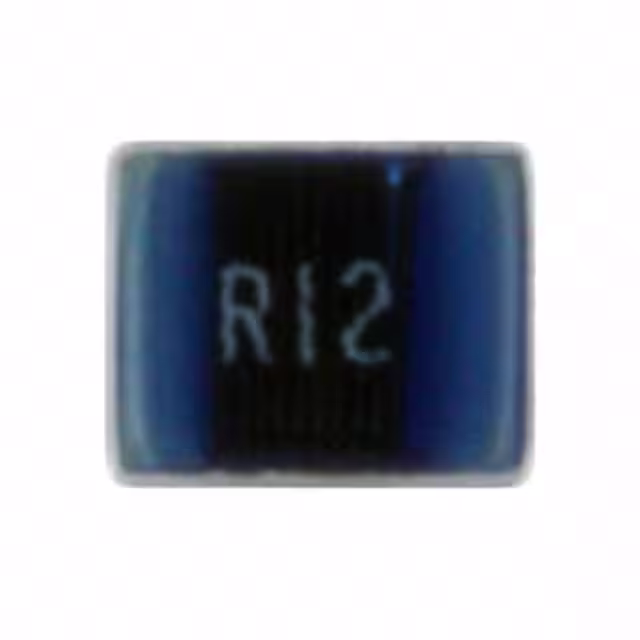

744762212AFIXED IND 120NH 800MA 200MOHM SM |
3,194 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 800 mA | - | Unshielded | 200mOhm Max | 45 @ 100MHz | 950MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
.jpg)
|
744760322AFIXED IND 2.2UH 110MA 3.1OHM SMD |
3,671 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 110 mA | - | Unshielded | 3.1Ohm Max | 15 @ 7.96MHz | 110MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744758382AFIXED IND 8.2UH 320MA 2.6OHM SMD |
1,968 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 320 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.96MHz | 50MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744758410AFIXED IND 10UH 300MA 2.8 OHM SMD |
4,978 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 300 mA | - | Unshielded | 2.8Ohm Max | 15 @ 2.52MHz | 40MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744760327AFIXED IND 2.7UH 100MA 3.5OHM SMD |
4,819 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 100 mA | - | Unshielded | 3.5Ohm Max | 15 @ 7.96MHz | 100MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
