Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN6N8G8ZDFIXED IND 6.8NH 1.9A 0.04OHM SMD |
4,570 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.8 nH | ±2% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 250MHz | 6.65GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
BDHE002520102R2MQ1FIXED IND 2.2UH 2.5A 97 MOHM SMD |
3,599 |
|
Datasheet |
BDHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.5 A | 3A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NRH3010T6R8MNFIXED IND 6.8UH 745MA 300MOHM SM |
3,777 |
|
- |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 745 mA | 700mA | Shielded | 300mOhm Max | - | 44MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
AISC-0805-R33J-TFIXED IND 330NH 310MA 1.4OHM SMD |
3,283 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 310 mA | - | Unshielded | 1.4Ohm Max | 40 @ 250MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|

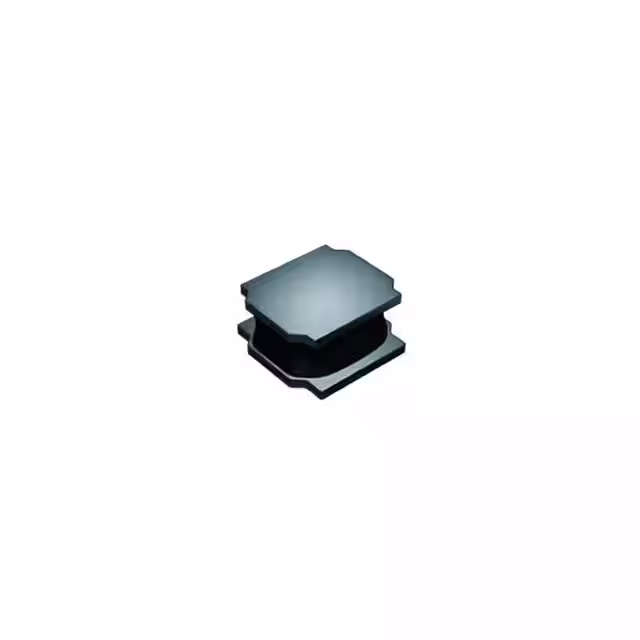

LSXND3030QKT3R3MNGFIXED IND 3.3UH 1.21A 93.6 MOHM |
4,621 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.23 A | 1.21A | Shielded | 93.6mOhm Max | - | 49MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AISC-0805-R10G-TFIXED IND 100NH 400MA 460MOHM SM |
3,008 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 400 mA | - | Unshielded | 460mOhm Max | 50 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
LQG18HHR27J00DFIXED IND 270NH 200MA 1.9OHM SMD |
4,254 |
|
Datasheet |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 270 nH | ±5% | 200 mA | - | Unshielded | 1.9Ohm Max | 14 @ 100MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AISC-0805-R56G-TFIXED IND 560NH 230MA 1.9OHM SMD |
2,406 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±2% | 230 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 320MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
744761215AFIXED IND 150NH 280MA 920MOHM SM |
2,271 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 280 mA | - | Unshielded | 920mOhm Max | 35 @ 150MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
MLP2016S1R5MT0S1FIXED IND 1.5UH 1.2A 117MOHM SMD |
3,139 |
|
Datasheet |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.2 A | - | Shielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASPI-2010-4R7M-TFIXED IND 4.7UH 820MA 479MOHM SM |
3,881 |
|
Datasheet |
ASPI-2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 820 mA | 850mA | Shielded | 479mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSXND5050XATR47NMGFIXED IND 470NH 5A 10 MOHM SMD |
1,856 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 5 A | 9A | Shielded | 13mOhm Max | - | 185MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
.jpg)
|
LQW2UASR56G0CLFIXED IND 560NH 400MA 1.33OHM SM |
2,071 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 560 nH | ±2% | 400 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR47G0CLFIXED IND 470NH 470MA 1.19OHM SM |
4,963 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 470 nH | ±2% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LQH2MCN180K02LFIXED IND 18UH 190MA 2.34OHM SMD |
3,003 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±10% | 190 mA | - | Unshielded | 2.34Ohm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
11R102CFIXED IND 1UH 3A 20 MOHM TH |
4,990 |
|
Datasheet |
1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1 µH | ±20% | 3 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
NRS6012T220MMGJFIXED IND 22UH 650MA 558MOHM SMD |
4,307 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 760mA | Shielded | 558mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
.jpg)
|
VLS201610HBX-R24M-1FIXED IND 240NH 3.7A 30 MOHM SMD |
1,563 |
|
Datasheet |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 240 nH | ±20% | 3.7 A | 4.82A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASPI-2012-100M-TFIXED IND 10UH 490MA 785MOHM SMD |
1,897 |
|
Datasheet |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 490 mA | 720mA | Shielded | 785mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
AISM-1812-2R2K-TFIXED IND 2.2UH 380MA 700MOHM SM |
4,253 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
