Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXBH10050HL100MFIXED IND 10UH 4.1A 32.5MOHM SMD |
250 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.1 A | 4.7A | Shielded | 25mOhm | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
744045820WE-LQ SMT INDUCTOR SIZE 1812; L |
154 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 82 µH | ±10% | 300 mA | 570mA | Unshielded | 2.3Ohm Max | 55 @ 1MHz | 12MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
PM74SH-471M-RCFIXED IND 470UH 320MA 1.1OHM SMD |
990 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 320 mA | 220mA | Shielded | 1.1Ohm Max | 80 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

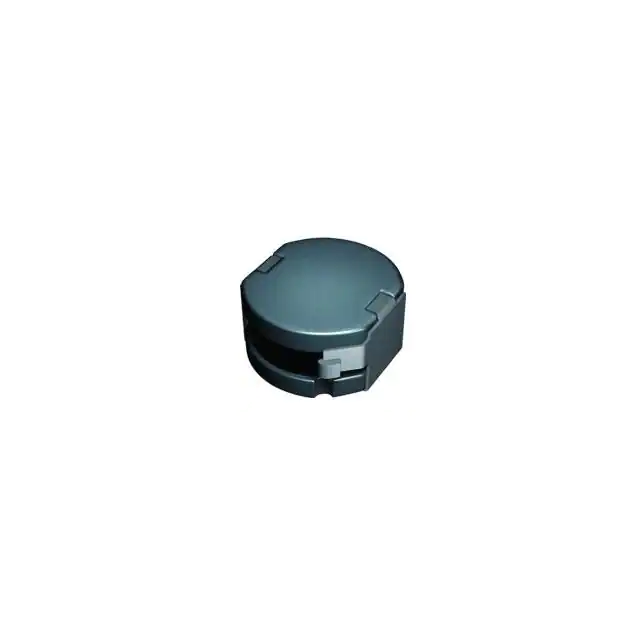

LSXBH10050HL101MFIXED IND 100UH 1.2A 271.7 MOHM |
490 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.3A | Shielded | 209mOhm | - | 4.6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
F1C1-201208-1R5MFIXED IND 1.5UH 1.9A 135 MOHM |
450 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 1.9 A | 2.5A | Shielded | 135mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
AIUR-02H-4R7KFIXED IND 4.7UH 2.5A 34 MOHM TH |
431 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 2.5 A | 4.6A | Unshielded | 34mOhm Max | 15 @ 7.96MHz | - | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|

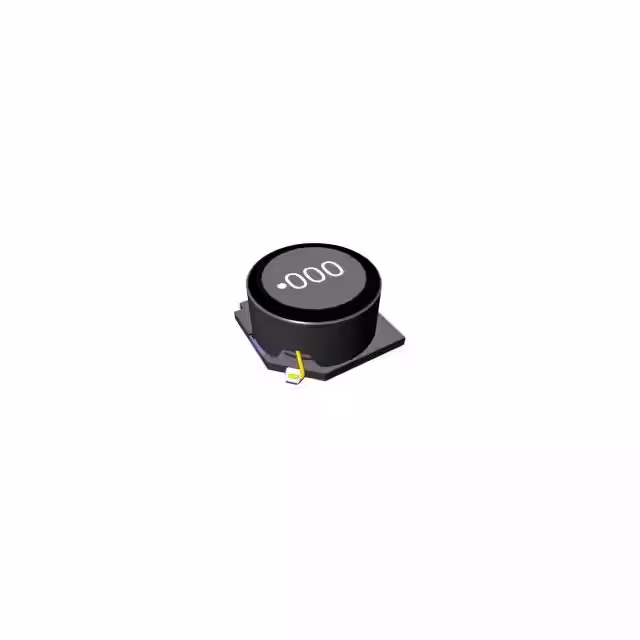

LSRNJ10165GL6R8NNYFIXED IND 6.8UH 5.22A 16.8 MOHM |
1,806 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 5.22 A | 6A | Shielded | 16.8mOhm Max | - | 20.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
SRR0603-1R5MLFIXED IND 1.5UH 2.2A 32 MOHM SMD |
1,698 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.2 A | 3.5A | Shielded | 32mOhm Max | 20 @ 7.96MHz | 95MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
SRR0805-560KFIXED IND 56UH 680MA 380MOHM SMD |
1,000 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 680 mA | 950mA | Shielded | 380mOhm Max | 30 @ 2.52MHz | 9.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-331KFIXED IND 330UH 240MA 1.8OHM SMD |
990 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 240 mA | 380mA | Shielded | 1.8Ohm Max | 36 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-270YFIXED IND 27UH 1A 200 MOHM SMD |
975 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±15% | 1 A | 1.4A | Shielded | 200mOhm Max | 35 @ 2.52MHz | 15.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-102KFIXED IND 1MH 150MA 5 OHM SMD |
894 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 150 mA | 240mA | Shielded | 5Ohm Max | 35 @ 252kHz | 2.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
DRC-V-182KFIXED IND 1.8MH 270MA 6.4OHM TH |
500 |
|
Datasheet |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 270 mA | 80mA | Unshielded | 6.4Ohm Max | 20 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
PF0580.332NLFIXED IND 3.3UH 1.8A 63 MOHM SMD |
250 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±15% | 1.8 A | 1.8A | Unshielded | 63mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

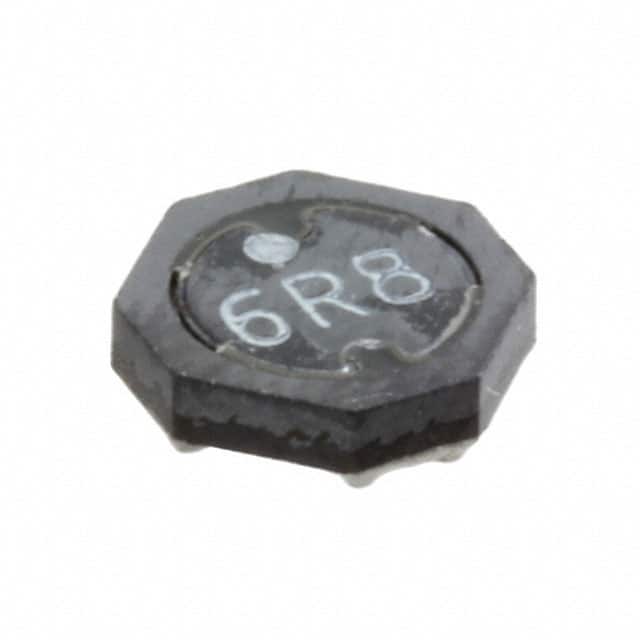

SRU6018-6R8YFIXED IND 6.8UH 1.9A 60 MOHM SMD |
1,400 |
|
Datasheet |
SRU6018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.9 A | 1.2A | Shielded | 60mOhm Max | 8 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.079" (2.00mm) |
|

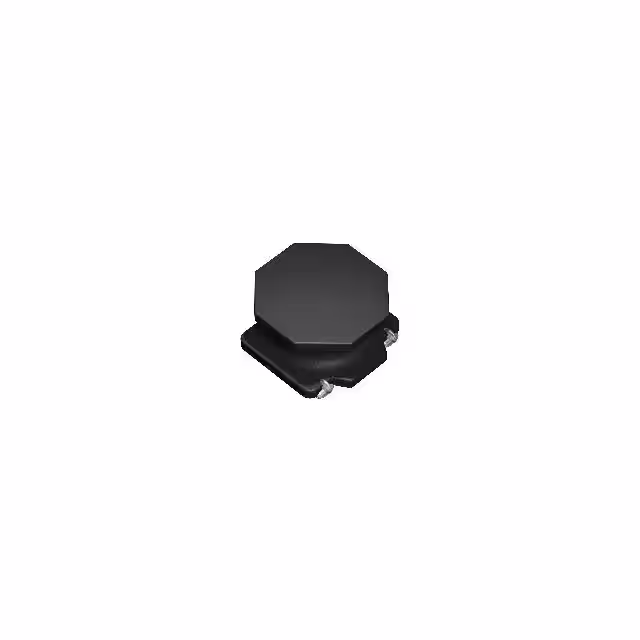

LCDND4040MKT2R2MMFIXED IND 2.2UH 2.8A 79MOHM SMD |
1,000 |
|
Datasheet |
LCDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 3.8A | Unshielded | 79mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRR0805-820KFIXED IND 82UH 540MA 550MOHM SMD |
995 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 540 mA | 740mA | Shielded | 550mOhm Max | 28 @ 2.52MHz | 8.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
LCDND4040WKT4R7MMFIXED IND 4.7UH 2.5A 107MOHM SMD |
700 |
|
Datasheet |
LCDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 2.5 A | 3.5A | Unshielded | 107mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LCDND4040WKT1R5MMFIXED IND 1.5UH 4.1A 41MOHM SMD |
685 |
|
Datasheet |
LCDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 4.1 A | 7A | Unshielded | 41mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
2176641-9FIXED IND 6.8UH 2A 0.104OHM SMD |
1,000 |
|
Datasheet |
3627, Sigma Inductors | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2 A | - | Unshielded | 104mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2220 | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
