Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPLA7030Q-330MTFIXED IND 33UH 2A 240 MOHM SMD |
505 |
|
Datasheet |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 33 µH | ±20% | 2 A | 2.5A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
DRC-0807-100K-ULRADIAL INDUCTOR WITH LEADS, 10.0 |
500 |
|
Datasheet |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.2 A | 2.5A | Unshielded | 31mOhm Max | 20 @ 2.52MHz | 19MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
LMLP1011M3R3DTASFIXED IND 3.3UH 10A 11.8MOHM SMD |
490 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 10 A | 16A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
PA5402.822NLTFIXED IND 8.2UH 2A 180 MOHM SMD |
438 |
|
Datasheet |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 2 A | 2.5A | Shielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
DRC-0807-471J-ULRADIAL INDUCTOR WITH LEADS, 470H |
296 |
|
Datasheet |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 390 mA | 340mA | Unshielded | 1Ohm Max | 10 @ 796kHz | 2.3MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
|
AMDLA7030S-4R7MTFIXED IND 4.7UH 5A 33 MOHM SMD |
190 |
|
Datasheet |
AMDLA7030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 5 A | 5.5A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

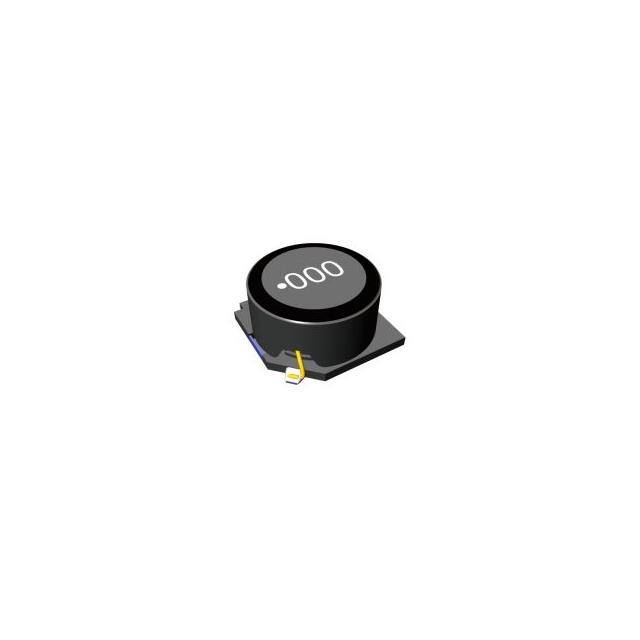

LSRNJ10145GL6R8NNYFIXED IND 6.8UH 4.22A 24MOHM SMD |
1,490 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 4.22 A | 5.05A | Shielded | 24mOhm Max | - | 23.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL220MNYFIXED IND 22UH 2.55A 62.4MOHM SM |
1,489 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.55 A | 2.87A | Shielded | 62.4mOhm Max | - | 13.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
RL822-6R8K-RCFIXED IND 6.8UH 2.1A 35 MOHM TH |
1,000 |
|
Datasheet |
RL822 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.1 A | - | Unshielded | 35mOhm Max | 20 @ 7.96MHz | 29MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
SRU3017-330YFIXED IND 33UH 470MA 430MOHM SMD |
800 |
|
Datasheet |
SRU3017 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 470 mA | 250mA | Shielded | 430mOhm | 20 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.079" (2.00mm) |
|

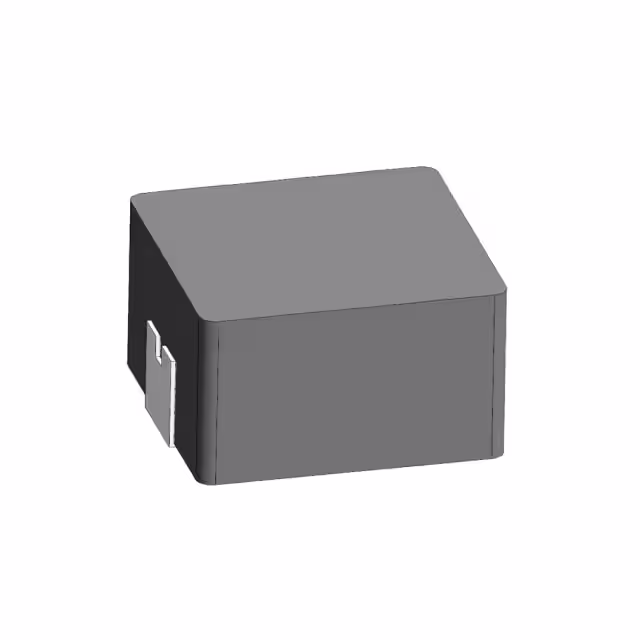

AMDLA4530Q-R47MTFIXED IND 470NH 16A 6.4 MOHM SMD |
750 |
|
Datasheet |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 16 A | 11A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|

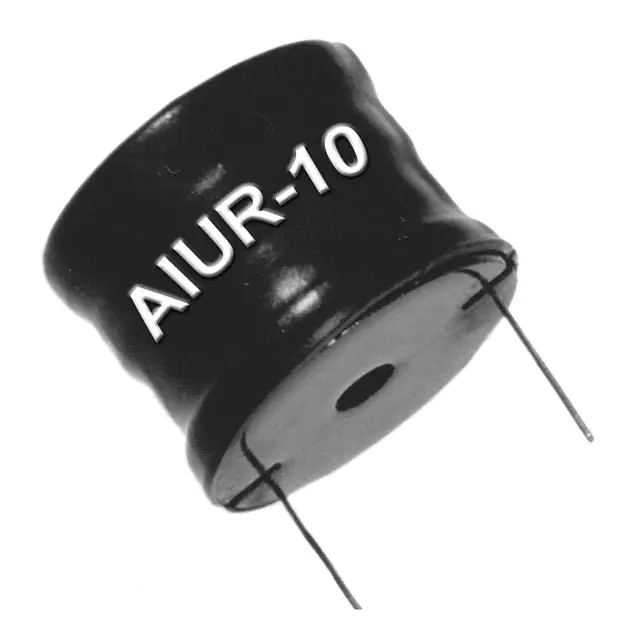

AIUR-10-182KFIXED IND 1.8MH 160MA 6.12OHM TH |
715 |
|
Datasheet |
AIUR-10 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 160 mA | - | Unshielded | 6.12Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) |
|
7447720152WE-TI RADIAL LEADED WIRE WOUND I |
237 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 1.5 mH | ±5% | 370 mA | 420mA | Unshielded | 3Ohm Max | - | 1.3MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRU3014-1R5YFIXED IND 1.5UH 1.55A 63MOHM SMD |
200 |
|
Datasheet |
SRU3014 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.55 A | 1.6A | Shielded | 63mOhm Max | 12 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.063" (1.60mm) |
|
|
7447720121WE-TI RADIAL LEADED WIRE WOUND I |
140 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 120 µH | ±10% | 1.3 A | 1.4A | Unshielded | 280mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720033WE-TI RADIAL LEADED WIRE WOUND I |
109 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 5 A | 8.5A | Unshielded | 24mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720561WE-TI RADIAL LEADED WIRE WOUND I |
1,820 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 560 µH | ±10% | 610 mA | 700mA | Unshielded | 1.22Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRU2016-3R0YFIXED IND 3UH 1.5A 135 MOHM SMD |
990 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 1.5 A | 870mA | Shielded | 135mOhm Max | 8 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|
SDR1006-391KLFIXED IND 390UH 480MA 1.3OHM SMD |
794 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 480 mA | 800mA | Unshielded | 1.3Ohm Max | 12 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-122KLFIXED IND 1.2MH 210MA 4.2OHM SMD |
683 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 210 mA | 480mA | Unshielded | 4.2Ohm Max | 31 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
