Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

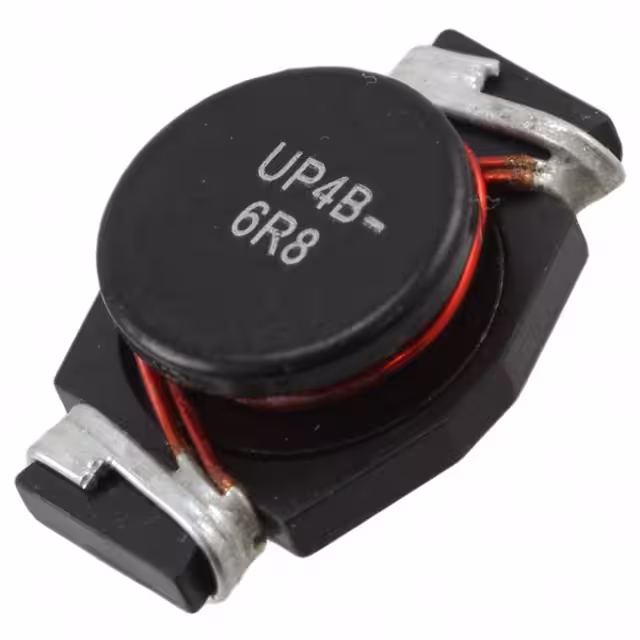

UP4B-6R8-RFIXED IND 6.8UH 8.3A 10 MOHM SMD |
3,672 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8.3 A | 14.1A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
MPXV1D1770L220FIXED IND 22UH 10.5A 22.9MOHM SM |
194 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 10.5 A | 12A | Shielded | 22.9mOhm Max | - | 4.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
78433290360WE-CHSA PERFORMANCE SMD HIGH CUR |
4,420 |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.6 µH | ±20% | 12.2 A | 20.6A | Shielded | 8.2mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
2100LL-270-H-RCFIXED IND 27UH 7.3A 12 MOHM TH |
1,907 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 27 µH | ±15% | 7.3 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
SHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
2,074 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 24 µH | ±20% | 2 A | - | Unshielded | 41.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | 0.630" (16.00mm) |
|
1537KFIXED IND 75UH 2A 128 MOHM TH |
1,315 |
|
Datasheet |
1537 | Axial | Bulk | Active | Molded | Ferrite | 75 µH | ±5% | 2 A | - | Unshielded | 128mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.540" Dia x 1.250" L (13.72mm x 31.75mm) | - |
|
HCM1A1707V2-100-RFIXED IND 10UH 12A 10MOHM SMD |
3,692 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 12 A | 17A | Shielded | 10mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
HCM1A1707V2-470-RFIXED IND 47UH 5.5A 46 MOHM SMD |
3,556 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 5.5 A | 8A | Shielded | 46mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
2200HT-390-H-RCFIXED IND 39UH 8.1A 26 MOHM TH |
4,954 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 39 µH | ±15% | 8.1 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
744117FIXED IND 390UH 2A 250 MOHM TH |
100 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 390 µH | ±20% | 2 A | 800mA | Unshielded | 250mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - |
|
177CDMCCDS-4R7MCFIXED IND 4.7UH 18A 4.83MOHM SMD |
107 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 18 A | 35A | Shielded | 4.83mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
2100HT-151-V-RCFIXED IND 150UH 3.3A 110 MOHM TH |
1,443 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 3.3 A | - | Shielded | 110mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

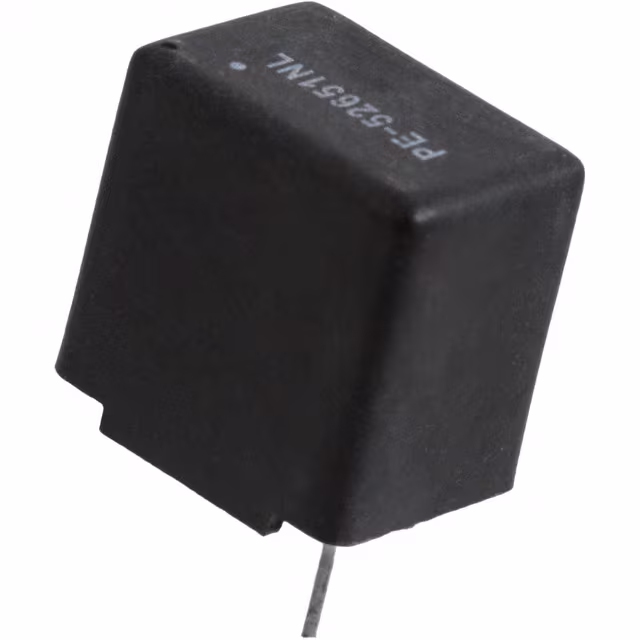

PE-52651NLFIXED IND 1MH 500MA 2.6 OHM TH |
2,903 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 1 mH | ±20% | 500 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
MPX1D1740LR47FIXED IND 470NH 34A 1.8MOHM SMD |
3,134 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 34 A | 75A | Shielded | 1.8mOhm Max | - | 46MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
744107FIXED IND 557UH 1.1A 700 MOHM TH |
3,376 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 557 µH | ±20% | 1.1 A | 700mA | Unshielded | 700mOhm Max | - | 2.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.886" Dia x 0.472" W (22.50mm x 12.00mm) | - |
|
|
2321-H-RCFIXED IND 560UH 3.6A 140 MOHM TH |
1,226 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 560 µH | ±15% | 3.6 A | - | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
ETQ-PAMR33JFWFIXED IND 0.33UH 103A 0.42 MOHM |
2,375 |
|
Datasheet |
PCC-M15A0MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 69 A | 103A | Shielded | 0.48mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
4922R-07LFIXED IND 3.3UH 3.23A 38MOHM SMD |
3,132 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±15% | 3.23 A | 3.23A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
HCM1A1305-100-RFIXED IND 10UH 6.8A 21.9MOHM SMD |
4,476 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6.8 A | 13A | Shielded | 21.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
MPXV1D1740L470FIXED IND 47UH 4A 125.7 MOHM SMD |
1,718 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 4 A | 6.5A | Shielded | 125.7mOhm Max | - | 2.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
