Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCLA1005V2-560-RFIXED IND 56NH 200MA 1.2 OHM SMD |
800 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 56 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 750MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCLA2012V1-6R8-RFIXED IND 6.8UH 15MA 1.05OHM SMD |
780 |
|
Datasheet |
MCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 6.8 µH | ±10% | 15 mA | - | Unshielded | 1.05Ohm Max | 30 @ 4MHz | 29MHz | AEC-Q200 | -40°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCLA1005V2-1R5-RFIXED IND 1.5NH 300MA 100MOHM SM |
755 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MLG0603P1N0ST000FIXED IND 1NH 1A 70 MOHM SMD |
744 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1 nH | ±0.3nH | 1 A | - | Unshielded | 70mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
7447860112GWE-MK MULTILAYER CERAMIC SMT IND |
744 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±2% | 300 mA | - | Unshielded | 280mOhm Max | 12 @ 100MHz | 2.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MCLA1005V2-270-RFIXED IND 27NH 300MA 700MOHM SMD |
700 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 27 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|

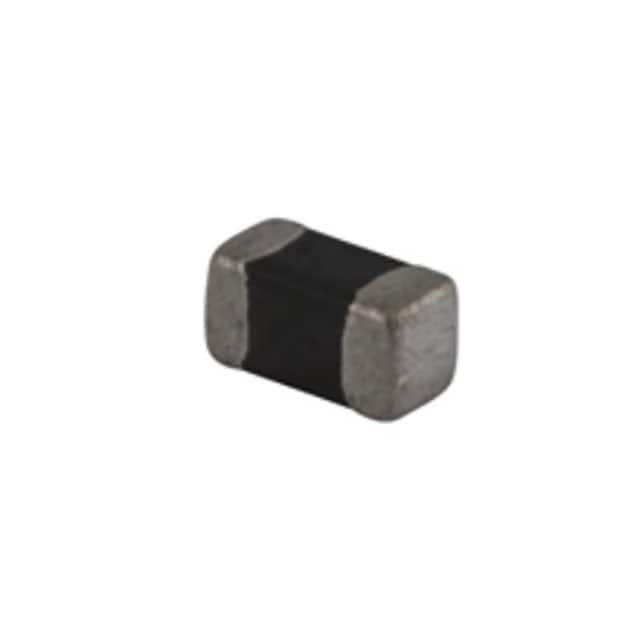

MCLA1608V1-3R9-RFIXED IND 3.9UH 15MA 1.3 OHM SMD |
642 |
|
Datasheet |
MCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.9 µH | ±10% | 15 mA | - | Unshielded | 1.3Ohm Max | 25 @ 10MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCLA1608V2-471-RFIXED IND 470NH 150MA 3.6OHM SMD |
620 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±5% | 150 mA | - | Unshielded | 3.6Ohm Max | 8 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLG0603P33NJTD25FIXED IND 33NH 130MA 2.2 OHM SMD |
605 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 33 nH | ±5% | 130 mA | - | Unshielded | 2.2Ohm Max | 10 @ 300MHz | 1.8GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
 MHQ Series.jpg)
|
MHQ0402PSA0N6BT000FIXED IND 0.6NH 600MA 150MOHM SM |
587 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 0.6 nH | ±0.1nH | 600 mA | - | Shielded | 150mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
.jpg)
|
LQG15WZ9N1H02DFIXED IND 9.1NH 550MA 0.17OHM SM |
572 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 9.1 nH | ±3% | 550 mA | - | Unshielded | 170mOhm Max | - | 3.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
MHQ0402PSA3N1BT000FIXED IND 3.1NH 250MA 650MOHM SM |
540 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.1 nH | ±0.1nH | 250 mA | - | Shielded | 650mOhm Max | 10 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
LQP03TQ1N6B02DFIXED IND 1.6NH 650MA 100MOHM SM |
500 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 1.6 nH | ±0.1nH | 650 mA | - | Unshielded | 100mOhm Max | 17 @ 500MHz | 15GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
|
|
MLG0603S7N5JTD25FIXED IND 7.5NH 200MA 700MOHM SM |
460 |
|
Datasheet |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±5% | 200 mA | - | Unshielded | 700mOhm Max | 5 @ 100MHz | 4.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
-,65-White-Field.jpg)
|
MCL1005-180-RFIXED IND 18NH 300MA 600MOHM SMD |
434 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 18 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCLA1608V2-1R0-RFIXED IND 1NH 500MA 50 MOHM SMD |
350 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 nH | ±0.3nH | 500 mA | - | Unshielded | 50mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MHQ0402PSA3N6BT000FIXED IND 3.6NH 200MA 650MOHM SM |
345 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.6 nH | ±0.1nH | 200 mA | - | Shielded | 650mOhm Max | 10 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MHQ0402PSA4N1BT000FIXED IND 4.1NH 200MA 800MOHM SM |
339 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.1 nH | ±0.1nH | 200 mA | - | Shielded | 800mOhm Max | 10 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
MCQ1V1608-R820-RFIXED IND 820NH 50MA 1 OHM SMD |
325 |
|
Datasheet |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±10% | 50 mA | - | Unshielded | 1Ohm Max | 20 @ 25MHz | 85MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA1608V2-331-RFIXED IND 330NH 150MA 2.8OHM SMD |
320 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±5% | 150 mA | - | Unshielded | 2.8Ohm Max | 8 @ 50MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
