Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720680FIXED IND 68UH 1.8A 160 MOHM TH |
208 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±10% | 1.8 A | 1.9A | Unshielded | 160mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447722473FIXED IND 47MH 60MA 112 OHM TH |
204 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 mH | ±5% | 60 mA | 70mA | Unshielded | 112Ohm Max | - | 220kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.394" (10.00mm) |
|
SRR4028-1R2YFIXED IND 1.2UH 3.1A 20 MOHM SMD |
189 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.1 A | 2.56A | Shielded | 20mOhm Max | 9.34 @ 7.96MHz | 176MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
7447720047FIXED IND 4.7UH 4.5A 30 MOHM TH |
181 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 4.5 A | 7.2A | Unshielded | 30mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720221FIXED IND 220UH 1A 450 MOHM TH |
155 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 1 A | 1A | Unshielded | 450mOhm Max | - | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720472FIXED IND 4.7MH 210MA 9.5 OHM TH |
131 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 210 mA | 240mA | Unshielded | 9.5Ohm Max | - | 830kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720331FIXED IND 330UH 820MA 700MOHM TH |
106 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 820 mA | 880mA | Unshielded | 700mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720471FIXED IND 470UH 660MA 970MOHM TH |
101 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 660 mA | 730mA | Unshielded | 970mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720101FIXED IND 100UH 1.3A 220 MOHM TH |
2,159 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 1.3 A | 1.6A | Unshielded | 220mOhm Max | - | 6.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720103FIXED IND 10MH 130MA 24 OHM TH |
4,088 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 mH | ±5% | 130 mA | 160mA | Unshielded | 24Ohm Max | - | 520kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRR4018-2R2YFIXED IND 2.2UH 2.1A 55 MOHM SMD |
1,336 |
|
Datasheet |
SRR4018 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.1 A | 2.1A | Shielded | 55mOhm Max | 8 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
7440450018FIXED IND 1.8UH 1.7A 100MOHM SMD |
1,029 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 1.7 A | 3.5A | Unshielded | 100mOhm Max | 45 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045152FIXED IND 1.5MH 55MA 38.5OHM SMD |
950 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 55 mA | 95mA | Unshielded | 38.5Ohm Max | 35 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045002FIXED IND 2.2UH 1.6A 110MOHM SMD |
770 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.6 A | 2.75A | Unshielded | 110mOhm Max | 40 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

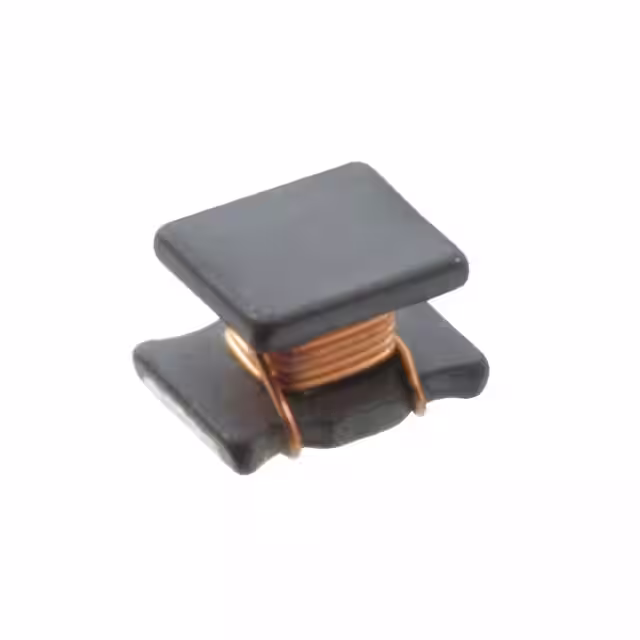

744045008FIXED IND 8.2UH 1A 250 MOHM SMD |
647 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1 A | 1.6A | Unshielded | 250mOhm Max | 36 @ 1MHz | 34MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045681FIXED IND 680UH 90MA 16.8OHM SMD |
601 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 90 mA | 200mA | Unshielded | 16.8Ohm Max | 45 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045821FIXED IND 820UH 85MA 20 OHM SMD |
575 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 85 mA | 150mA | Unshielded | 20Ohm Max | 50 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
7440450015FIXED IND 1.5UH 1.75A 90MOHM SMD |
312 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.75 A | 4A | Unshielded | 90mOhm Max | 42 @ 1MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
7440450027FIXED IND 2.7UH 1.5A 120MOHM SMD |
213 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.5 A | 2.7A | Unshielded | 120mOhm Max | 40 @ 1MHz | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045003FIXED IND 3.3UH 1.4A 130MOHM SMD |
180 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 2.7A | Unshielded | 130mOhm Max | 45 @ 1MHz | 58MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
