Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPS6225-565MRCFIXED IND 5.6MH 90MA 36OHM SM |
847 |
|
Datasheet |
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 5.6 mH | ±20% | 90 mA | 83mA | Shielded | 36Ohm Max | - | 720kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-185MRCFIXED IND 1.8MH 140MA 11.7OHM SM |
431 |
|
Datasheet |
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.8 mH | ±20% | 140 mA | 110mA | Shielded | 11.7Ohm Max | - | 1.7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|

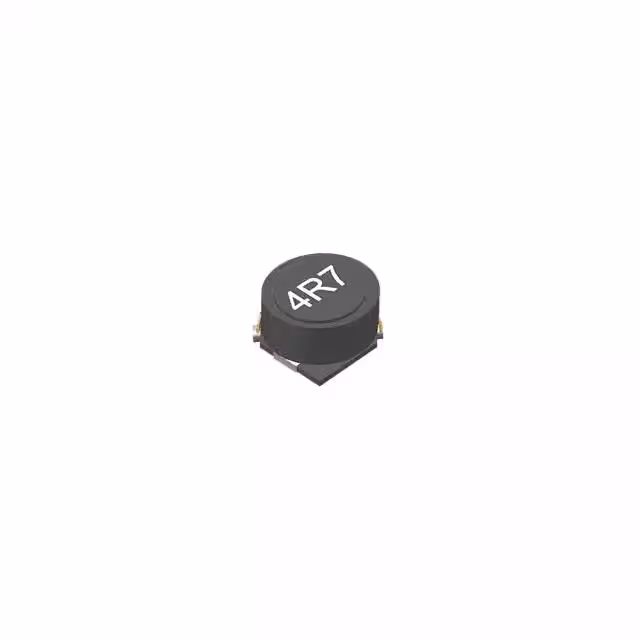

CTSLF0628TF-4R7M4.7UH SMD SHLDED POWER INDUCTOR |
2,000 |
|
Datasheet |
CTSLF0628TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.5 A | 1.6A | Shielded | 28.4mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTCDRH8D43F-6R8N6.8UH SMD SHIELDED POWR INDUCTOR |
1,580 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 4.2A | Shielded | 25mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTCDRH8D43F-470N47UH SMD SHIELDED POWER INDUCTOR |
800 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±30% | - | 1.4A | Shielded | 150mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTCDRH8D43F-150N15UH SMD SHIELDED POWER INDUCTOR |
800 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | - | 2.6A | Shielded | 53mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTCDRH8D43F-220N22UH SMD SHIELDED POWER INDUCTOR |
114 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | - | 2.1A | Shielded | 75mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTSLF0628TF-220M22UH SMD SHLDED POWER INDUCTOR |
109 |
|
Datasheet |
CTSLF0628TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.3 A | 770mA | Shielded | 104mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SER1360-331KLDFIXED IND 330NH 16.9A 0.85MOHM |
2,822 |
|
Datasheet |
SER1360 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 nH | ±10% | 16.9 A | 36A | Shielded | 0.85mOhm Max | - | 200MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.496" W (12.70mm x 12.60mm) | 0.228" (5.80mm) |
|
|
SER1360-651KLDFIXED IND 650NH 16.9A 0.85MOHM |
1,144 |
|
Datasheet |
SER1360 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 650 nH | ±10% | 16.9 A | 23A | Shielded | 0.85mOhm Max | - | 160MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.496" W (12.70mm x 12.60mm) | 0.228" (5.80mm) |
|
CTCDRH8D28F-7R3N7.3UH SMD SHIELDED POWR INDUCTOR |
1,000 |
|
Datasheet |
CTCDRH8D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.3 µH | ±30% | - | 2.8A | Shielded | 38mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.118" (3.00mm) |
|
|
CTCDRH8D28F-100N10UH SMD SHIELDED POWER INDUCTOR |
1,000 |
|
Datasheet |
CTCDRH8D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | - | 2.3A | Shielded | 42mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.118" (3.00mm) |
|
|
CTCDRH8D28F-220N22UH SMD SHIELDED POWER INDUCTOR |
1,000 |
|
Datasheet |
CTCDRH8D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | - | 1.6A | Shielded | 95mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.118" (3.00mm) |
|
CTH6EF-1R5K1.5UH MINI AXL P-LINE INDUCTOR |
5,996 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±10% | 3.1 A | 2.5A | Unshielded | 20mOhm Max | - | 160MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-1R8K1.8UH MINI AXL P-LINE INDUCTOR |
5,650 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±10% | 2.9 A | 2.1A | Unshielded | 20mOhm Max | - | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
CTSLF0732TF-3R3M3.3UH SMD SHLDED POWER INDUCTOR |
2,000 |
|
Datasheet |
CTSLF0732TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.9 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
CTH6EF-680K68UH MINI AXL P-LINE INDUCTOR |
1,700 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±10% | 610 mA | 370mA | Unshielded | 530mOhm Max | - | 4.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-390K39UH MINI AXL P-LINE INDUCTOR |
1,000 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | 880 mA | 480mA | Unshielded | 260mOhm Max | - | 7.1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-101K100UH MINI AXL P-LINE INDUCTR |
700 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 550 mA | 300mA | Unshielded | 670mOhm Max | - | 3.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-221K220UH MINI AXL P-LINE INDUCTOR |
300 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 320 mA | 200mA | Unshielded | 1.9Ohm Max | - | 2.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
