Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTGS54F-2R7M2.7UH SMD UNSHLD POWER INDUCTOR |
3,000 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±20% | 3.4 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
0201DS-7N8XJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
2,448 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 7.8 nH | - | 340 mA | - | Unshielded | 300mOhm Max | 38 @ 900MHz | 9.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
CTGS54F-151K150UH SMD UNSHLD POWER INDUCTOR |
1,985 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | 400 mA | - | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-220K22UH SMD UNSHLD POWER INDUCTOR |
1,505 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 1.1 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-1R5M1.5UH SMD UNSHLD POWER INDUCTOR |
1,500 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 4.7 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-2R2M2.2UH SMD UNSHLD POWER INDUCTOR |
1,500 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 3.8 A | - | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-1R8M1.8UH SMD UNSHLD POWER INDUCTOR |
1,500 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 4 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-6R8M6.8UH SMD UNSHLD POWER INDUCTOR |
1,500 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.1 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-150M15UH SMD UNSHLD POWER INDUCTOR |
1,495 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
0201DS-8N4XJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
1,283 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 8.4 nH | - | 300 mA | - | Unshielded | 350mOhm Max | 35 @ 900MHz | 8.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
LPS6235-185MRCPOWER INDUCTOR, SHIELDED, 20% TO |
867 |
|
Datasheet |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | 1.8 mH | ±20% | 180 mA | 110mA | Shielded | 5.42Ohm Max | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.138" (3.50mm) |
|
|
0201DS-7N1XJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
858 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 7.1 nH | - | 390 mA | - | Unshielded | 250mOhm Max | 36 @ 900MHz | 9.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
CTGS54F-180K18UH SMD UNSHLD POWER INDUCTOR |
505 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±10% | 1.2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
LPS6235-822MRCPOWER INDUCTOR, SHIELDED, 20% TO |
418 |
|
Datasheet |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | 8.2 µH | ±20% | 1.3 A | 2.5A | Shielded | 95mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.138" (3.50mm) |
|
|
LPS6235-685MRCPOWER INDUCTOR, SHIELDED, 20% TO |
406 |
|
Datasheet |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | 6.8 mH | ±20% | 90 mA | 57mA | Shielded | 21.4Ohm Max | - | 800kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.138" (3.50mm) |
|

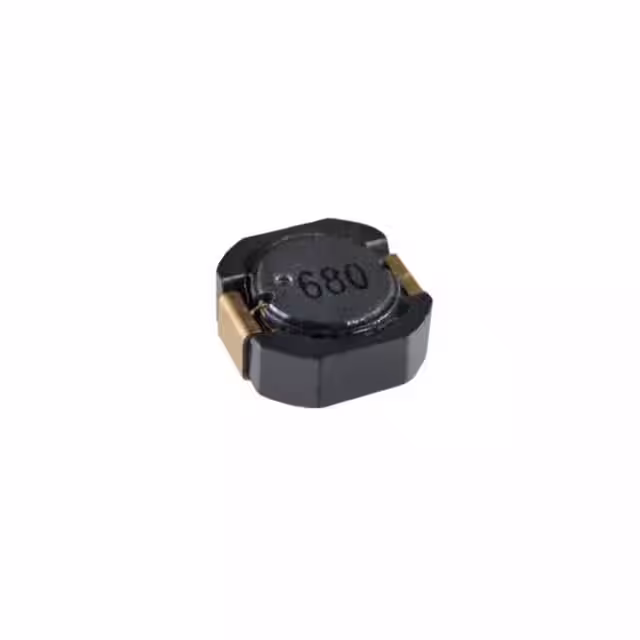

CT921CYF-2R2MSMD SHIELDED POWER INDUCTOR |
2,000 |
|
Datasheet |
ct921cyf | - | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | - | - | - | 24mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
0402CS-6N2XJRWFIXED IND 6.2NH 760MA 83MOHM SM |
66,362 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.2 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 52 @ 900MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-11NXJRWFIXED IND 11NH 640MA 120MOHM SM |
55,885 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 52 @ 900MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-1N9XJRWFIXED IND 1.9NH 1.04A 70MOHM SM |
49,184 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.9 nH | ±5% | 1.04 A | - | Unshielded | 70mOhm Max | 68 @ 900MHz | 11.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-47NXJRWFIXED IND 47NH 150MA 830MOHM SM |
32,731 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±5% | 150 mA | - | Unshielded | 830mOhm Max | 38 @ 900MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
