Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTGS75F-6R8M6.8UH SMD UNSHLD POWER INDUCTOR |
1,500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | - | 3.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-101K100UH SMD UNSHLD POWER INDUCTOR |
1,000 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | - | 720mA | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-271K270UH SMD UNSHLD POWER INDUCTOR |
1,000 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±10% | - | 420mA | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-820K82UH SMD UNSHLD POWER INDUCTOR |
994 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | - | 780mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-390K39UH SMD UNSHLD POWER INDUCTOR |
690 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | - | 1.1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-150K15UH SMD UNSHLD POWER INDUCTOR |
505 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±10% | - | 1.8A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-121K120UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±10% | - | 660mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-471K470UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | - | 340mA | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-470K47UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | - | 1.1A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-151K150UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | - | 580mA | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-680K68UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±10% | - | 840mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-181K180UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | - | 510mA | Unshielded | 710mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-681K680UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±10% | - | 280mA | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CT132SMF-09TJSMD AIR CORE INDUCTOR |
1,005 |
|
Datasheet |
ct132smf | - | Tape & Reel (TR) | Active | Wirewound | - | 90 nH | ±5% | - | - | - | 8.2Ohm | - | 1GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT132SMF-13TJSMD AIR CORE INDUCTOR |
1,005 |
|
Datasheet |
ct132smf | - | Tape & Reel (TR) | Active | Wirewound | - | 206 nH | ±5% | - | - | - | 10.1Ohm | - | 700MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

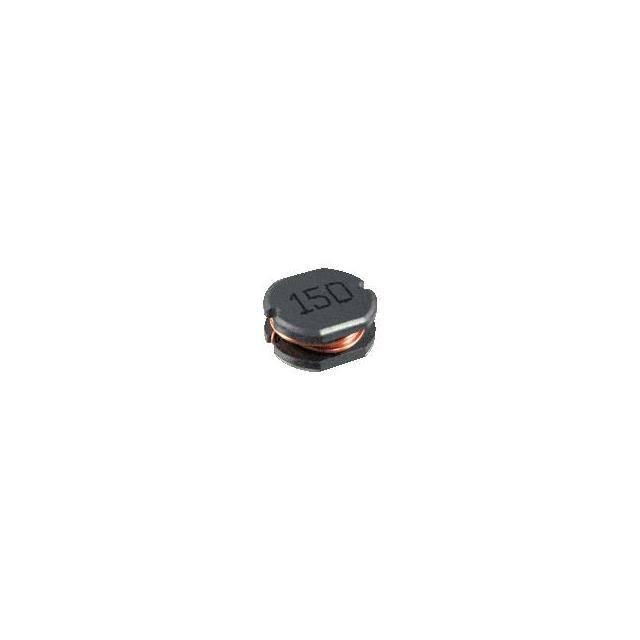

CTGS73F-220M22UH SMD UNSHLD POWER INDUCTOR |
1,000 |
|
Datasheet |
CTGS73F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.07 A | - | Unshielded | 130mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.150" (3.80mm) |
|
CTCDRH127/LDF-7R4N7.4UH SMD SHIELDED POWR INDUCTOR |
500 |
|
Datasheet |
CTCDRH127/LDF | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.4 µH | ±30% | 6.9 A | 7.4A | Shielded | 17.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTC0F-1R0JAXL LEADED CONF COATED INDUCTOR |
500 |
|
Datasheet |
ctc0f | - | Tape & Reel (TR) | Active | - | - | 1 µH | ±5% | - | - | - | 800mOhm | - | 150MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC0F-8R2JAXL LEADED CONF COATED INDUCTOR |
500 |
|
Datasheet |
ctc0f | - | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±5% | - | - | - | 2.2Ohm | - | 26MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTGS73F-151K150UH SMD UNSHLD POWER INDUCTOR |
500 |
|
Datasheet |
CTGS73F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | 400 mA | - | Unshielded | 750mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.150" (3.80mm) |
