Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTLQ2220CF-103M10MH SMD UNSHLD POWER INDUCTOR |
695 |
|
Datasheet |
CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 mH | ±20% | 50 mA | - | Unshielded | 140Ohm Max | - | 500kHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
SER2010-102MLDFIXED IND 1UH 45A 1MOHM SM |
6,883 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 45 A | 42A | Shielded | 1mOhm Max | - | 81MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
FP1008R7-R150-RFIXED IND 150NH 72A 0.12MOHM SMD |
3,984 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 72 A | 56A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
FP1008R7-R120-RFIXED IND 120NH 72A 0.12MOHM SMD |
4,023 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 72 A | 70A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
SER2010-202MLDFIXED IND 2UH 45A 1MOHM SM |
3,078 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±20% | 45 A | 27A | Shielded | 1mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-501MLDFIXED IND 500NH 45A 1MOHM SM |
362 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 500 nH | ±20% | 45 A | 81A | Shielded | 1mOhm | - | 148MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-601MLDFIXED IND 600NH 45A 1MOHM SM |
221 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 600 nH | ±20% | 45 A | 70A | Shielded | 1mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-122MLDFIXED IND 1.2UH 45A 1MOHM SM |
169 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±20% | 45 A | 37A | Shielded | 1mOhm Max | - | 69MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
DRAP125-220-RFIXED IND 22UH 3.95A 42 MOHM SMD |
598 |
|
Datasheet |
DRAP125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 3.95 A | 4.74A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.240" (6.10mm) |
|

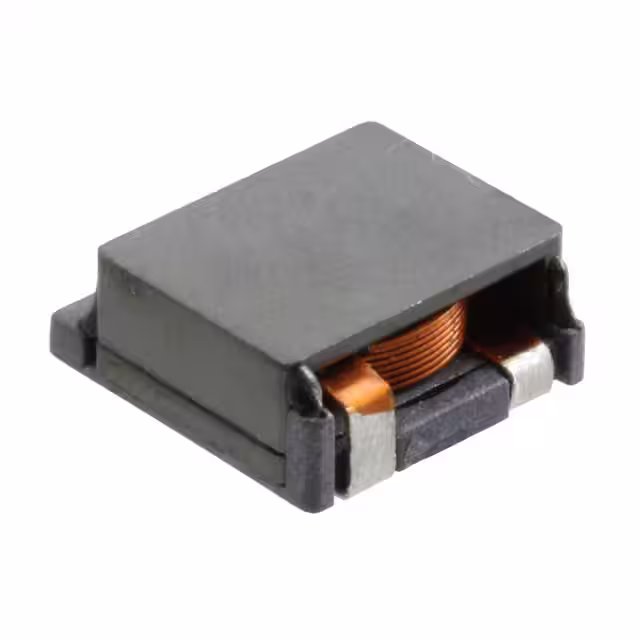

HM65-8R2LFTR13FIXED IND 8.2UH 4.5A 11.4 MOHM |
324 |
|
Datasheet |
HM65 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 8.2 µH | ±20% | 4.5 A | - | Unshielded | 11.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.220" (5.60mm) |
|
DRA74-821-RFIXED IND 820UH 279MA 3.63OHM SM |
3,165 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 279 mA | 327mA | Shielded | 3.63Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

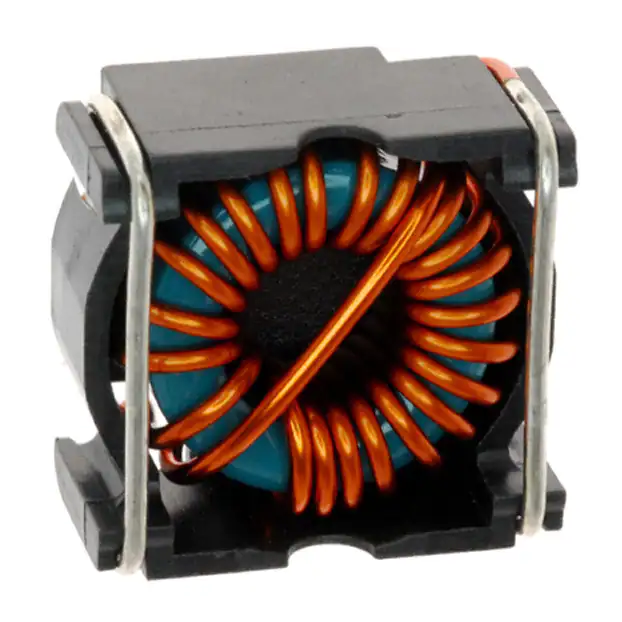

PE-53663NLFIXED IND 9.3UH 7.2A 18.7MOHM SM |
2,892 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PM2206.331NLTFIXED IND 330NH 19A 4.8 MOHM SMD |
1,976 |
|
Datasheet |
PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 19 A | 34A | Unshielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
HM72E-12200HLFTR13FIXED IND 20UH 5A 40.5 MOHM SMD |
610 |
|
- |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 20 µH | ±20% | 5 A | 8A | Unshielded | 40.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
7843331200WE-CHSA SMT HIGH CURRENT INDUCTO |
110 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 5.6 A | 9.1A | Shielded | 33.2mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
B82111B0000C013FIXED IND 8UH 3A 25 MOHM TH |
5,056 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 3 A | - | Unshielded | 25mOhm | - | 145MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
B82111B0000C012FIXED IND 6UH 4A 17 MOHM TH |
3,099 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 4 A | - | Unshielded | 17mOhm | - | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - |
|

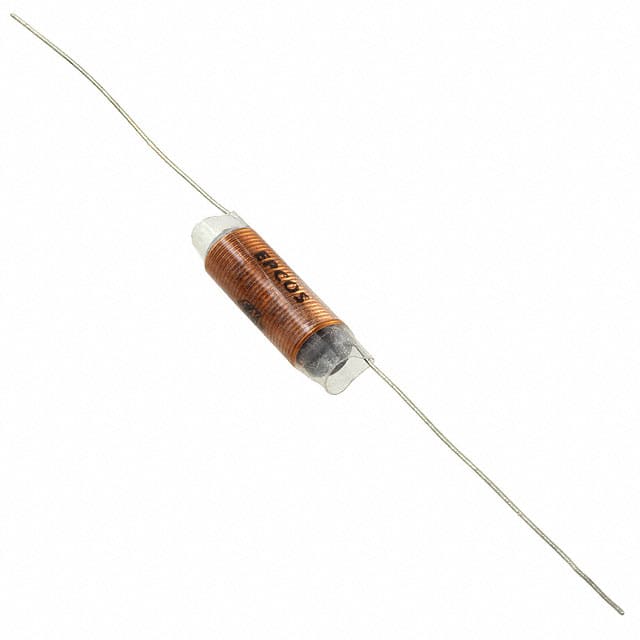

B82111B0000C014FIXED IND 17UH 2A 63 MOHM TH |
155 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 17 µH | ±20% | 2 A | - | Unshielded | 63mOhm | - | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
|
XEL4030-471MECFIXED IND 470NH 15.6A 4.6MOHM SM |
52,222 |
|
Datasheet |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 15.6 A | 15.5A | Shielded | 4.6mOhm Max | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
XAL4030-332MECFIXED IND 3.3UH 6.6A 28.6MOHM SM |
49,497 |
|
Datasheet |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.6 A | 5.5A | Shielded | 28.6mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
