Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL4018-332MECFIXED INDUCTOR 3.3UH SMD |
5,510 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 3.3 µH | ±20% | 3.8 A | 4A | Shielded | 48.1mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-471MECFIXED INDUCTOR 0.47UH SMD |
5,445 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 470 nH | ±20% | 11 A | 11.4A | Shielded | 6.1mOhm Max | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-222MECFIXED INDUCTOR 2.2UH SMD |
5,439 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 2.2 µH | ±20% | 5 A | 5.1A | Shielded | 31.1mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-121MECFIXED INDUCTOR 0.12UH SMD |
5,389 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 120 nH | ±20% | 19.5 A | 24.5A | Shielded | 2mOhm Max | - | 255MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
XGL4015-821MECFIXED INDUCTOR 0.82UH SMD |
5,363 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 820 nH | ±20% | 7.4 A | 7.9A | Shielded | 15.4mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-121MECFIXED INDUCTOR 0.12UH SMD |
5,013 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 120 nH | ±20% | 14.8 A | 22A | Shielded | 2.8mOhm Max | - | 240MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4018-681MECFIXED INDUCTOR 0.68UH SMD |
4,788 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 680 nH | ±20% | 8.8 A | 9.4A | Shielded | 8.9mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-221MECFIXED INDUCTOR 0.22UH SMD |
4,376 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 220 nH | ±20% | 15.6 A | 16.1A | Shielded | 3.2mOhm Max | - | 155MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4015-222MECFIXED INDUCTOR 2.2UH SMD |
4,213 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 2.2 µH | ±20% | 4.5 A | 4.9A | Shielded | 36mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-221MECFIXED INDUCTOR 0.22UH SMD |
4,175 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 220 nH | ±20% | 13 A | 15.2A | Shielded | 4.1mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-681MECFIXED INDUCTOR 0.68UH SMD |
4,089 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 680 nH | ±20% | 8.1 A | 9A | Shielded | 10.1mOhm Max | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-152MECFIXED INDUCTOR 1.5UH SMD |
3,121 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 1.5 µH | ±20% | 5.4 A | 6.3A | Shielded | 23.6mOhm Max | - | 49MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4018-102MECFIXED INDUCTOR 1UH SMD |
1,963 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 1 µH | ±20% | 7.3 A | 7.8A | Shielded | 12.9mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

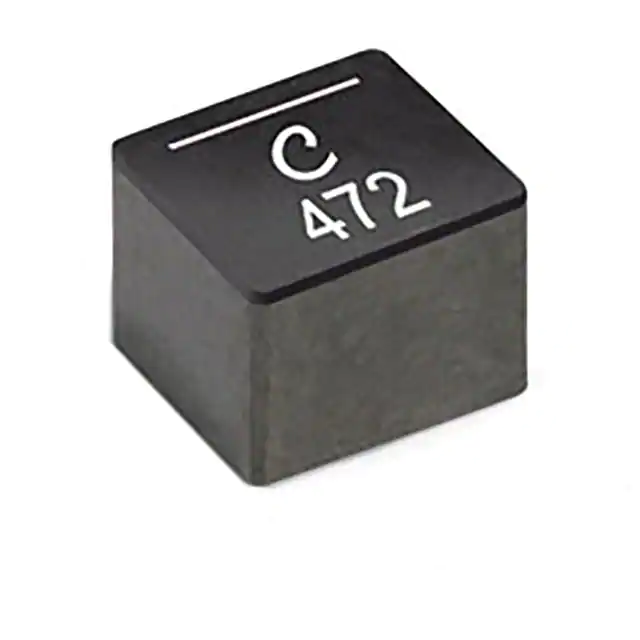

XGL3530-222MECFIXED INDUCTOR 2.2UH SMD |
30,763 |
|
Datasheet |
XGL3530 | Nonstandard | Strip | Active | Molded | - | 2.2 µH | ±20% | 7.2 A | 4A | Shielded | 23mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.118" (3.00mm) |
|
XGL3520-681MECFIXED INDUCTOR 0.68UH SMD |
22,723 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 680 nH | ±20% | 8.9 A | 6.6A | Shielded | 9.7mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
XGL3520-102MECFIXED INDUCTOR 1UH SMD |
12,206 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 1 µH | ±20% | 7.5 A | 5.4A | Shielded | 14.8mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
XGL3520-332MECFIXED INDUCTOR 3.3UH SMD |
9,464 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 3.3 µH | ±20% | 3.7 A | 2.8A | Shielded | 49.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
XGL3520-222MECFIXED INDUCTOR 2.2UH SMD |
9,403 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 2.2 µH | ±20% | 4.2 A | 3.7A | Shielded | 31.8mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
XGL3520-301MECFIXED INDUCTOR 0.3UH SMD |
6,585 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 300 nH | ±20% | 14.1 A | 9.7A | Shielded | 4.8mOhm Max | - | 165MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
XGL3520-101MECFIXED INDUCTOR 0.1UH SMD |
5,912 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 100 nH | ±20% | 19.2 A | 15.9A | Shielded | 2.7mOhm Max | - | 360MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
