Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1107R4-R180-RFIXED IND 180NH |
1,176 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | 180 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CSEB0440H-4R7MSMD MOLDING POWER CHOKE |
1,495 |
|
Datasheet |
CSEB0440H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 6 A | 4.7A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
DRAP124-220-RFIXED IND 22UH 2.44A 86 MOHM SMD |
740 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.44 A | 4.16A | Shielded | 86mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
CSEB0420H-1R2MSMD MOLDING POWER CHOKE |
500 |
|
Datasheet |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 8.3 A | 6.7A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-1R5MSMD MOLDING POWER CHOKE |
500 |
|
Datasheet |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 8.1 A | 5.5A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
CSEB0430H-1R2MSMD MOLDING POWER CHOKE |
480 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 8.9 A | 8A | Shielded | 10.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0420H-1R0MSMD MOLDING POWER CHOKE |
387 |
|
Datasheet |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1 µH | ±20% | 8.6 A | 7A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0430H-3R3MSMD MOLDING POWER CHOKE |
250 |
|
Datasheet |
CSEB0430H | 2-SMD | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.3 A | 5A | Shielded | 25.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0430H-1R5MSMD MOLDING POWER CHOKE |
240 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 8.1 A | 7A | Shielded | 12.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0440H-3R3MSMD MOLDING POWER CHOKE |
240 |
|
Datasheet |
CSEB0440H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.6 A | 5.2A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
CSEB0430H-2R2MSMD MOLDING POWER CHOKE |
199 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7.6 A | 5.6A | Shielded | 19.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|

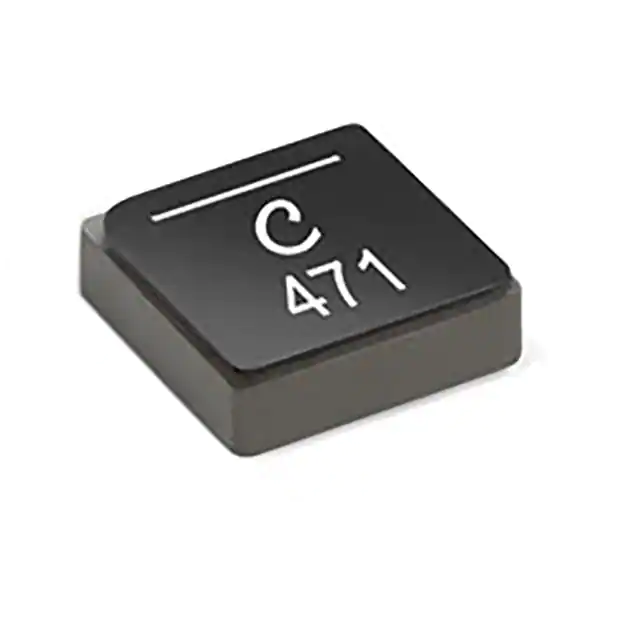

XGL4015-272MECFIXED INDUCTOR 2.7UH SMD |
41,269 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 2.7 µH | ±20% | 3.8 A | 4.5A | Shielded | 48.8mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-101MECFIXED INDUCTOR 0.1UH SMD |
12,226 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 100 nH | ±20% | 19 A | 24.5A | Shielded | 2.2mOhm Max | - | 260MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-471MECFIXED INDUCTOR 0.47UH SMD |
8,514 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 470 nH | ±20% | 9.6 A | 10.5A | Shielded | 7.5mOhm Max | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-301MECFIXED INDUCTOR 0.3UH SMD |
6,891 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 300 nH | ±20% | 11 A | 12.9A | Shielded | 5.7mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
XGL4015-102MECFIXED INDUCTOR 1UH SMD |
6,690 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 1 µH | ±20% | 6.5 A | 7.3A | Shielded | 18mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|

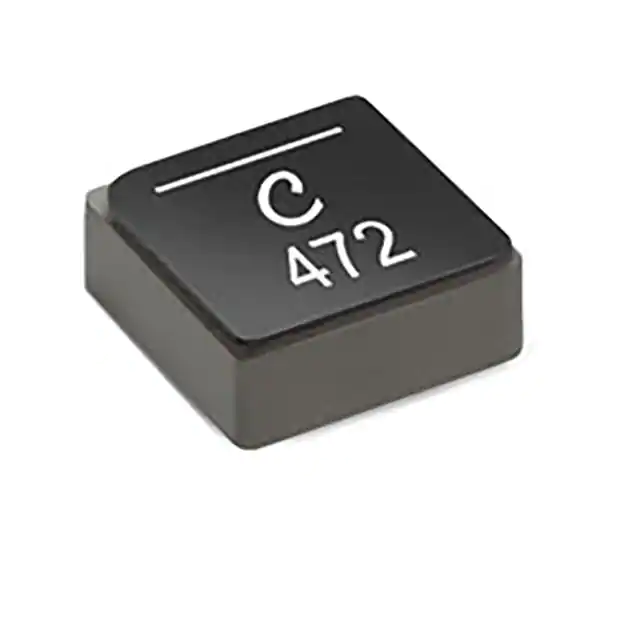

XGL4018-271MECFIXED INDUCTOR 0.27UH SMD |
6,628 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 270 nH | ±20% | 13 A | 14.7A | Shielded | 4mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-152MECFIXED INDUCTOR 1.5UH SMD |
5,982 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 1.5 µH | ±20% | 6 A | 6.4A | Shielded | 20.8mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-472MECFIXED INDUCTOR 4.7UH SMD |
5,913 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 4.7 µH | ±20% | 3.3 A | 3.4A | Shielded | 69.4mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4015-521MECFIXED INDUCTOR 0.52UH SMD |
5,910 |
|
Datasheet |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | 520 nH | ±20% | 8.8 A | 10.2A | Shielded | 9.6mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
