Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDS1608CF-154150UH SMD SHIELDD POWER INDUCTOR |
1,495 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 260 mA | - | Shielded | 590mOhm Max | 40 @ 100kHz | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-10610000UH SMD SHIELD POWR INDUCTOR |
1,225 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 mH | ±20% | 20 mA | - | Shielded | 32.8Ohm Max | 50 @ 100kHz | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-104100UH SMD SHIELDD POWER INDUCTOR |
545 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 300 mA | - | Shielded | 480mOhm Max | 40 @ 100kHz | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-2252200UH SMD SHIELDED PWR INDUCTOR |
150 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 mH | ±20% | 100 mA | - | Shielded | 8.5Ohm Max | 50 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

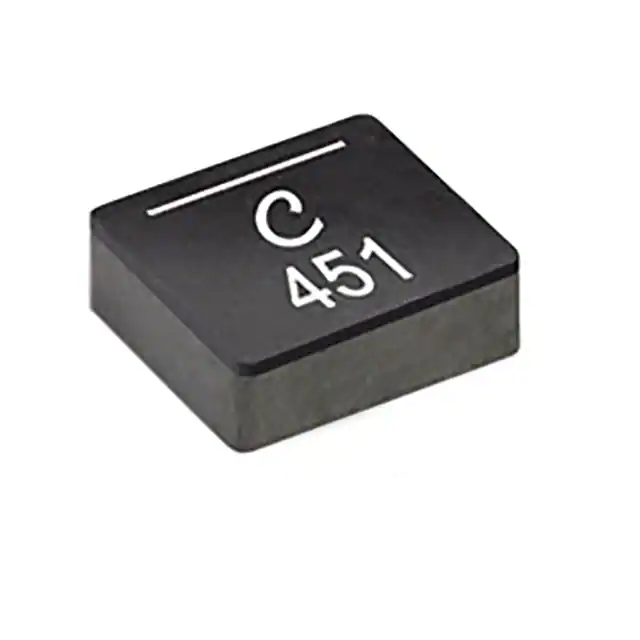

XGL3515-451MECFIXED INDUCTOR 0.45UH SMD |
16,462 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 450 nH | ±20% | 12.9 A | 7.4A | Shielded | 9.5mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
XGL3512-101MECFIXED INDUCTOR 0.1UH SMD |
7,490 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 100 nH | ±20% | 13.5 A | 15.2A | Shielded | 4mOhm Max | - | 305MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3515-331MECFIXED INDUCTOR 0.33UH SMD |
6,971 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 330 nH | ±20% | 14.8 A | 8.7A | Shielded | 7.4mOhm Max | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-101MECFIXED INDUCTOR 0.1UH SMD |
6,482 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 100 nH | ±20% | 16.8 A | 16.8A | Shielded | 2.8mOhm Max | - | 320MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-821MECFIXED INDUCTOR 0.82UH SMD |
5,807 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 820 nH | ±20% | 8.5 A | 5.3A | Shielded | 18.4mOhm Max | - | 82MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3512-401MECFIXED INDUCTOR 0.4UH SMD |
5,631 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 400 nH | ±20% | 7.7 A | 7.1A | Shielded | 14.2mOhm Max | - | 125MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3512-900MECFIXED INDUCTOR 0.09UH SMD |
5,145 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 90 nH | ±20% | 14.4 A | 16.4A | Shielded | 3.8mOhm Max | - | 330MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3515-182MECFIXED INDUCTOR 1.8UH SMD |
5,047 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 5.4 A | 3.3A | Shielded | 41.6mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-681MECFIXED INDUCTOR 0.68UH SMD |
4,920 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 9.5 A | 6.4A | Shielded | 13.3mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3512-201MECFIXED INDUCTOR 0.2UH SMD |
4,674 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 200 nH | ±20% | 11.3 A | 10A | Shielded | 7.3mOhm Max | - | 175MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3515-900MECFIXED INDUCTOR 0.09UH SMD |
4,443 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 90 nH | ±20% | 26.6 A | 17.8A | Shielded | 2.6mOhm Max | - | 350MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-561MECFIXED INDUCTOR 0.56UH SMD |
4,362 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 560 nH | ±20% | 10.9 A | 6.6A | Shielded | 11.8mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-181MECFIXED INDUCTOR 0.18UH SMD |
3,682 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 180 nH | ±20% | 20.4 A | 12.4A | Shielded | 4.1mOhm Max | - | 205MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-152MECFIXED INDUCTOR 1.5UH SMD |
3,423 |
|
Datasheet |
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 6.1 A | 3.9A | Shielded | 36.3mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3512-102MECFIXED INDUCTOR 1UH SMD |
3,182 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 1 µH | ±20% | 4.9 A | 4.5A | Shielded | 32.2mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3512-820MECFIXED INDUCTOR 0.082UH SMD |
3,015 |
|
Datasheet |
XGL3512 | Nonstandard | Strip | Active | Molded | - | 82 nH | ±20% | 15.7 A | 17.3A | Shielded | 3.3mOhm Max | - | 340MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
