Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS7341T-104MLDFIXED IND 100UH 1.15A 310MOHM SM |
8,631 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 100 µH | ±20% | 1.15 A | 540mA | Shielded | 310mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-223MLDFIXED IND 22UH 2.35A 82MOHM SM |
3,950 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 22 µH | ±20% | 2.35 A | 1.2A | Shielded | 82mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-473MLDFIXED IND 47UH 1.85A 155MOHM SM |
2,477 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 1.85 A | 800mA | Shielded | 155mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-153MLDFIXED IND 15UH 3A 55MOHM SM |
1,766 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 15 µH | ±20% | 3 A | 1.4A | Shielded | 55mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-683MLDFIXED IND 68UH 1.35A 250MOHM SM |
1,622 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 68 µH | ±20% | 1.35 A | 640mA | Shielded | 250mOhm Max | - | 9.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-474KLDFIXED IND 470UH 570MA 1.45OHM SM |
1,179 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±10% | 570 mA | 270mA | Shielded | 1.45Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
|
MSS7341T-273MLDFIXED IND 27UH 2.1A 109MOHM SM |
1,126 |
|
Datasheet |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 27 µH | ±20% | 2.1 A | 1A | Shielded | 109mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
|
PG0085.222NLFIXED IND 2.2UH 1.1A 46 MOHM SMD |
1,500 |
|
Datasheet |
PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 2.2 µH | ±20% | 1.1 A | 1.1A | Shielded | 46mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
|
PG0085.102NLFIXED IND 1UH 1.5A 33 MOHM SMD |
1,498 |
|
Datasheet |
PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 1 µH | ±20% | 1.5 A | 1.5A | Shielded | 33mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
CDRH70D45BT150NP-331MCFIXED IND 330UH 670MA 920MOHM SM |
693 |
|
Datasheet |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 670 mA | 510mA | Shielded | 920mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CSBL1060-150MSMD HIGH CURRENT POWER INDUCTOR |
398 |
|
Datasheet |
CSBL1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.6 A | 8.7A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.244" (6.20mm) |
|
MPXV1D1250L1R5FIXED IND 1.5UH 24.2A 3.6MOHM SM |
235 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 24.2 A | 32A | Shielded | 3.6mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

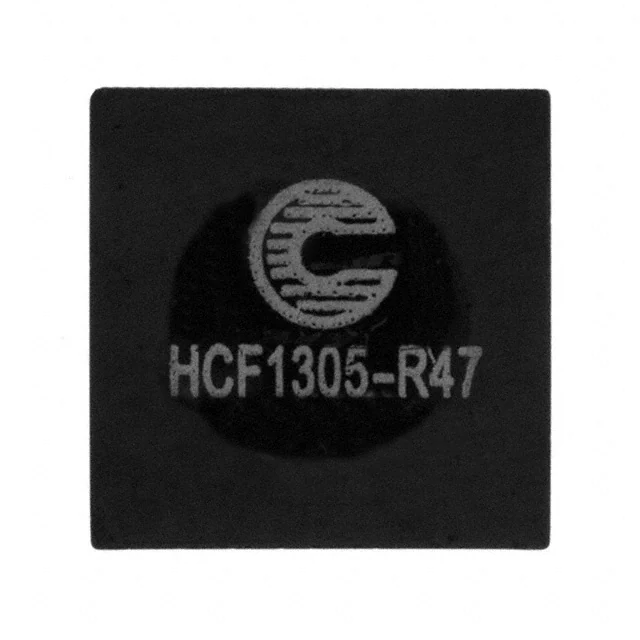

HCF1305-R47-RFIXED IND 470NH 32A 1 MOHM SMD |
2,733 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 32 A | 36A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SLC1480-441MLDFIXED IND 440NH 83A 0.18MOHM SM |
4,253 |
|
Datasheet |
SLC1480 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 440 nH | ±20% | 83 A | 35A | Shielded | 0.18mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
SLC1480-301MLDFIXED IND 300NH 83A 0.18MOHM SM |
3,572 |
|
Datasheet |
SLC1480 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 300 nH | ±20% | 83 A | 52A | Shielded | 0.18mOhm | - | 46MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
SLC1480-111MLDFIXED IND 110NH 83A 0.18MOHM SM |
1,114 |
|
Datasheet |
SLC1480 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 110 nH | ±20% | 83 A | 130A | Shielded | 0.18mOhm | - | 130MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
CTDS1608CF-3323.3UH SMD SHIELDED POWR INDUCTOR |
7,485 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.6 A | - | Shielded | 55mOhm Max | 40 @ 200kHz | 120MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-4724.7UH SMD SHIELDD POWER INDUCTOR |
4,875 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.4 A | - | Shielded | 60mOhm Max | 40 @ 200kHz | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-10310UH SMD SHIELDED POWER INDUCTOR |
2,530 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-4754700UH SMD SHIELD POWER INDUCTOR |
1,775 |
|
Datasheet |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 mH | ±20% | 60 mA | - | Shielded | 13.9Ohm Max | 50 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
