Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

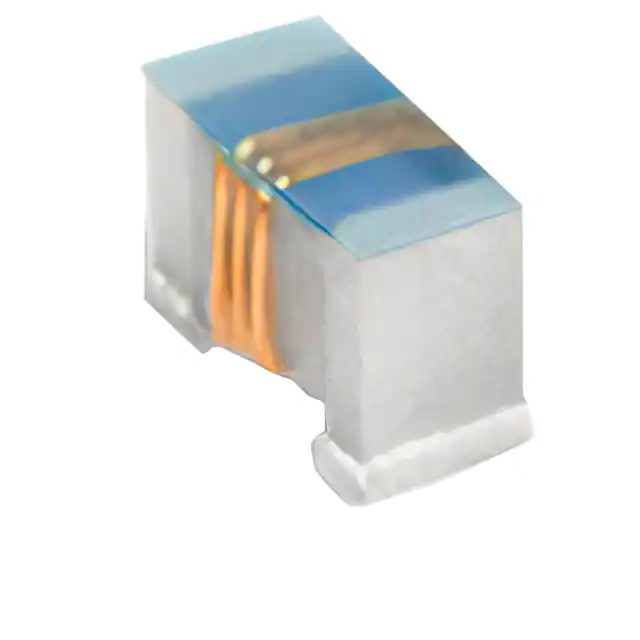

016008C-24NXJRWFIXED INDUCTOR 0.024UH SMD |
19,195 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 24 nH | ±5% | 100 mA | - | Unshielded | 1.55Ohm Max | 28 @ 900MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
0603LS-103XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
18,386 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 10 µH | ±2% | 180 mA | - | Unshielded | 4.8Ohm Max | 12 @ 2.5MHz | 25MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603LS-182XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
14,592 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 1.8 µH | ±2% | 350 mA | - | Unshielded | 1.1Ohm Max | 15 @ 7.9MHz | 80MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
016008C-5N1XJRWFIXED INDUCTOR 0.0051UH SMD |
14,336 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 5.1 nH | ±5% | 200 mA | - | Unshielded | 325mOhm Max | 31 @ 900MHz | 10GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-N45XKRWFIXED INDUCTOR 0.00045UH SMD |
13,978 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 450 pH | ±10% | 550 mA | - | Unshielded | 60mOhm Max | 37 @ 900MHz | 36GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-4N3XJRWFIXED INDUCTOR 0.0043UH SMD |
13,888 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 4.3 nH | ±5% | 265 mA | - | Unshielded | 190mOhm Max | 32 @ 900MHz | 10.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-N50XKRWFIXED INDUCTOR 0.0005UH SMD |
13,601 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 500 pH | ±10% | 445 mA | - | Unshielded | 75mOhm Max | 30 @ 900MHz | 36GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-15NXJRWFIXED INDUCTOR 0.015UH SMD |
13,443 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 15 nH | ±5% | 120 mA | - | Unshielded | 820mOhm Max | 27 @ 900MHz | 6.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
0805LS-102XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
13,246 |
|
Datasheet |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 1 µH | ±2% | 500 mA | - | Unshielded | 690mOhm Max | 20 @ 7.9MHz | 340MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
016008C-2N0XJRWFIXED INDUCTOR 0.002UH SMD |
13,235 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 2 nH | ±5% | 345 mA | - | Unshielded | 125mOhm Max | 34 @ 900MHz | 15.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-3N9XJRWFIXED INDUCTOR 0.0039UH SMD |
13,010 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 3.9 nH | ±5% | 275 mA | - | Unshielded | 230mOhm Max | 27 @ 900MHz | 11.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-10NXJRWFIXED INDUCTOR 0.01UH SMD |
12,917 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 10 nH | ±5% | 155 mA | - | Unshielded | 520mOhm Max | 31 @ 900MHz | 7.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
016008C-3N3XJRWFIXED INDUCTOR 0.0033UH SMD |
11,994 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 305 mA | - | Unshielded | 150mOhm Max | 34 @ 900MHz | 12.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
|
0603LS-822XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
10,893 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 8.2 µH | ±2% | 190 mA | - | Unshielded | 3.6Ohm Max | 15 @ 7.9MHz | 26MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603LS-471XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
10,472 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 470 nH | ±2% | 420 mA | - | Unshielded | 620mOhm Max | 15 @ 7.9MHz | 540MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0805LS-223XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
9,690 |
|
Datasheet |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 22 µH | ±2% | 150 mA | - | Unshielded | 6.18Ohm Max | 18 @ 2.5MHz | 13MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|

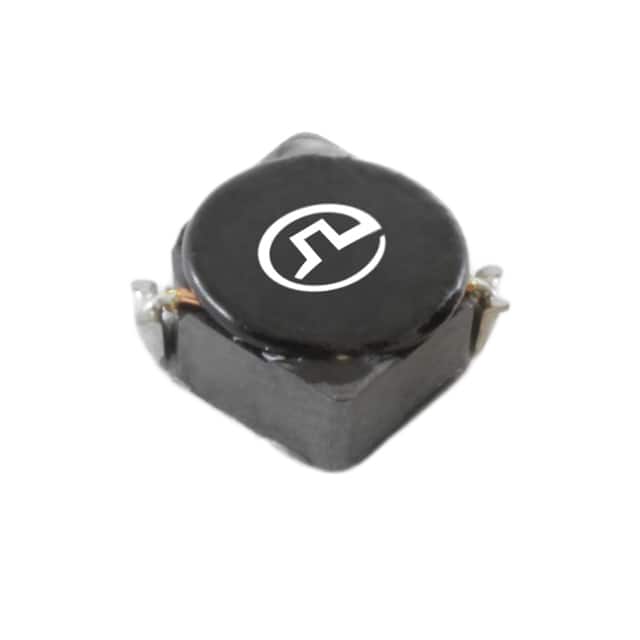

PA4322.224NLTFIXED IND 220UH 210MA 1.1OHM SMD |
8,913 |
|
Datasheet |
PA4322 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 210 mA | 180mA | Shielded | 1.1Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | 0.122" (3.10mm) |
|
|
0603LS-561XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
8,768 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 560 nH | ±2% | 550 mA | - | Unshielded | 440mOhm Max | 15 @ 7.9MHz | 525MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0603LS-181XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
8,464 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 180 nH | ±2% | 1.3 A | - | Unshielded | 150mOhm Max | 15 @ 7.9MHz | 950MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0603LS-682XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
8,192 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 6.8 µH | ±2% | 200 mA | - | Unshielded | 3.1Ohm Max | 15 @ 7.9MHz | 31MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
