Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DO3308P-103MLDFIXED IND 10UH 2.3A 85MOHM SM |
4,767 |
|
Datasheet |
DO3308P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 2.7A | Unshielded | 85mOhm Max | - | 37MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-154MLDFIXED IND 150UH 740MA 940MOHM SM |
4,110 |
|
Datasheet |
DO3308P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 740 mA | 740mA | Unshielded | 940mOhm | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-223MLDFIXED IND 22UH 1.5A 180MOHM SM |
3,429 |
|
Datasheet |
DO3308P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 1.8A | Unshielded | 180mOhm Max | - | 26MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-683MLDFIXED IND 68UH 700MA 540MOHM SM |
3,414 |
|
Datasheet |
DO3308 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 700 mA | 900mA | Unshielded | 540mOhm Max | - | 12MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-682MLDDO3308P-682 |
2,922 |
|
Datasheet |
DO3308P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.6 A | 3.9A | Unshielded | 60mOhm | - | 47MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-153MLDFIXED IND 15UH 1.5A 120MOHM SM |
2,750 |
|
Datasheet |
DO3308 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.5 A | 2A | Unshielded | 120mOhm Max | - | 33MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-224MLDFIXED IND 220UH 510MA 1.6OHM SM |
2,742 |
|
Datasheet |
DO3308P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 510 mA | 560mA | Unshielded | 1.6Ohm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-105MLDFIXED IND 1MH 50MA 7OHM SM |
2,671 |
|
Datasheet |
DO3308 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 50 mA | 100mA | Unshielded | 7Ohm Max | - | 2.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
DO3308P-473MLDFIXED IND 47UH 800MA 320MOHM SM |
1,422 |
|
Datasheet |
DO3308 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 800 mA | 1A | Unshielded | 320mOhm Max | - | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
FPD1110V2-R300-RFIXED INDUCTOR 32A |
4,696 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CTGS105F-121K120UH SMD UNSHLD POWER INDUCTOR |
1,000 |
|
Datasheet |
CTGS105F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±10% | - | 890mA | Unshielded | 400mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
MPCG1040LR56IND SMD METAL COMPOSITE |
2,120 |
|
Datasheet |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 560 nH | ±20% | 23 A | 23A | Shielded | 1.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DO3308P-684MLDFIXED IND 680UH 100MA 4.4OHM SM |
627 |
|
Datasheet |
DO3308 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 100 mA | 200mA | Unshielded | 4.4Ohm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CTCDRH74F-331M330UH SMD SHIELDED POWR INDUCTOR |
1,995 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | - | 320mA | Shielded | 1.9Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CT916CYF-101MSMD SHIELDED POWER INDUCTOR |
1,505 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | - | - | - | 397mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

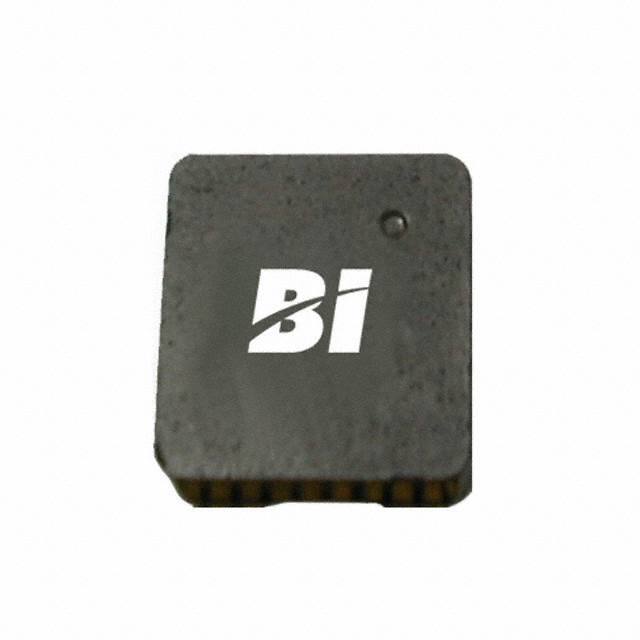

HM72A-063R3LFTR13FIXED IND 3.3UH 6.6A 28 MOHM SMD |
758 |
|
Datasheet |
HM72A | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 6.6 A | 13.5A | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
CSHB0530R-1R0MSMD MOLDING POWER CHOKE |
200 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 12.5 A | 14A | Shielded | 12.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPIAIG-F7020-R33M-TFIXED IND 330NH 19A 4.8 MOHM SMD |
3,513 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 19 A | 31A | Shielded | 4.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7020 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
ASPIAIG-F7020-R47M-TFIXED IND 470NH 17A 6.2 MOHM SMD |
2,204 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17 A | 25A | Shielded | 6.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7020 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
ASPIAIG-F7020-R27M-TFIXED IND 270NH 21A 3.5 MOHM SMD |
3,482 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 270 nH | ±20% | 21 A | 32A | Shielded | 3.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7020 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
