Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPS5015-225MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,247 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 2.2 mH | ±20% | 65 mA | 72mA | Shielded | 36Ohm Max | - | 2.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-154MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,245 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 150 µH | ±20% | 250 mA | 230mA | Shielded | 3.4Ohm Max | - | 9.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-333MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,212 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 33 µH | ±20% | 500 mA | 550mA | Shielded | 750mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-155MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,117 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.5 mH | ±20% | 90 mA | 80mA | Shielded | 25Ohm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-224MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,054 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 220 µH | ±20% | 220 mA | 200mA | Shielded | 4.5Ohm Max | - | 7.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-562MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,039 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 5.6 µH | ±20% | 1.1 A | 1.6A | Shielded | 175mOhm Max | - | 67MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-132MRCPOWER INDUCTOR, SHIELDED, 20% TO |
932 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.3 µH | ±20% | 1.7 A | 2.5A | Shielded | 65mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-472MRCPOWER INDUCTOR, SHIELDED, 20% TO |
756 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.6A | Shielded | 150mOhm Max | - | 73MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-564MRCPOWER INDUCTOR, SHIELDED, 20% TO |
606 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 560 µH | ±20% | 140 mA | 100mA | Shielded | 8.5Ohm Max | - | 4.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-474MRCPOWER INDUCTOR, SHIELDED, 20% TO |
602 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 470 µH | ±20% | 160 mA | 120mA | Shielded | 7.5Ohm Max | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-684MRCPOWER INDUCTOR, SHIELDED, 20% TO |
586 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 680 µH | ±20% | 130 mA | 100mA | Shielded | 10.6Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-334MRCPOWER INDUCTOR, SHIELDED, 20% TO |
566 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 330 µH | ±20% | 170 mA | 150mA | Shielded | 7.4Ohm Max | - | 5.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
CTCDRH125F-221M220UH SMD SHIELDED POWR INDUCTOR |
490 |
|
Datasheet |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | - | 800mA | Shielded | 400mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
VLF403215MT-1R5NFIXED IND 1.5UH 3.38A 36MOHM SMD |
435 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.38 A | 2.46A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
L101247A-100LFIXED IND 100NH 78A 0.125MOHM SM |
300 |
|
Datasheet |
L101247A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 78 A | 129A | Unshielded | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | 0.472" (12.00mm) |
|
|
L101247A-150LFIXED IND 150NH 78A 0.125MOHM SM |
300 |
|
Datasheet |
L101247A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 78 A | 84A | Unshielded | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | 0.472" (12.00mm) |
|

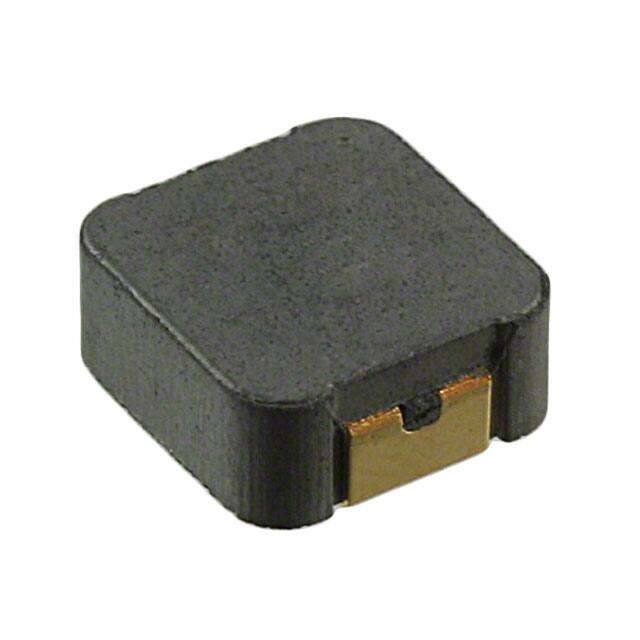

HM72B-066R8LFTR13FIXED IND 6.8UH 4.1A 68 MOHM SMD |
2,395 |
|
Datasheet |
HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 6.8 µH | ±20% | 4.1 A | 8A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
PF0601.333NLFIXED IND 33UH 590MA 345MOHM SMD |
2,365 |
|
Datasheet |
PF0601NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±20% | 590 mA | 590mA | Shielded | 345mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
HM72B-06R15LFTR13FIXED IND 150NH 23.3A 2.5 MOHM |
1,822 |
|
Datasheet |
HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 150 nH | ±20% | 23.3 A | 52A | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
.jpg)
|
AIRD-01-271KFIXED IND 270UH 1.6A 300 MOHM TH |
2,427 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.6 A | 4.1A | Unshielded | 300mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
