Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4309.105NLTFIXED IND 1MH 1.08A 3.915OHM SMD |
2,994 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 1.08 A | - | Unshielded | 3.915Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.104NLTFIXED IND 100UH 3.5A 405MOHM SMD |
2,594 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 3.5 A | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.103NLTFIXED IND 10UH 11A 52 MOHM SMD |
2,215 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 11 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
IHLE2020CDERR68M51IHLE-2020CD-51 .68 20% ER E3 |
1,985 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 11.3 A | 9.5A | Shielded | 9.74mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
SRP5030C-5R6MFIXED IND 5.6UH 3.6A 63 MOHM SMD |
1,691 |
|
Datasheet |
SRP5030C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 5.6 µH | ±20% | 3.6 A | 5A | Shielded | 63mOhm Max | 20 @ 100kHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
DO1608C-105MLCFIXED IND 1MH 150MA 13.8OHM SM |
1,370 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 150 mA | 100mA | Unshielded | 13.8Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SRP5030C-4R7MFIXED IND 4.7UH 4A 53 MOHM SMD |
1,001 |
|
Datasheet |
SRP5030C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 4.7 µH | ±20% | 4 A | 6A | Shielded | 53mOhm Max | 20 @ 100kHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|

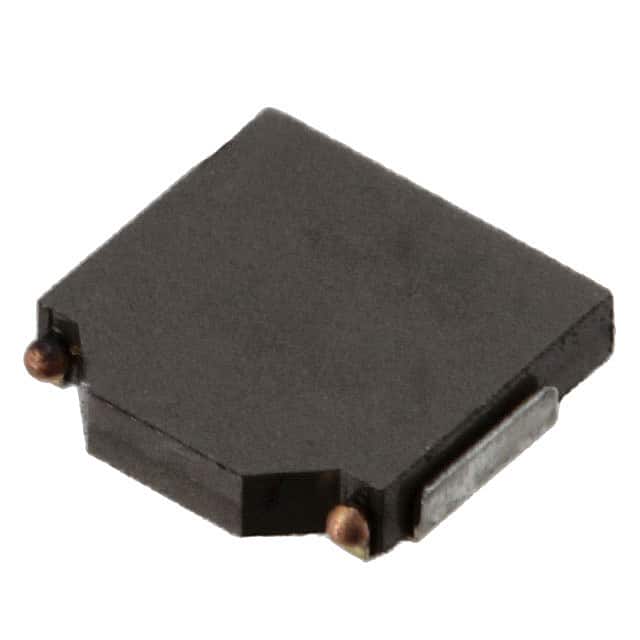

SPM5012T-1R0MFIXED IND 1UH 4.1A 44 MOHM SMD |
924 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 6.3A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
|
SRP5030C-100MFIXED IND 10UH 2.8A 122 MOHM SMD |
877 |
|
Datasheet |
SRP5030C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 10 µH | ±20% | 2.8 A | 2.8A | Shielded | 122mOhm Max | 20 @ 100kHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRP5030C-1R0MFIXED IND 1UH 10A 14 MOHM SMD |
756 |
|
Datasheet |
SRP5030C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 10 A | 12A | Shielded | 14mOhm Max | 20 @ 100kHz | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
DO1608C-822MLCFIXED IND 8.2UH 1.55A 160MOHM SM |
689 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 1.55 A | 1.15A | Unshielded | 160mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

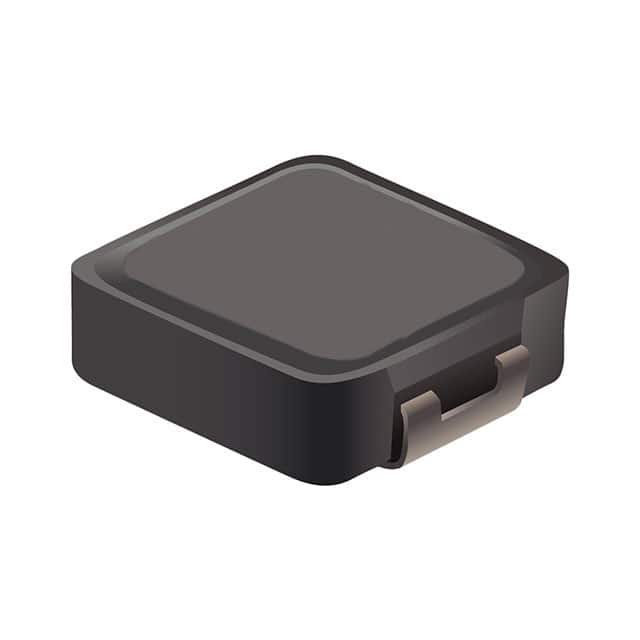

SRP1038C-1R5MFIXED IND 1.5UH 18A 5.3 MOHM SMD |
474 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 18 A | 35A | Shielded | 5.3mOhm Max | 15 @ 100kHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DO1608C-153MLCFIXED IND 15UH 1.25A 230MOHM SM |
346 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.25 A | 900mA | Unshielded | 230mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SPM5015T-R47MFIXED IND 470NH 7A 17.9 MOHM SMD |
321 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 7 A | 13.8A | Shielded | 17.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
|
SRP1038C-330MFIXED IND 33UH 4A 112 MOHM SMD |
261 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 33 µH | ±20% | 4 A | 6A | Shielded | 112mOhm Max | 20 @ 100kHz | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
PM4342.102NLTFIXED IND 1UH 18A 3.3 MOHM SMD |
174 |
|
Datasheet |
PM4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18 A | 36A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
SRP1038C-1R0MFIXED IND 1UH 20A 4 MOHM SMD |
150 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 20 A | 39A | Shielded | 4mOhm Max | 15 @ 100kHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
CLF12555T-100MFIXED IND 10UH 3.9A 25.2MOHM SMD |
126 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 6.7A | Shielded | 25.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|

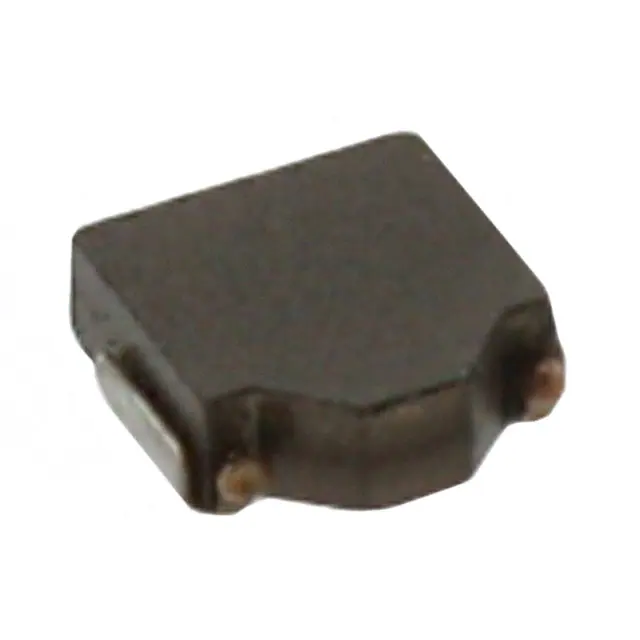

SPM3012T-3R3MFIXED IND 3.3UH 1.5A 210MOHM SMD |
1,748 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.5 A | 1.8A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRP1038C-R22MFIXED IND 220NH 40A 1 MOHM SMD |
1,702 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 220 nH | ±20% | 40 A | 75A | Shielded | 1mOhm Max | 15 @ 100kHz | 142MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
