Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

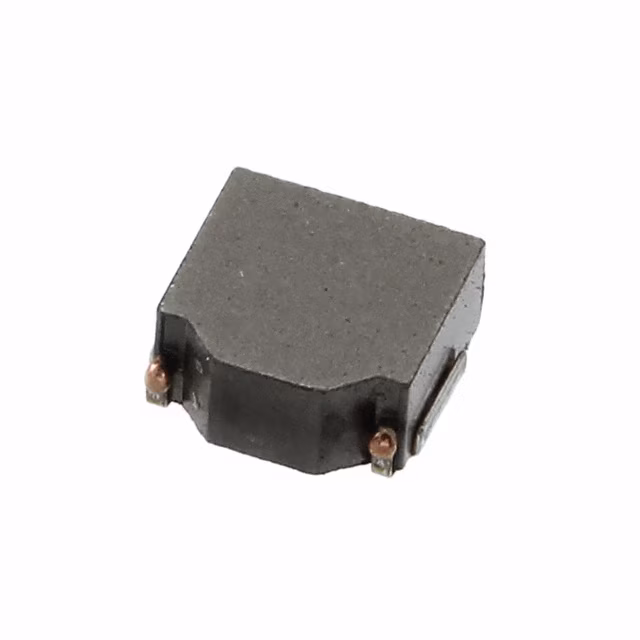

SPM4020T-2R2MFIXED IND 2.2UH 3.7A 70.4MOHM SM |
447 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.7 A | 3.8A | Shielded | 70.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SPM4015T-R68MFIXED IND 680NH SMD |
289 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SPM4020T-3R3MFIXED IND 3.3UH 3.6A 79.3MOHM SM |
216 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.6 A | 3.5A | Shielded | 79.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SPM4020T-1R0MFIXED IND 1UH 5A 34.7 MOHM SMD |
178 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5 A | 6.7A | Shielded | 34.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
DO1608C-103MLCFIXED IND 10UH 1.5A 160MOHM SM |
48,654 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.1A | Unshielded | 160mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-223MLCFIXED IND 22UH 950MA 370MOHM SM |
23,627 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 700mA | Unshielded | 370mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-473MLCFIXED IND 47UH 700MA 640MOHM SM |
22,494 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 500mA | Unshielded | 640mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-682MLCFIXED IND 6.8UH 1.6A 130MOHM SM |
20,072 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | 1.2A | Unshielded | 130mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-102MLCFIXED IND 1UH 2.7A 50MOHM SM |
17,142 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 2.7 A | 2.9A | Unshielded | 50mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-332MLCFIXED IND 3.3UH 2.2A 80MOHM SM |
15,342 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 2A | Unshielded | 80mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-472MLCFIXED IND 4.7UH 1.9A 90MOHM SM |
13,618 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 1.5A | Unshielded | 90mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-104MLCFIXED IND 100UH 500MA 1.27OHM SM |
6,662 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 500 mA | 310mA | Unshielded | 1.27Ohm Max | - | 9MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-222MLCFIXED IND 2.2UH 2.55A 70MOHM SM |
5,968 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 2.55 A | 2.3A | Unshielded | 70mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-333MLCFIXED IND 33UH 800MA 510MOHM SM |
5,904 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 580mA | Unshielded | 510mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-683MLCFIXED IND 68UH 600MA 860MOHM SM |
5,471 |
|
Datasheet |
DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 600 mA | 400mA | Unshielded | 860mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4309.102NLTFIXED IND 1UH 20A 19 MOHM SMD |
3,490 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 20 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.682NLTFIXED IND 6.8UH 13.5A 42MOHM SMD |
3,482 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 13.5 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.683NLTFIXED IND 68UH 4.2A 298 MOHM SMD |
3,468 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 4.2 A | - | Unshielded | 298mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.223NLTFIXED IND 22UH 7.5A 98 MOHM SMD |
3,465 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 7.5 A | - | Unshielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.474NLTFIXED IND 470UH 1.6A 1.755OHM SM |
3,034 |
|
Datasheet |
PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 1.6 A | - | Unshielded | 1.755Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
