Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIDMP-SP0740-100MFIXED IND 10UH SMD 4.8A 65MOHM |
2,010 |
|
Datasheet |
SIDMP-SP0740 | Nonstandard | Bulk | Active | Molded | - | 10 µH | ±20% | 4.8 A | 6A | Shielded | 65mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
0805CS-102XJRCFIXED IND 1UH 175MA 3.2OHM SM |
1,834 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 µH | ±5% | 175 mA | - | Unshielded | 3.2Ohm Max | 20 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-103XJRCFIXED IND 10UH 70MA 12OHM SM |
1,813 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 µH | ±5% | 70 mA | - | Unshielded | 12Ohm Max | 20 @ 10MHz | 60MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0603CS-8N7XJRWFIXED IND 8.7NH 700MA 109MOHM SM |
1,781 |
|
Datasheet |
0603CS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.7 nH | ±5% | 700 mA | - | Unshielded | 109mOhm Max | 28 @ 250MHz | 4.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
0805CS-122XJRCFIXED IND 1.2UH 156MA 3.5OHM SM |
1,618 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.2 µH | ±5% | 156 mA | - | Unshielded | 3.5Ohm Max | 22 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0603CS-51NXJRWFIXED IND 51NH 600MA 270MOHM SM |
1,594 |
|
Datasheet |
0603CS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 51 nH | ±5% | 600 mA | - | Unshielded | 270mOhm Max | 35 @ 200MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
0805CS-030XJRCFIXED IND 3.3NH 600MA 80MOHM SM |
1,563 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 50 @ 1.5GHz | 12.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-472XJRCFIXED IND 4.7UH 80MA 6.2OHM SM |
1,366 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 µH | ±5% | 80 mA | - | Unshielded | 6.2Ohm Max | 14 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
SRP5020C-100MFIXED IND 10UH 2.5A 190 MOHM SMD |
1,312 |
|
Datasheet |
SRP5020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 10 µH | ±20% | 2.5 A | 3.6A | Shielded | 190mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0603CS-24NXJRWFIXED IND 24NH 700MA 190MOHM SM |
1,279 |
|
Datasheet |
0603CS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 24 nH | ±5% | 700 mA | - | Unshielded | 190mOhm Max | 36 @ 250MHz | 2.65GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

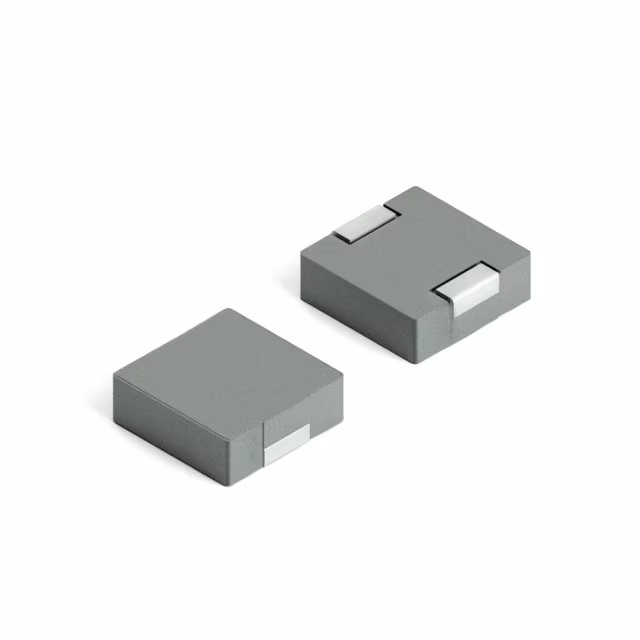

XFHCL6-R82MFIXED IND 820NH 16A 8 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 16 A | 24A | Shielded | 8mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R15MFIXED IND 150NH 26A 2.5 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | 180MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0805CS-430XJRCFIXED IND 43NH 500MA 340MOHM SM |
538 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 43 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
SRP7028C-220MFIXED IND 22UH 2.2A 180 MOHM SMD |
507 |
|
Datasheet |
SRP7028C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 22 µH | ±20% | 2.2 A | 3.6A | Shielded | 180mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

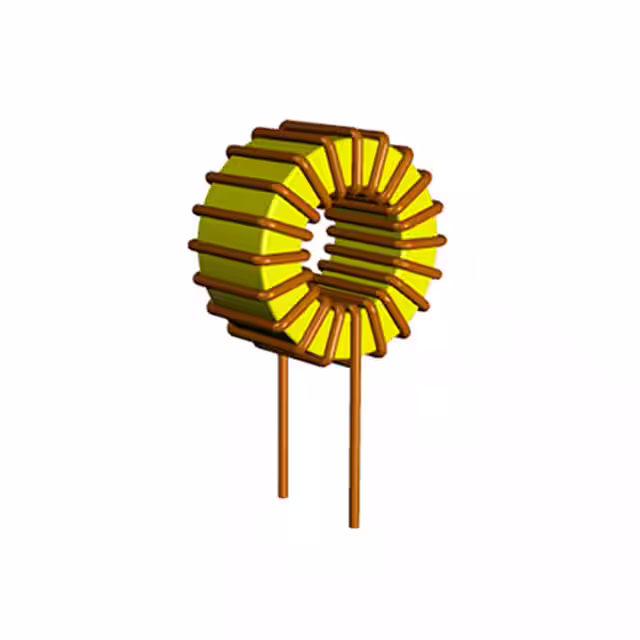

ATCA-02-290M-VFIXED IND 29UH 4A 20 MOHM TH |
2,523 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 29 µH | ±20% | 4 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" L x 0.492" W (22.00mm x 12.50mm) | - |
|
FP1107R1-R12-RFIXED IND 120NH 55A 0.29MOHM SMD |
4,464 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 55 A | 90A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|

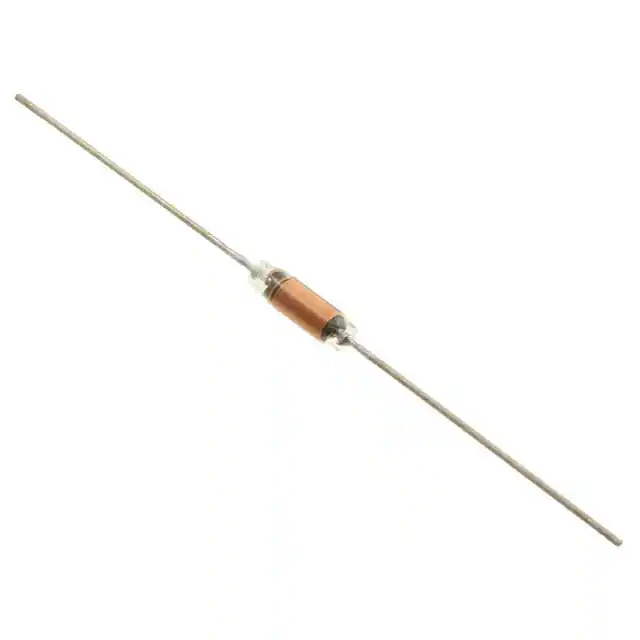

B82131A5302M000FIXED IND 2UH 3A 38 MOHM TH |
7,968 |
|
Datasheet |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 2 µH | ±20% | 3 A | - | Unshielded | 38mOhm | - | 147MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|

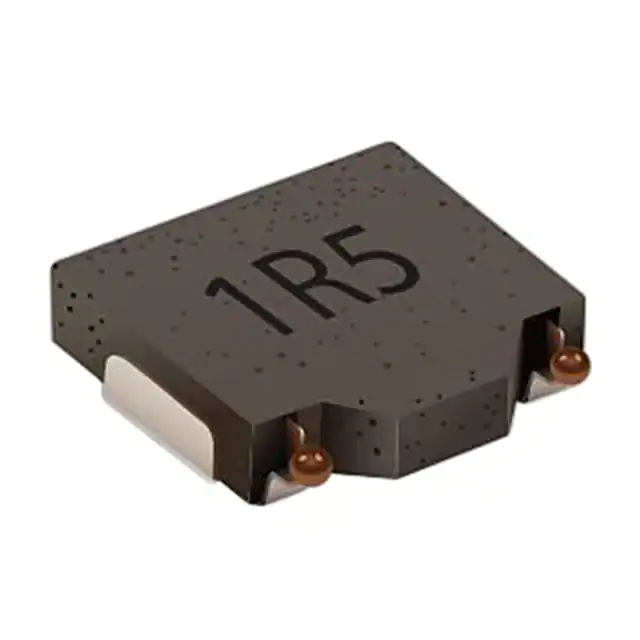

SRP0615-R68KFIXED IND 680NH 10.3A 11.2 MOHM |
1,695 |
|
Datasheet |
SRP0615 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 680 nH | ±10% | 10.3 A | 18A | Shielded | 11.2mOhm Max | 19 @ 25.2MHz | 56MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.059" (1.50mm) |
|
HM79-50270LFTR13FIXED IND 27UH 1.44A 100 MOHM |
879 |
|
Datasheet |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 27 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.157" (4.00mm) |
|
|
CSAC0750-R47MSMD MOLDING POWER CHOKE |
800 |
|
Datasheet |
CSAC0750 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 20 A | 24A | Shielded | 4.0mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.189" (4.80mm) |
