Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0603B2R2MPWFTFIXED IND 2.2UH 430MA 330MOHM SM |
2,125 |
|
Datasheet |
L-PWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 430 mA | - | Unshielded | 330mOhm | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
744762427AFIXED IND 27UH 95MA 6 OHM SMD |
2,000 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 95 mA | - | Unshielded | 6Ohm Max | 15 @ 2.52MHz | 21MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
L0805C220MDWITFIXED IND 22UH 170MA 3.7 OHM SMD |
1,886 |
|
Datasheet |
L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 170 mA | - | Unshielded | 3.7Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
WCI4532CPR33GDGCHIP IND 4532,330NH,G,80Q,0.85A, |
1,840 |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 330 nH | ±2% | 850 mA | - | Unshielded | 135mOhm Max | 80 @ 50MHz | 600MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
|
L0603B3R3MPWFTFIXED IND 3.3UH 130MA SMD |
1,731 |
|
Datasheet |
L-PWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 130 mA | - | Unshielded | - | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
L0603B220KDWFTFIXED IND 22UH 230MA 1 OHM SMD |
1,500 |
|
Datasheet |
L-DWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 230 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
B82432C1333J000FIXED IND 33UH 230MA 1.85OHM SMD |
5,000 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 230 mA | - | Unshielded | 1.85Ohm Max | 30 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
ASMPM-0806-2R2M-TFIXED IND 2.2UH 1.6A 168MOHM SMD |
1,272 |
|
Datasheet |
ASMPM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 µH | ±20% | 1.6 A | 2A | Unshielded | 168mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
PA4334.821NLTFIXED IND 820NH 2.47A 39MOHM SMD |
12,990 |
|
Datasheet |
PA4334.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 820 nH | ±30% | 2.47 A | 2.05A | Shielded | 39mOhm Max | - | 107MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ASMPM-0806-R47M-TFIXED IND 470NH 3.6A 40 MOHM SMD |
3,569 |
|
Datasheet |
ASMPM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 470 nH | ±20% | 3.6 A | 4A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
1210HS-393EMFSFIXED IND 39UH 110MA 3.9 OHM SMD |
4,000 |
|
Datasheet |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 110 mA | - | Unshielded | 3.9Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
1210HS-563EMFSFIXED IND 56UH 85MA 4.9 OHM SMD |
4,000 |
|
Datasheet |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 85 mA | - | Unshielded | 4.9Ohm | 25 @ 2.52MHz | 13MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
1210HS-393EKFSFIXED IND 39UH 110MA 3.9 OHM SMD |
3,750 |
|
Datasheet |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 110 mA | - | Unshielded | 3.9Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
PAS 201615F-102M1 MH UNSHIELDED WIREWOUND INDUCT |
3,595 |
|
Datasheet |
PAS201615F | 0806 (2016 Metric) | Cut Tape (CT) | Active | - | - | 1 mH | ±20% | 20 mA | - | Unshielded | 38Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.059" (1.50mm) |
|
|
PASU 3225V-132J1.34 MH UNSHIELDED WIREWOUND IND |
3,582 |
|
Datasheet |
PASU3225V | 1210 (3225 Metric) | Cut Tape (CT) | Active | Wirewound | - | 1.34 mH | ±5% | 50 mA | - | Unshielded | 42Ohm Max | 15 @ 125kHz | 1.5MHz | AEC-Q200 | -55°C ~ 125°C | 125 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
LQM2MPNR24MGHLFIXED IND 240NH 3.4A 25 MOHM SMD |
2,700 |
|
Datasheet |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 240 nH | ±20% | 3.4 A | 4.8A | Shielded | 25mOhm Max | - | 130MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
1210HS-473EMFSFIXED IND 47UH 100MA 4.3 OHM SMD |
2,615 |
|
Datasheet |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 100 mA | - | Unshielded | 4.3Ohm | 25 @ 2.52MHz | 15MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|

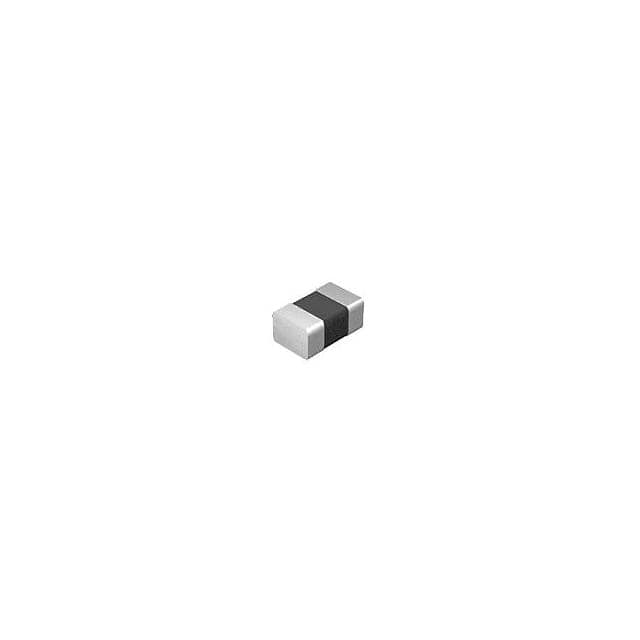

CTML1206F-2R7K2.7UH FER MULTIL SHLD INDUCTOR |
2,480 |
|
Datasheet |
CTML1206F | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 45MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
SPH252010HR68MTFIXED IND 680NH 2.1A 61MOHM SMD |
2,000 |
|
Datasheet |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.1 A | 3.1A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
PA4334.153NLTFIXED IND 15UH 710MA 468MOHM SMD |
1,936 |
|
Datasheet |
PA4334.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 15 µH | ±20% | 710 mA | 450mA | Shielded | 468mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
