Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-QF1N5DFFIXED IND 1.5NH 400MA 70MOHM SMD |
7,990 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 400 mA | - | Unshielded | 70mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
36401E0N8ATDFFIXED IND 0.8NH 700MA 150MOHM SM |
5,335 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.8 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 13 @ 500MHz | 14GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
PE-0805CM100JTTFIXED IND 10NH 600MA 100MOHM SMD |
12,143 |
|
Datasheet |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 100mOhm Max | 60 @ 500MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
AISM-1812-R27M-TFIXED IND 270NH 635MA 300MOHM SM |
1,021 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±20% | 635 mA | - | Unshielded | 300mOhm Max | 40 @ 25.2MHz | 180MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

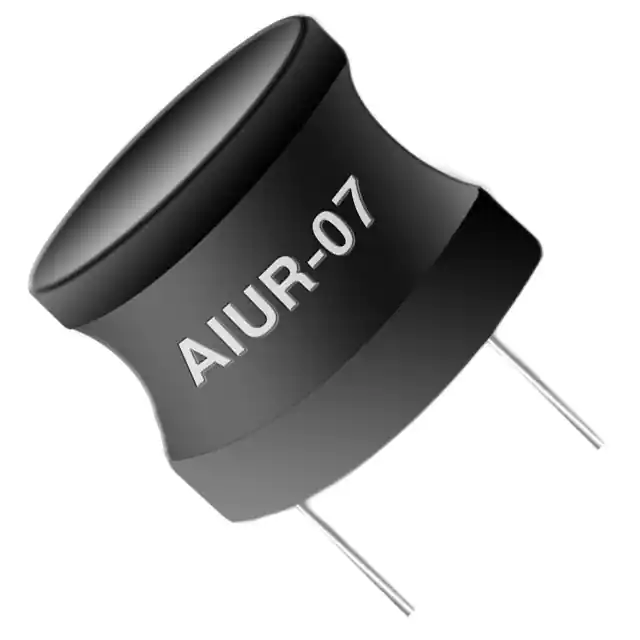

AIUR-07-221KFIXED IND 220UH 260MA 1.39OHM TH |
1,609 |
|
Datasheet |
AIUR-07 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 260 mA | 300mA | Unshielded | 1.39Ohm Max | 47 @ 1kHz | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.201" (5.10mm) |
|
HPC 8040NV-4R7MFIXED IND 4.7UH 5.3A 0.0195OHM |
4,945 |
|
Datasheet |
HPC-BMV/NV | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 5.3 A | 6A | Shielded | 19.5mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CTML0805F-R15K150NH FER MULTIL SHLD INDUCTOR |
3,989 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±10% | 250 mA | - | Shielded | 400mOhm Max | 20 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
AISM-1812-820K-TFIXED IND 82UH 120MA 7 OHM SMD |
3,983 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 120 mA | - | Unshielded | 7Ohm Max | 50 @ 2.52MHz | 8MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
ELJ-FCR22MFFIXED IND 220NH 190MA 700MOHM SM |
3,090 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 190 mA | - | Unshielded | 700mOhm Max | 25 @ 25.2MHz | 230MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
HPC 8040NV-100MFIXED IND 10UH 4.2A 0.033OHM SMD |
2,909 |
|
Datasheet |
HPC-BMV/NV | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 4.3A | Shielded | 33mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
PE-0805CM151JTTFIXED IND 150NH 350MA 560MOHM SM |
2,155 |
|
Datasheet |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 350 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
AISM-1812-5R6K-TFIXED IND 5.6UH 300MA 1.1OHM SMD |
2,000 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 33MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
AISM-1812-821K-TFIXED IND 820UH 30MA 43 OHM SMD |
2,086 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 30 mA | - | Unshielded | 43Ohm Max | 30 @ 796kHz | 2.5MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
AISM-1812-390K-TFIXED IND 39UH 150MA 4.5 OHM SMD |
1,484 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 150 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
THMC0503SP-220MG-DIND 22UH 160MOHM 2.7A |
2,000 |
|
Datasheet |
THMC0503SP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 22 µH | ±20% | 2.7 A | 3.1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
380NB-68NM=P2FIXED IND 68NH 320MA 290MOHM SMD |
15,035 |
|
- |
32CS | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 68 nH | ±20% | 320 mA | - | Unshielded | 290mOhm Max | 26 @ 100MHz | 550MHz | - | -25°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.134" L x 0.106" W (3.40mm x 2.70mm) | 0.094" (2.40mm) |
|
|
ELJ-QF39NGFFIXED IND 39NH 150MA 1.7 OHM SMD |
13,549 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 39 nH | ±2% | 150 mA | - | Unshielded | 1.7Ohm Max | 10 @ 100MHz | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
L0603B100KPWFTFIXED IND 10UH 200MA 1.2 OHM SMD |
12,792 |
|
Datasheet |
L-PWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 200 mA | - | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
IWC1008ER22R-3GFIXED IND 220NH 500MA 0.84OHM SM |
10,000 |
|
Datasheet |
IWC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±2% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.106" W (2.92mm x 2.70mm) | 0.088" (2.23mm) |
|
|
IWC1008FR18R-3GFIXED IND 180NH 620MA 0.77OHM SM |
10,000 |
|
Datasheet |
IWC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±2% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.106" W (2.92mm x 2.70mm) | 0.088" (2.23mm) |
