Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IWC0805E39NR-3GFIXED IND 39NH 500MA 0.29OHM SMD |
10,000 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 39 nH | ±2% | 500 mA | - | Unshielded | 290mOhm Max | 60 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805D82NR-3GFIXED IND 82NH 400MA 0.42OHM SMD |
9,990 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±2% | 400 mA | - | Unshielded | 420mOhm Max | 65 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805E22NR-3GFIXED IND 22NH 500MA 0.22OHM SMD |
9,975 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 22 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805DR10R-3GFIXED IND 100NH 400MA 0.46OHM SM |
9,700 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±2% | 400 mA | - | Unshielded | 460mOhm Max | 65 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805E68NR-3GFIXED IND 68NH 500MA 0.38OHM SMD |
9,640 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 68 nH | ±2% | 500 mA | - | Unshielded | 380mOhm Max | 60 @ 500MHz | 1.35GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805DR15R-3GFIXED IND 150NH 400MA 0.56OHM SM |
9,350 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805E47NR-3GFIXED IND 47NH 500MA 0.31OHM SMD |
9,000 |
|
Datasheet |
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±2% | 500 mA | - | Unshielded | 310mOhm Max | 60 @ 500MHz | 1.6GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
ELJ-RF9N1ZFBFIXED IND 9.1NH 320MA 380MOHM SM |
7,765 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 9.1 nH | ±0.2nH | 320 mA | - | Unshielded | 380mOhm Max | 8 @ 100MHz | 3.1GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
AIAP-01-1R0K-TFIXED IND 1UH 3.3A 30 MOHM TH |
2,204 |
|
Datasheet |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±10% | 3.3 A | - | Unshielded | 30mOhm Max | - | 190MHz | - | -40°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
0805CS-472EKFSFIXED IND 4.7UH 200MA 2.1OHM SMD |
5,996 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 200 mA | - | Unshielded | 2.1Ohm | 15 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.71mm) | 0.057" (1.45mm) |
|
|
AIAP-01-820K-TFIXED IND 82UH 580MA 600 MOHM TH |
2,171 |
|
Datasheet |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | 580 mA | - | Unshielded | 600mOhm Max | - | 4.1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

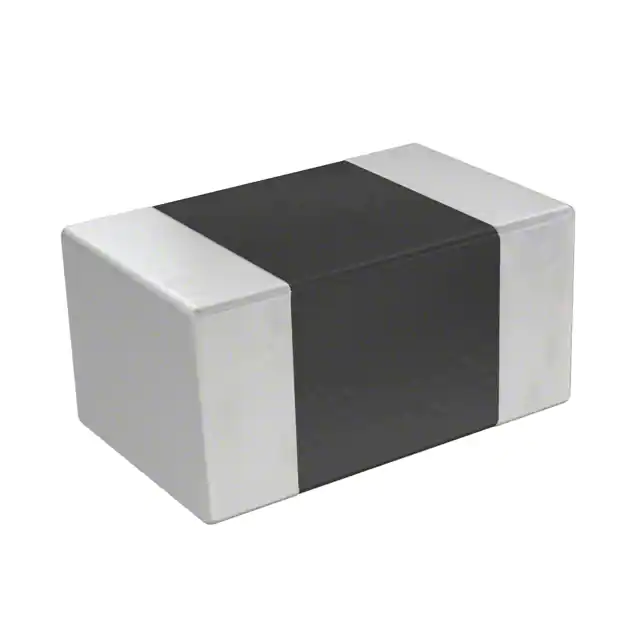

MLP2012V1R0TT0S1FIXED IND 1UH 700MA 260 MOHM SMD |
4,112 |
|
Datasheet |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 700 mA | - | Shielded | 260mOhm | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
|
ELG-TEA3R3NAFIXED IND 3.3UH 800MA 250MOHM SM |
3,245 |
|
Datasheet |
ELGTEA | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±30% | 800 mA | - | Shielded | 250mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
PS1608MT2R2FIXED IND 2.2UH 1.8A 50 MOHM SMD |
4,000 |
|
Datasheet |
PS | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.8 A | 920mA | Shielded | 50mOhm Max | 40 @ 200kHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.179" W (6.60mm x 4.54mm) | 0.115" (2.92mm) |
|
0805CT-472EJFSFIXED IND 4.7UH 400MA 1.9OHM SMD |
3,996 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 400 mA | - | Unshielded | 1.9Ohm | 15 @ 7.96MHz | 65MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.039" (1.00mm) |
|
744760239AFIXED IND 390NH 210MA 2.2OHM SMD |
2,000 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 210 mA | - | Unshielded | 2.2Ohm Max | 45 @ 250MHz | 780MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
NLV25T-R12J-EFDFIXED IND 120NH 550MA 300MOHM SM |
1,102 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 550 mA | - | Unshielded | 300mOhm Max | 30 @ 25.2MHz | 700MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
SM1608A-R68MHFFIXED IND 680NH 7A 13.5MOHM SMD |
18,000 |
|
Datasheet |
SM1608A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 7 A | 9A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.236" (6.00mm) |
|
ELJ-QF6N8JFFIXED IND 6.8NH 320MA 300MOHM SM |
4,714 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 6.8 nH | ±5% | 320 mA | - | Unshielded | 300mOhm Max | 10 @ 100MHz | 4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ASPI-0310FS-100M-T2FIXED IND 10UH 900MA 350MOHM SMD |
4,832 |
|
Datasheet |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 900 mA | 600mA | Shielded | 350mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
