Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV25T-8R2J-EFFIXED IND 8.2UH 160MA 3.05OHM SM |
4,605 |
|
Datasheet |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 160 mA | - | Unshielded | 3.05Ohm Max | 25 @ 2.52MHz | 36MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

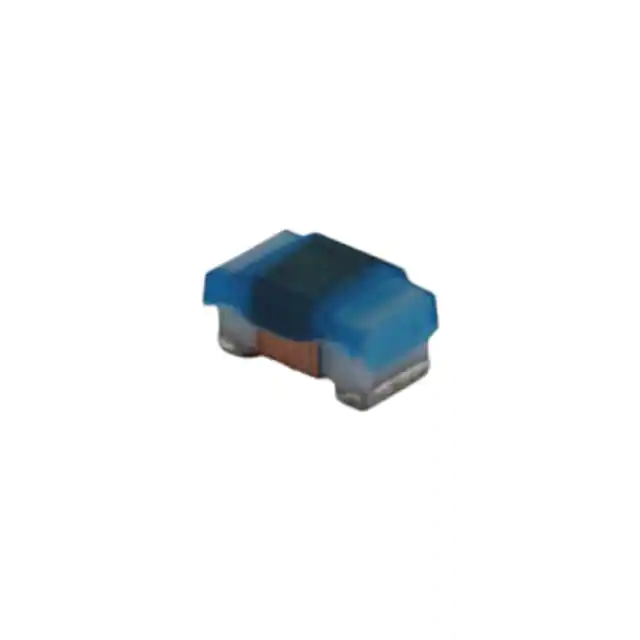

WCLA1608V1-680-RFIXED IND 68NH 600MA 340MOHM SMD |
4,429 |
|
Datasheet |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm Max | 36 @ 200MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
SDWL1608C5N6CSTFM11FIXED IND 5.6NH 900MA 45MOHM SMD |
2,900 |
|
Datasheet |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±0.2nH | 900 mA | - | Unshielded | 45mOhm Max | 38 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
74479876210CFIXED IND 1UH 1.8A 75 MOHM SMD |
2,099 |
|
- |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.8 A | 1.8A | Shielded | 75mOhm | 15 @ 1MHz | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDCL1V2010-R47N-RIND 0.47 UH 2.4A SMT |
1,978 |
|
Datasheet |
SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±30% | 2.3 A | 2.4A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|
TMIM 322512A-4R7MG4.7 UH SHIELDED MOLDED INDUCTOR |
1,945 |
|
Datasheet |
TMIM322512A | 1210 (3225 Metric) | Cut Tape (CT) | Active | Molded | - | 4.7 µH | ±20% | 1.9 A | 2.4A | Unshielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMIM 322512A-2R2MG2.2 UH SHIELDED MOLDED INDUCTOR |
1,929 |
|
Datasheet |
TMIM322512A | 1210 (3225 Metric) | Cut Tape (CT) | Active | Molded | - | 2.2 µH | ±20% | 3.6 A | 4.3A | Unshielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NLFV25T-150K-PFFIXED IND 15UH 130MA 900MOHM SMD |
1,764 |
|
Datasheet |
NLFV | Nonstandard | Tape & Reel (TR) | Last Time Buy | Wirewound | - | 15 µH | ±10% | 130 mA | - | Shielded | 900mOhm Max | 10 @ 2.52MHz | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
TMIM 322512A-1R0MG1.0 UH SHIELDED MOLDED INDUCTOR |
1,734 |
|
Datasheet |
TMIM322512A | 1210 (3225 Metric) | Cut Tape (CT) | Active | Molded | - | 1 µH | ±20% | 5 A | 5.7A | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
OWINR5040-3R3FIXED IND 3.3UH 4.0A 33 MOHM SMD |
1,500 |
|
Datasheet |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | - | 3.4 A | 3.95A | Semi-Shielded | 31mOhm | - | 32MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-4R7FIXED IND 4.7UH 3.5A 42 MOHM SMD |
1,481 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 4.7 µH | - | 3 A | 3.5A | Semi-Shielded | 39mOhm | - | 28MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-270FIXED IND 27UH 1.4A 200 MOHM SMD |
1,400 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 27 µH | - | 1.2 A | 1.4A | Semi-Shielded | 208mOhm | - | 10MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-100FIXED IND 10UH 2.3A 78 MOHM SMD |
1,384 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 10 µH | - | 2.1 A | 2.35A | Semi-Shielded | 83mOhm | - | 18MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-470FIXED IND 47UH 1.1A 370 MOHM SMD |
1,381 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 47 µH | - | 1 A | 1.1A | Semi-Shielded | 354mOhm | - | 7MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-150FIXED IND 15UH 2.0A 104 MOHM SMD |
1,289 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 15 µH | - | 2 A | 2A | Semi-Shielded | 112mOhm | - | 13MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
OWINR5040-2R2FIXED IND 2.2UH 4.9A 26 MOHM SMD |
1,258 |
|
Datasheet |
- | 2020 (5050 Metric) | Cut Tape (CT) | Active | Molded | Ferrite | 2.2 µH | - | 3.8 A | 4.9A | Semi-Shielded | 25mOhm | - | 50MHz | - | -40°C ~ 125°C | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
AIUR-11-103KFIXED IND 10MH 76MA 20.4 OHM TH |
3,155 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 76 mA | 130mA | Unshielded | 20.4Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
IWC0402D27NR-3GFIXED IND 27NH 400MA 0.4OHM SMD |
35,966 |
|
Datasheet |
IWC0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±2% | 400 mA | - | Unshielded | 400mOhm Max | 24 @ 250MHz | 2.48GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
|
IWC0402A47NR-3GFIXED IND 47NH 150MA 0.83OHM SMD |
20,000 |
|
Datasheet |
IWC0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±2% | 150 mA | - | Unshielded | 830mOhm Max | 20 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
|
IWC0402D33NR-3GFIXED IND 33NH 400MA 0.45OHM SMD |
20,000 |
|
Datasheet |
IWC0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | 400 mA | - | Unshielded | 450mOhm Max | 24 @ 250MHz | 2.35GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
